Has anyone ran into a macro error that states it can't find a tool that doesn't exist?
For example, I have a macro that works find in and of itself. But when I connect another data set to it, it states it cant find a tool that doesn't exist. The exact language is "The Designer x64 reported: Can't find ToolID == 12." But there is no tool with ID of 12 in the macro workflow.
I've attached the macro in case needed.
Solved! Go to Solution.
- Labels:
- Error Message
- Macros
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
It's possible that the XML in workflow that you are adding the macro to got corrupted. You can copy and paste all the tools into a new workflow to clear that up.
Stephen Ruhl
Principal Customer Support Engineer
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Thanks Sruhl. now it says it can't find tools that actually exist. I open up the macro, click on the tool (but don't actually do anything) and save it. I then rerun and the message is that it can't find another tool.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @jbh1128d1,

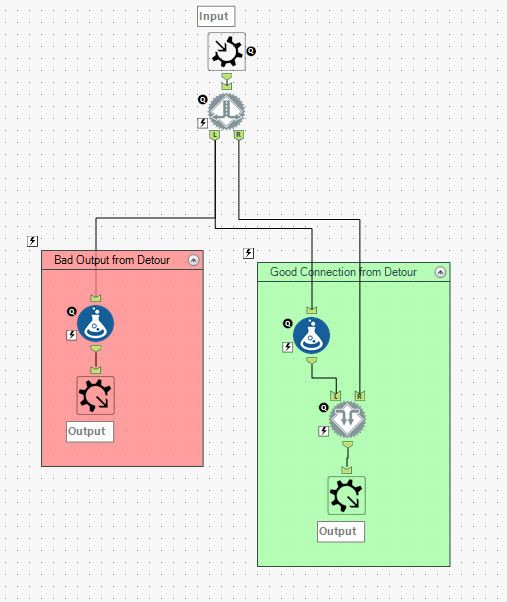

Can you post an image of the workflow? My guess is you may have a Detour tools contained in it. If all of the tools that are connected to the Detour Input don't terminate at the Detour Output it can cause an error where it can't find the tool.Ex: Detour Connections for a macro
If you delete just the macro output alone connected to the bad end it should fix it. Then you will need to figure out how to run both streams of data through the same Detour End tool and separate them back out after.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @jbh1128d1,
The above shows a generic example, but I was able to replace the Detour in your example. The saved version of this is in 11.7.

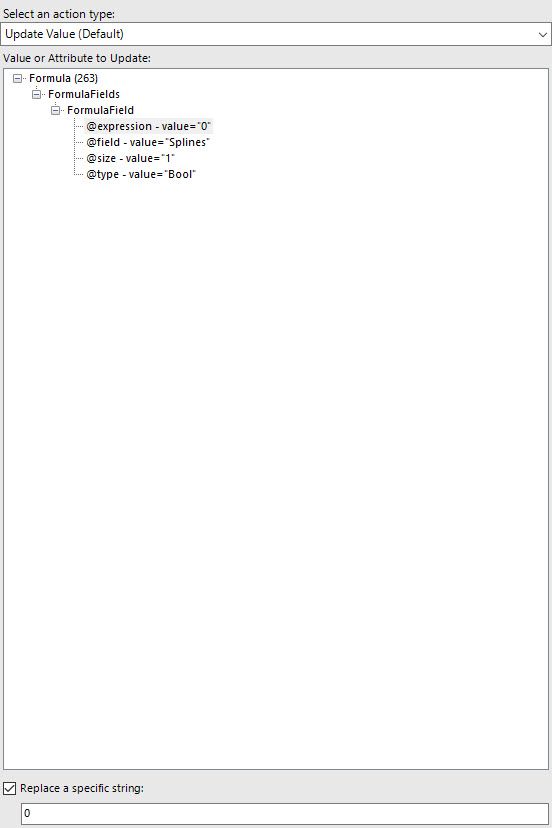

What you can do is substitute with a formula and set it to a new variable "Splines". The action and Check box can preform substitutions on this formula and then the filter will move the data to the correct section of the process. The select tools are just used to remove the filtering field. You may want to test this flow, without data I didn't have a quick way to make sure the results tested correctly.
*The interface settings are under View in the toolbar.
Interface Changes
Debugging Location-Inface Settings
Workflow Reworked
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @jbh1128d1,
The above shows a generic example, but I was able to replace the Detour in your example. The saved version of this is in 11.7.
What you can do is substitute with a formula and set it to a new variable "Splines". The action and Check box can preform substitutions on this formula and then the filter will move the data to the correct section of the process. The select tools are just used to remove the filtering field. You may want to test this flow, without data I didn't have a quick way to make sure the results tested correctly.
*The interface settings are under View in the toolbar.
Interface Changes
Debugging Location-Inface Settings
Workflow Reworked
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Thank you @andrewdatakim. I've ran this and I keep getting an error at the formula tool you added. The error reads:
Tool #263: Parse Error at char(0): Unknown variable "True" (Expression #1)
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @andrewdatakim. I just added a detour end and it worked great. Thank you.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @jbh1128d1,
To use the first solution you may have to transition the Check Box action to a formula to convert (IF [#1]='TRUE' THEN 1 ELSE 0 ENDIF) or convert the the formula and filter below it to respond to text.
I am happy the detour worked for you.
Regards,
Andrew
