I am trying to use Alteryx to generate rows, preferably blank (but I can make them blank if need by) so that the total count of my rows is divisible by 7. Here is my method:
1. use summarize to determine the largest row ID
2. join a formula tool and add 1 to it

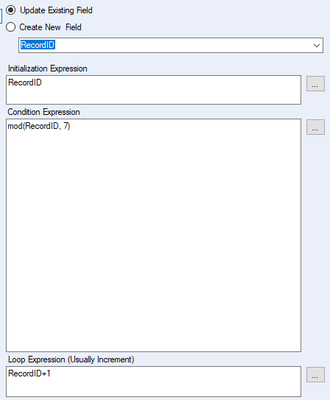

3. join generate rows and configure as follows:

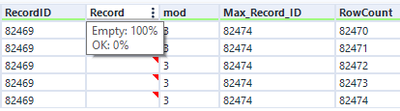

but, this cuts off 1 short of 7. Ex: my max row is 82469. I add 1 to it and run the generate rows tool. I get the following:
It should stop at 82474 (82474/7 = 11782). How can I fix this? thanks
Solved! Go to Solution.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @alexlyle
The 'Condition Expression' part of the Generate Rows tool needs an expression which evaluates to either True or False. The expression you have entered is not designed to create a True or False result, so will not produce the desired result.
The clearest way to do this is to add a Formula tool, and to calculate your target number of rows before the Generate Rows tool. I used the expression: [Max Row] + 7 - Mod([Max Row],7). In the Generate Rows tool, you can then use the Condition Expression [RowCount] <= [New Max Row] to tell it when to stop generating. See attached example.
To explain the result you are seeing: False can also be written as 0. When the result of your MOD expression is a number higher than 0, it continues generating rows. When you reach your target number and the MOD is 0, Alteryx reads this as 'False' and stops creating rows.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Thanks Hannah,
Now, I'm trying to figure out how to get mod to increase incrementally- go 3,4,5,6,7. I'm trying multirow formula with no luck. any suggestions?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @alexlyle,

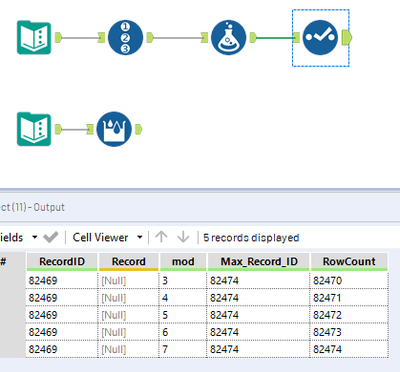

I've got two ways for you to get to that outcome - personally i prefer the first, however the second is the way you could do it with the multi-row formula tool:
If this solves your issue please mark the answer as correct, if not let me know! I've attached my workflow for you to download if needed.
Regards,
Jonathan
