This is a series of blogs that shows how one can use AI with Alteryx. This article focuses on workflow XML analysis with AI chatbots, transforming that underlying data into documentation and insights!
Understanding Alteryx Workflows and XML Structure
What is an Alteryx Workflow?
“A workflow consists of connected tools that perform different functions to process data. When you build a workflow, you add and connect tools.” - Alteryx Help

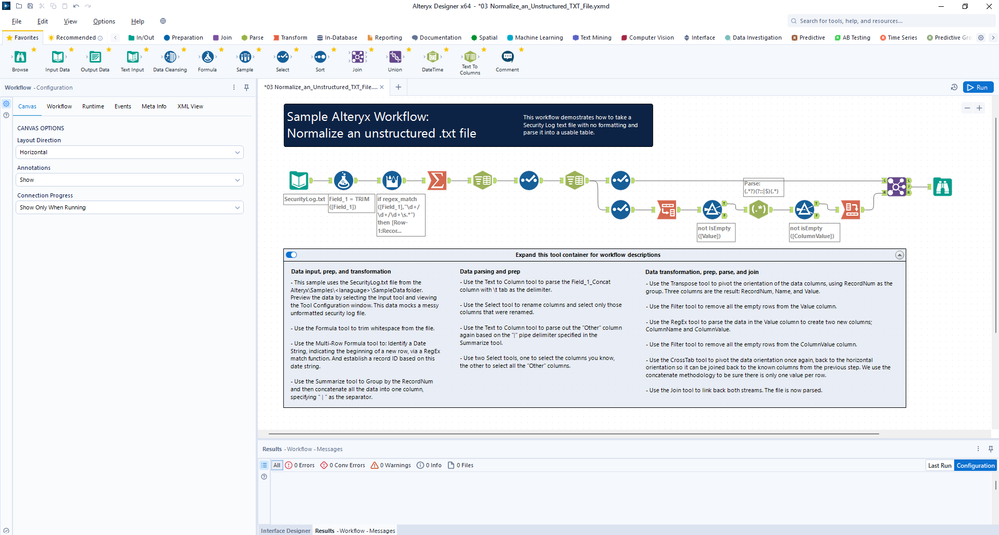

Source: Alteryx Designer Sample Workflow - 03 Normalize_an_Unstructured_TXT_File
As the definition above explains, a workflow is simply a canvas for users to interact with as a visual representation of a data process that automates the extraction, transformation, and loading (ETL) of data. It consists of a sequence of interconnected tools that each perform specific tasks, allowing users to efficiently clean, analyze, and visualize their data.
Overview of XML in Alteryx
XML (eXtensible Markup Language) is a markup language designed to store and transport data. It is both human-readable and machine-readable, making it an ideal choice for data interchange between systems. XML allows users to define their own tags, enabling them to create a structured format that is flexible and adaptable to various needs.
Key Features of XML
- Self-Descriptive: XML documents are structured in a way that describes the data they contain. Each piece of data is enclosed within tags, which provide context and meaning.
- Hierarchical Structure: XML organizes data in a tree-like structure, where elements can contain other elements (nested elements). This hierarchy makes it easy to represent complex data relationships.
- Platform-Independent: XML is not tied to any specific programming language or platform, allowing it to be used across different systems and applications. This makes it a popular choice for data exchange between disparate systems.
- Extensible: Users can create their own tags and define their own data structures, making XML highly customizable to meet specific requirements.
- Supports Unicode: XML supports a wide range of characters, allowing it to represent text in virtually any language.
Common Uses of XML
- Data Interchange: XML is widely used for transferring data between systems, particularly in web services and APIs.
- Configuration Files: Many applications use XML files to store configuration settings, enabling easy modification and readability.
- Document Storage: XML can be used to store structured documents, such as invoices or reports, where data needs to be organized in a specific format.
In the context of Alteryx, XML plays a crucial role in defining workflows. Alteryx workflows are saved as XML files, which capture the configuration of tools, their connections, and the data flow within the workflow. This structured representation allows for easy analysis, documentation, and modification of workflows.

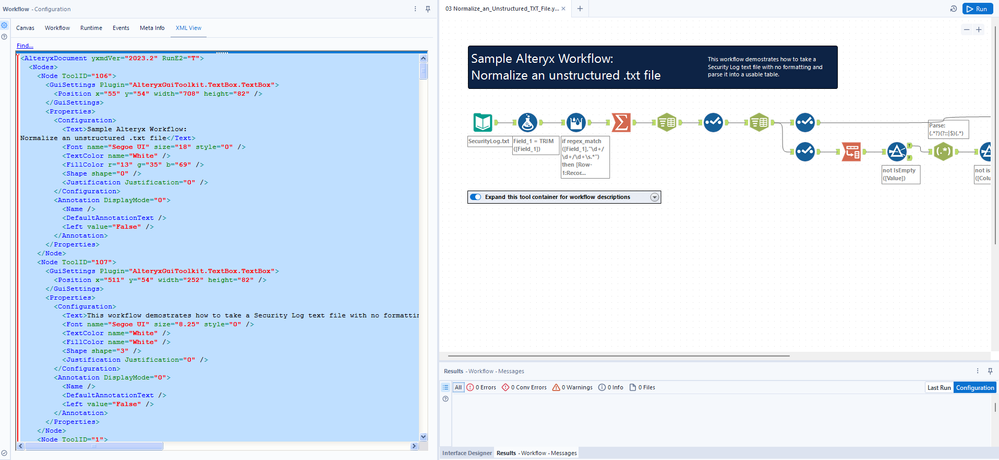

Source: Alteryx Designer Sample Workflow - 03 Normalize_an_Unstructured_TXT_File XML view
For instructions and a guide on XML itself with Alteryx, here is an excellent blog post by my fellow ACE @cplewis90
For an in-depth look at the XML structure of Alteryx workflows, the Data School wrote a great introductory piece here.
Leveraging AI for XML Analysis
To proceed, we will be locating the sample workflow by Alteryx called 03 Normalize_an_Unstructured_TXT_File. The workflow is located in this location:

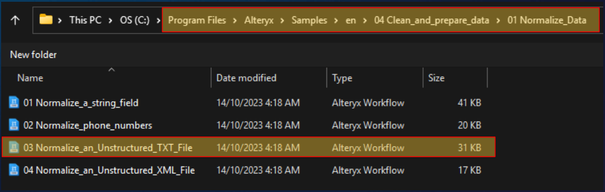

Source: caltang screenshot
From there, right-click the file and choose to “Open With” either Notepad or Notepad++ like so:
Source: caltang Notepad screenshot

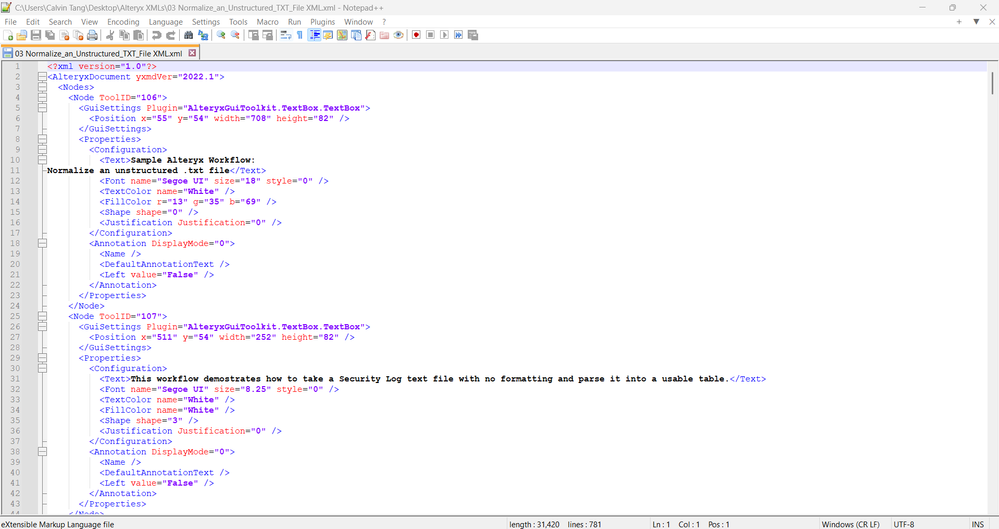

Source: caltang Notepad++ screenshot

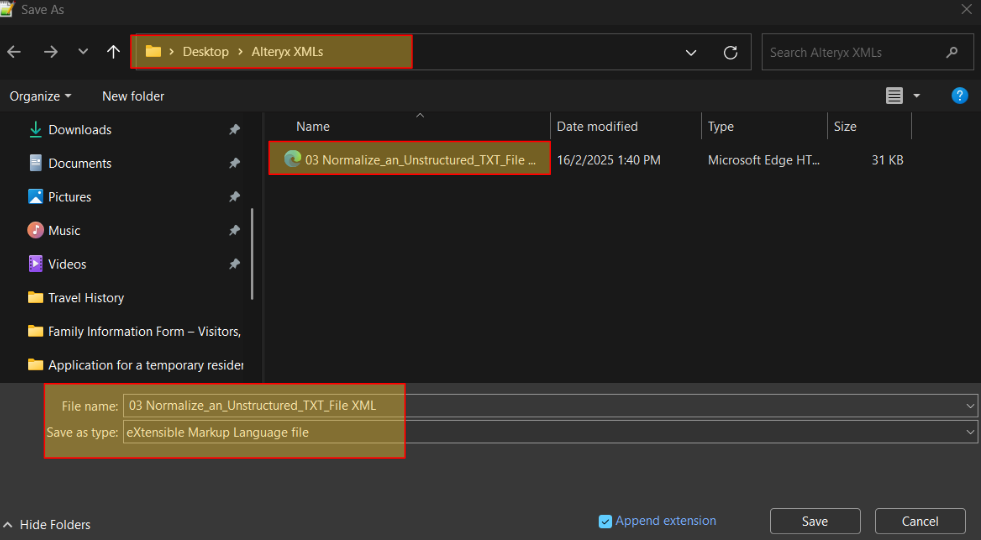

Once you open it with either Notepad or Notepad++, click on “Save as” and append an “XML” or an identifier of your liking at the end of the workflow to prevent re-saving it as a workflow (.yxmd) or other Alteryx workflow types (Apps, Macro, etc.). I recommend creating a specific folder in a location that you are familiar with, like so:
Source: caltang screenshot - Append the word XML onto the file!

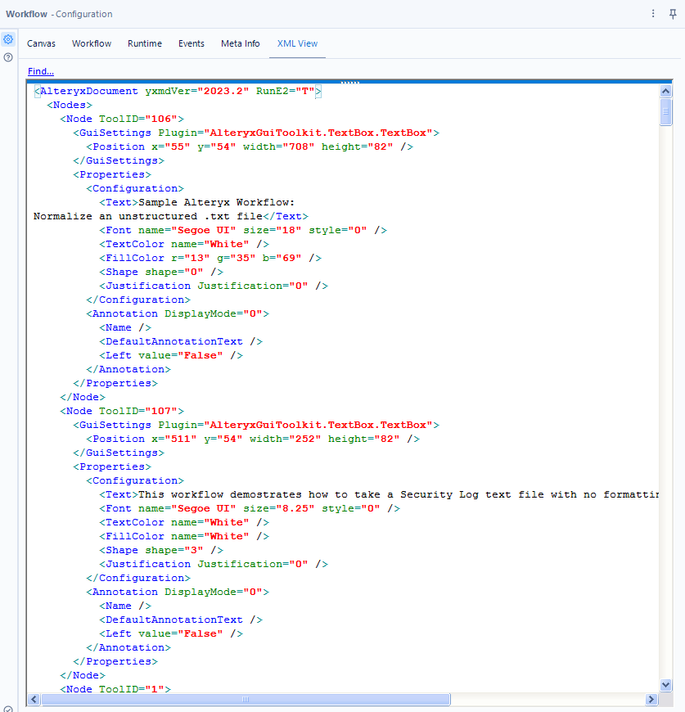

Alternatively, you can also open up the XML view of the workflow (Steps here) and copy all the XML (Keyboard shortcut: CTRL + A and CTRL + C) onto a Notepad or Notepad++ to save. Like so:
Source: Alteryx Designer Sample Workflow - 03 Normalize_an_Unstructured_TXT_File XML view
Once you have saved the XML file, we will be using this file as our input moving forward:

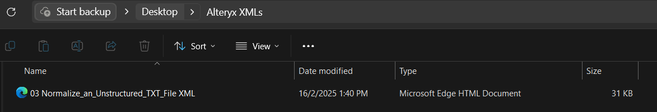

Source: caltang’s 03 Normalize_an_Unstructured_TXT_File XML file
Tools and Frameworks

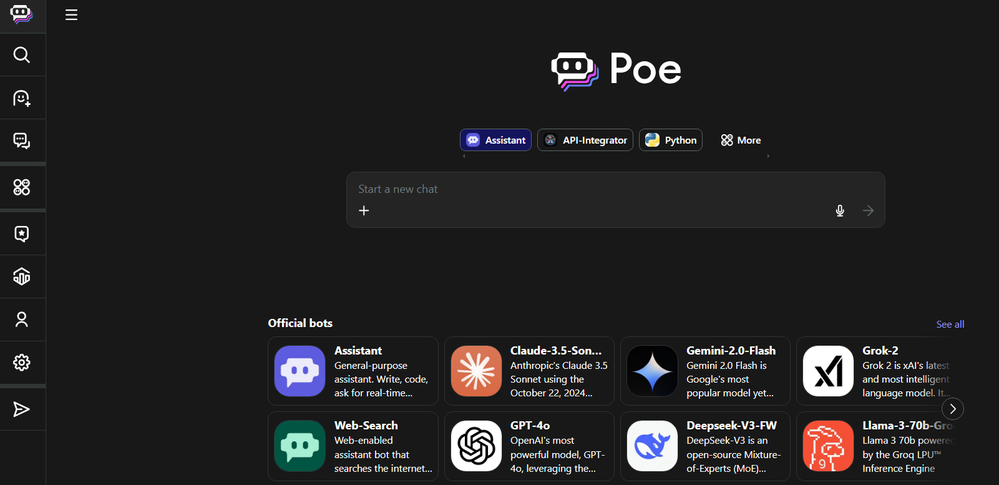

We will be primarily using Generative AI chatbots for our exercise—you are free to choose your own AI chatbot. For this exercise, I will be using Poe! Specifically, I will just be using the normal Assistant of Poe - feel free to experiment with others and post your results in the comments down below!
Source: caltang’s Poe screenshot
Generative AI Techniques for Analyzing XML
When working with an AI chatbot to analyze an XML file saved from an Alteryx workflow, the process involves several key steps that hinge on effective communication with the AI.
To begin the analysis, users can simply upload the XML file we saved earlier into the AI chatbot. This initiates the process where the AI can read and interpret the structured data contained within the XML.
The AI employs various natural language processing techniques to extract meaningful insights, identify relationships, and generate documentation based on the workflow's components. In this case, I will be dropping the XML file into Poe with the following prompt:
“Please study this XML file from an Alteryx Workflow. Remember this file as the main point of our discussions and solutions moving forward.”
The success of utilizing AI for XML analysis largely depends on how well users craft their prompts. This is where prompt engineering comes into play.
- Clarity and Directness: Prompts should be clear and concise, guiding the AI on what specific information or analysis is required. For example, instead of asking, "What can you tell me about this XML?" a more effective prompt would be, "Analyze this XML file and summarize the workflow components."
- Specificity: Being specific helps the AI focus on relevant aspects of the XML. For instance, requesting, "List the tools used in the workflow and their configurations" directs the AI to extract particular details.
- Iterative Refinement: Users can refine their prompts based on the AI's responses. If the initial analysis isn't satisfactory, tweaking the prompt to include additional context or rephrasing can lead to better insights.
- Use of Examples: Providing examples of what you’re looking for can help the AI understand the expected output. For instance, “Generate a report that includes tool names, their positions, and connections, similar to this format: [example format].”
This approach not only enhances the quality of the insights gained but also streamlines the entire analytical process, making it more efficient and user-friendly. Now, with these techniques for prompt engineering in mind, we can begin thoroughly investigating and having fun with this!
Note: As with any AI use, follow your organization’s policies for sharing company content and using AI tools.
Transforming XML Data into Documentation and Insights
When working with an AI chatbot to analyze an XML file from an Alteryx workflow, effective prompt engineering is essential for extracting valuable insights and generating comprehensive documentation. This process can be approached in several stages, allowing users to systematically gather information and delve deeper into the workflow’s structure and functionality.
Automating Documentation and Extracting Insights
Step 1: Extracting Basic Descriptive Information
The first step involves crafting prompts that allow the AI to extract fundamental details about the workflow. Key administrative information such as:
- Author: Identify who created the workflow.
- Workflow IDs: Extract the unique identifiers associated with the workflow.
- Meta information: Extract information regarding the workflow that is keyed in by the developer/user.
Prompts for this stage might include:

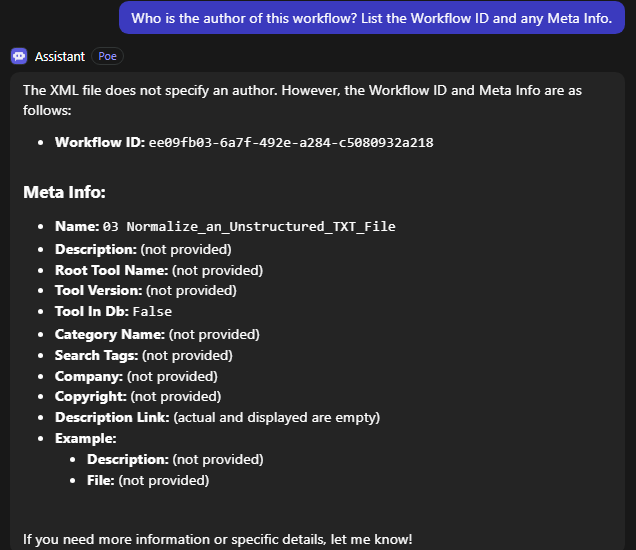

- "Who is the author of this workflow?"
- "List the Workflow ID and any Meta Info."
These initial insights provide a foundational understanding of the workflow's context.

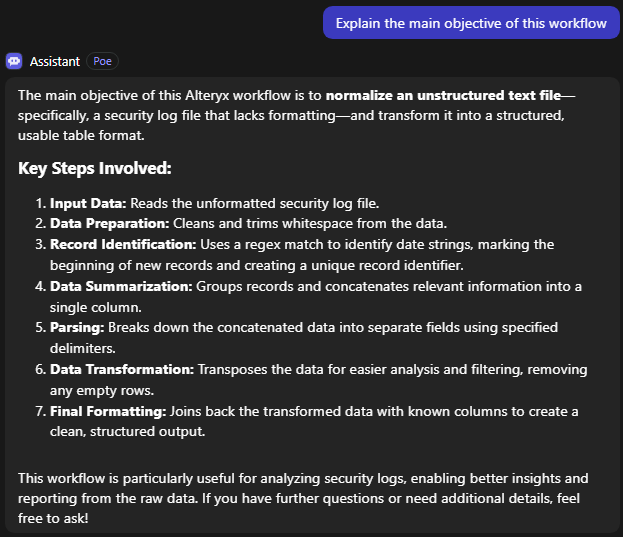

Source: caltang’s Poe screenshot
Step 2: Understanding the Workflow's Purpose and Tools
Once the basics are established, the next step is to dive deeper into the workflow's purpose. This involves asking the AI to summarize what the workflow is designed to accomplish and to break down the tools used in straightforward language.
Prompts might include:
- "Explain the main objective of this workflow."
- "List the tools used in this workflow and describe their functions in simple terms."
The AI can tailor the descriptions to suit different audiences, whether it is for auditors needing compliance details, developers looking for technical specifics, or reviewers seeking an overview.

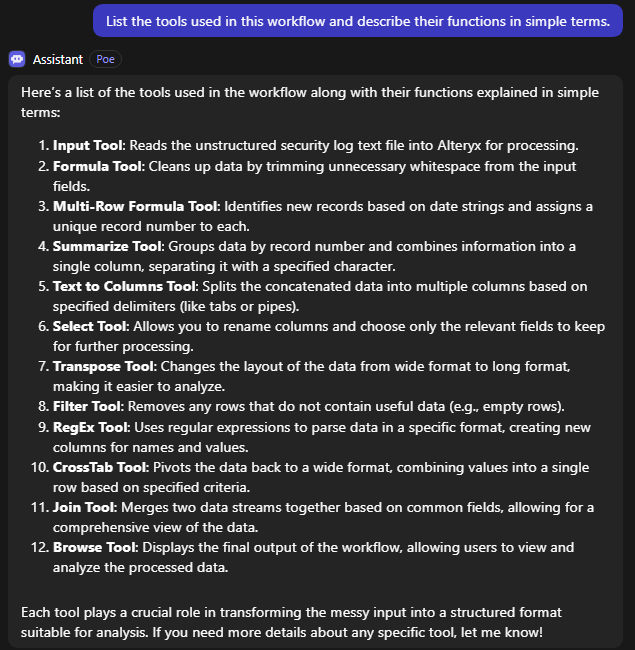

Source: caltang’s Poe screenshot
Source: caltang’s Poe screenshot
Step 3: Advanced Analysis
After gaining a solid understanding of the basics and tools, users can craft more sophisticated prompts to explore advanced insights. This might include:
- Identifying Tool Locations: Understanding where each tool is positioned within the workflow can help visualize data flow.
- Prompt: "Provide the locations of all tools on a Cartesian plane."
- Optimization Potential: Analyzing the workflow for efficiency and suggesting areas for improvement.
- Prompt: "Identify any potential optimizations in this workflow and recommend changes."
- Explaining Outputs: Detailing what outputs the workflow generates and how they can be utilized.
- Prompt: "Summarize the outputs produced by this workflow and explain their significance."
By structuring prompts in this manner, users can effectively leverage the AI's capabilities to transform the raw XML data into meaningful documentation and insights. This structured approach not only enhances understanding but also enables the identification of potential improvements, making the workflow more efficient and effective in achieving its goals.
Advanced Use Case: Visualizing Tool Positions on a Cartesian Plane
Following the previous section’s advanced prompt, one that is of interest is identifying tool locations.
Importance of Visualization
Visualizing the positions of tools on a Cartesian plane is a crucial step in enhancing the accessibility and understanding of Alteryx workflows, especially for non-Alteryx users. This visualization serves multiple purposes that facilitate better communication, analysis, and automation. The importance covers the following:
- Enhanced Understanding: By plotting tools on a Cartesian plane, non-Alteryx users can quickly grasp the layout of the workflow. This visual representation allows them to see how tools are arranged and how data flows through the various stages of the process, making it easier to understand the overall function of the workflow.
- Simplified Navigation: A visual snapshot of tool positions provides a manageable overview of the workflow. Users can easily locate specific tools without needing to navigate through the entire interface, which can be especially beneficial for those unfamiliar with Alteryx.
- Facilitating Communication: When collaborating with team members or stakeholders who may not have extensive experience with Alteryx, visual aids can bridge the knowledge gap. By presenting the workflow in a clear visual format, users can communicate ideas and changes more effectively, ensuring everyone is on the same page.
- Streamlined Reviews and Audits: Visualization aids in audit processes and reviews by allowing users to conduct a quick assessment of tool placements and configurations. This can help identify potential issues or areas for optimization without needing to delve into the technical intricacies of each tool.
- Automation of Reviews: With a visual representation, users can automate the review process by generating snapshots of workflows that highlight key areas. This can streamline documentation and reporting, making it easier to present findings or recommendations to auditors, managers, or other stakeholders.
- Training and Onboarding: For new team members or those being introduced to Alteryx, visualizing tool positions can serve as an effective training tool. It allows them to familiarize themselves with the workflow structure and understand how different components interact without getting overwhelmed by the software's complexities.
In summary, visualizing tool positions on a Cartesian plane transforms the way users interact with Alteryx workflows. It not only enhances understanding and communication but also enables more efficient reviews and training. By making complex data processes more accessible, this approach ultimately empowers users to leverage AI and automation more effectively in their analyses and decision-making processes.
Methodology for Visualization
To effectively visualize tool positions on a Cartesian plane, a structured methodology can be employed, leveraging AI capabilities to generate visual representations using programming languages such as Python or R. This approach not only enhances understanding and communication but also opens avenues for intricate and interactive displays.
Reviewing the XML file, one will notice that each tool will have an x and y coordinate attached to it (Easter Egg: Because of the top-down origins of Alteryx workflow designs, the y axis is actually in the opposite direction - so you can keep this in mind when designing via AI!). In addition, each connection has an origin and ending point with the Tool IDs mentioned in the <Connections> portion of the XML file as well. This allows you to factor it into your prompt to create a visual that has these core elements - everything else thereafter, such as with tool images, container visuals, etc. are dependent on your own experimentation.
Sample Visualizations
My prompt:
“I want to showcase each tool onto a Cartesian plane. I want to do this in Python. I want you to do it so that each tool's X and Y coordinates are factored in. Also, please add the <Connection> strings with respect to their Origin and Destination Tools as lines.
Please note that the y coordinate provided in the XML file is pointing in the opposite direction. Please reverse the direction of the y coordinate only in the XML file when you do the Cartesian plane. The x coordinate stays the same.
Can you ensure that the ingestion point of the XML path is a FilePath? In addition, please ensure the packages installed are easier for users to handle.”

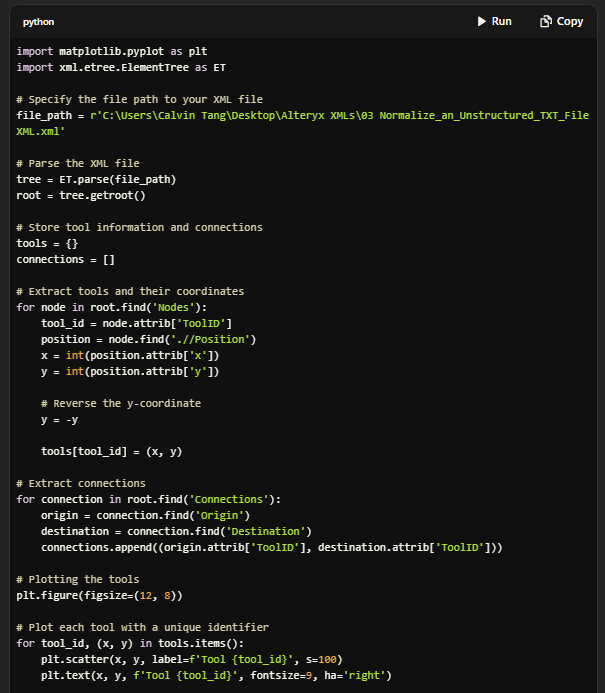

Poe’s Response:
Source: caltang’s Poe screenshot

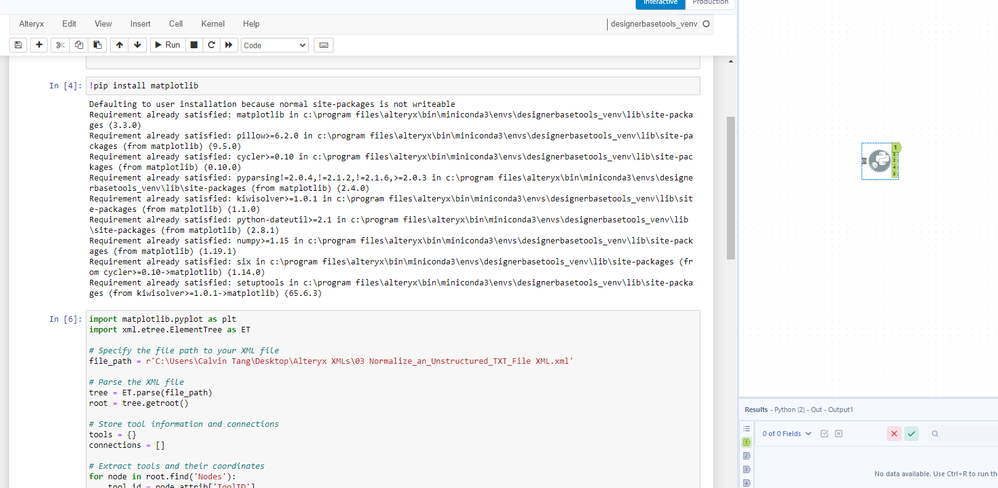

Using the code generated above, I will be using the Python tool in Alteryx to showcase its function. I will make some changes to it - such as by adding “!pip install” rather than “pip install” to accommodate my needs. Doing so in Alteryx:
Source: Alteryx Designer Python
It will then generate:

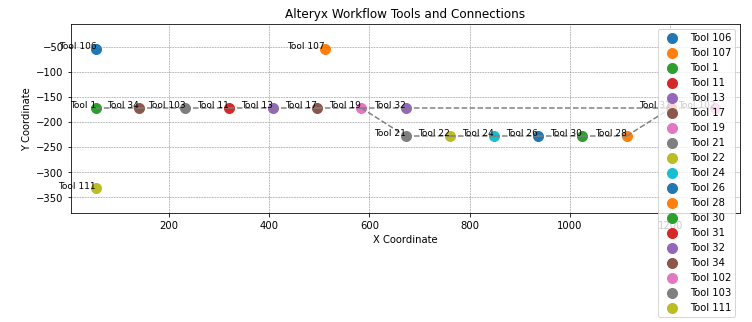

Source: Alteryx Designer Python Visual Output
As you can see, it is able to generate the visual for users and it follows the pattern exactly as you engineer it via prompts. This means you can go even further by adding tool icons in place of circle points, adding a more comprehensive legend, or even adding specific containers to distinguish them properly from tools on a canvas. Much experimentation is needed to have fun!
Conclusion
Leveraging analytics and AI to transform XML data from Alteryx workflows into meaningful insights is invaluable. Through effective prompt engineering, users can extract essential information, comprehend workflow complexities, and visualize tool positions in an accessible manner. The structured methodology outlined in this article emphasizes the importance of clear communication with AI, enabling users to generate both basic and advanced analyses tailored to their specific needs. The integration of AI further enriches this process, providing customized solutions and innovative visual formats.
By harnessing these tools and methodologies, users can unlock the full potential of their work with Alteryx, driving efficiency and effectiveness. The journey to transforming data into actionable insights is not just a technical exercise; it is a strategic advantage!
You can download the attached Alteryx workflow package to experiment with the Python code generated by AI. Additionally, if you would like to learn more about what Alteryx is doing with AI inside the platform, check out this resource.
