SOLVED

Return a value based on certain criteria

binsell
8 - Asteroid

Hi all - I have attached my data what it looks like before and what I want it to look like after. In the column 'proportion of fees 23/24' I wanted to return a value based on the 'SCSESSIONID' column. The logic I want to apply as follows:



IF 'SCSSESSIONID' has characters that DON'T contain an underscore AND contains a value in 'Proportion of fees 22/23' THEN return the value in 'PRORTION OF FEES 22/23' into 'PRORTION OF FEES  Value 23/24'



IF 'SCSESSIONID' has an underscore in the characters AND contains a value in 'Proportion of fees 22/23' then do the following calculation: SCSFEE (gross) MINUS 'Proportion of fees 22/23' and return this value in 'PRORTION OF FEES  Value 23/24'



I hope that makes sense and thank you in advance for your help. This community is brilliant!

4 REPLIES 4
Rhys_Cooper
9 - Comet

Hi @binsell, thank you for your question. Please find my steps outlined below, the results and the workflow attatched

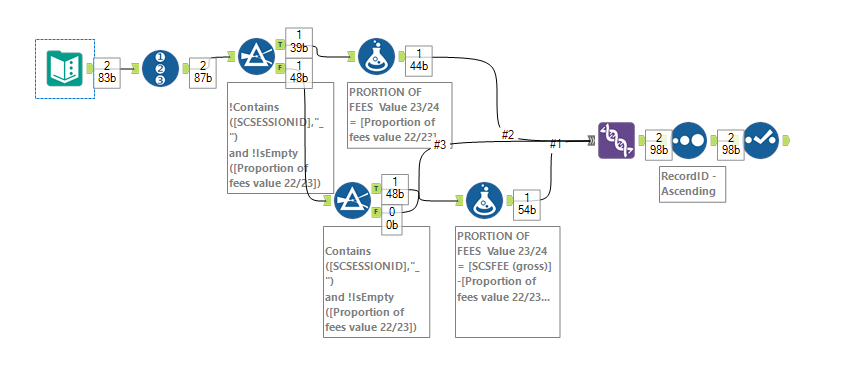

  1. Record ID (ToolID="9"):

    • Adds a RecordID field to each row starting from 1. This field helps to uniquely identify each row to perseve the order by sorting ascending at the end.
  2. Filter (ToolID="3"):

    • Filters rows based on the condition !Contains([SCSESSIONID], "_") and !IsEmpty([Proportion of fees value 22/23]). This is your first logic condition stated.
    • If the condition is True, the row proceeds to the next filter step.
    • If the condition is False, the row goes to another branch for additional processing based of the second logic condition you provided.
  3. Formula (ToolID="4"):

    • For rows that meet the first filter condition, creates a new field PRORTION OF FEES Value 23/24 with the same value as Proportion of fees value 22/23.
  4. Filter (ToolID="6"):

    • For rows that didn't meet the first filter condition, applies another filter: Contains([SCSESSIONID], "_") and !IsEmpty([Proportion of fees value 22/23]).
    • If the condition is True, the row proceeds to a formula step.
    • If the condition is False, the row is directed to the union tool without modification.
  5. Formula (ToolID="7"):

    • For rows that meet the second filter condition, creates a new field PRORTION OF FEES Value 23/24 with the value SCSFEE (gross) - [Proportion of fees value 22/23]. as per your stated formula
  6. Union (ToolID="8"):

    • Combines the outputs from the formula tools and any rows that did not meet either filter condition.
    • The union is performed by field names.
  7. Sort (ToolID="10"):

    • Sorts the combined dataset by RecordID in ascending order to maintain the original order of the records.
  8. Select (ToolID="11"):

    • Selects the fields for the final output. In this case, it deselects the RecordID field and includes all other fields.

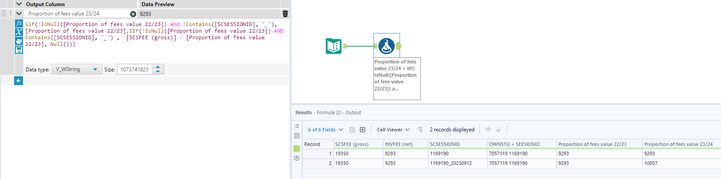

Screenshot 2024-05-21 124432.pngScreenshot 2024-05-21 124456.png



any questions or modifications please let me know - hope this helps! - Rhys Cooper

binuacs
21 - Polaris

@binsell One way of doing this


binsell
8 - Asteroid

@Rhys_Cooper  thank you for taking the time - most helpful :)

binsell
8 - Asteroid

@binuacs Thank you as always for your solutions, I think you reply to most of my questions! I love this community!
