Replace special character with string

Payal1
7 - Meteor

Hi community,



I am using text file as an input where few rows has Up arrows(as shown below), I want to replace that with a string 'Up Arrow'.






Thanks

4 REPLIES 4
DeanWest
9 - Comet

Hello,



 You can use a formula tool to find that value within a field and replace/flag that row with the string "Up Arrow".



Try the following formula to create a new field containing the desired string:

If [Field1] = "↑"
THEN "Up Arrow"
ELSE Null()
ENDIF



Try the following formula to replace the "↑" with "Up Arrow" in the same field:

If [Field1] = "↑"
THEN "Up Arrow"
ELSE [Field1]
ENDIF

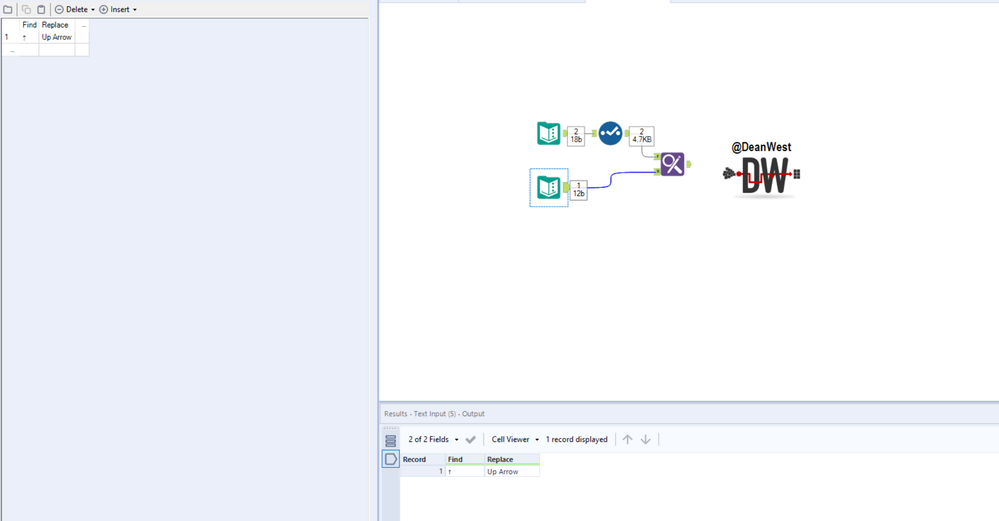

Here is a snippet of an example I created:




Please let me know if you need any more help with this issue 🙂

Payal1
7 - Meteor

Hi Dean,

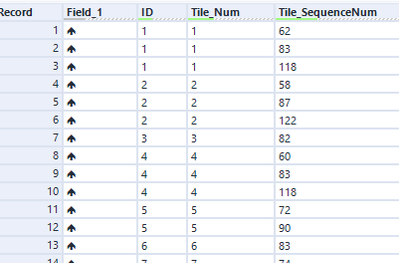

Sorry the formula did not work. The arrows look like this






DeanWest
9 - Comet

In addition, you could also use a Find & Replace Tool or Join Tool if you want to use a lookup table (if it suits your use case better).



I've attached some more examples below:



Create a Lookup Table:

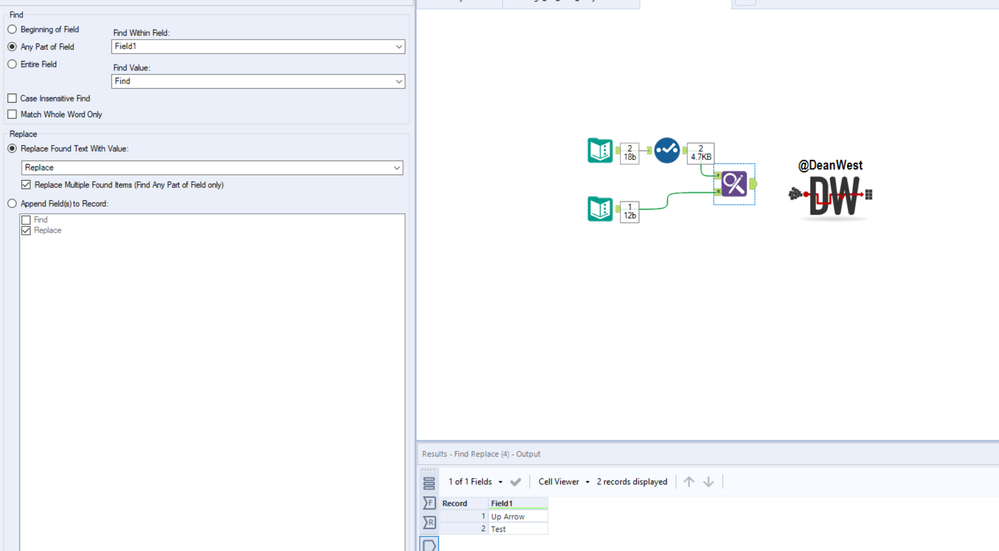

Replace the "↑" with an "Up Arrow" string:




Or create a flag by appending the "Up Arrow" string to the row containing the "↑".




Please let me know if you need any more assistance 🙂

DeanWest
9 - Comet

@Payal1

To fix the formula replace the "↑" with the Unicode character you are using. You can copy it in the results menu by clicking on a cell that contains the character or copy it from your text input. 🙂
