Radio buttons not disabling container

hemant86
11 - Bolide

Hi Team,



Currently I'm using 5 radio button and 5 containers inside my workflow. I have connecting each radio button to 4 other containers to disable it when selected.

Somehow it seems to not disabling the 4 other container. So i tested it with connecting to 2 containers instead and it worked.



Is it like radio buttons can disable only 2 containers at a time. Or I'm missing something.



Appreciate any help!

7 REPLIES 7
atcodedog05
22 - Nova
22 - Nova

Hi @hemant86



You would need to use the condition tool while working with multiple containers.

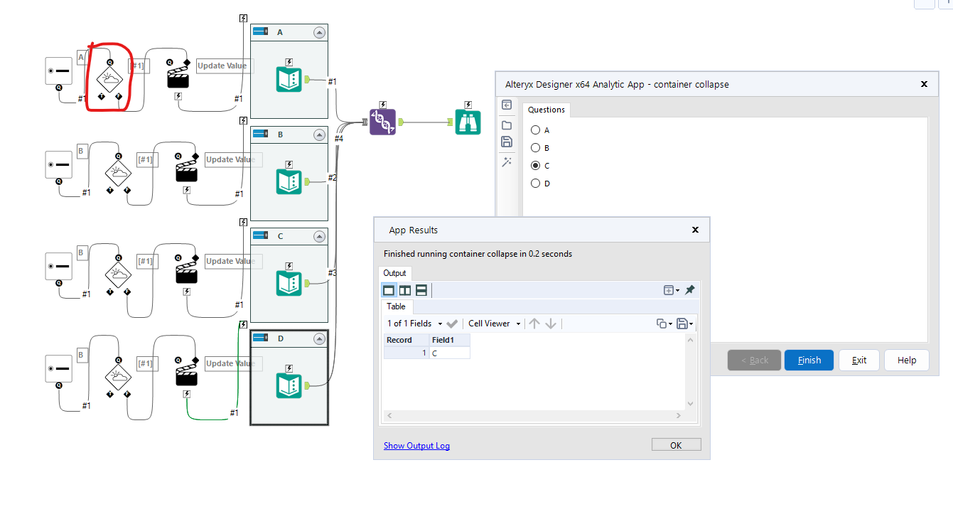

Here is an example: Highlighted is the condition tool




Hope this helps : )

hemant86
11 - Bolide

@atcodedog05 Thanks for your response. Can you please take look in the workflow. Its says missing incoming connection. Not sure why when it has a incoming connection.







atcodedog05
22 - Nova
22 - Nova

Hi @hemant86



Did you try running the workflow once, it might go away. And I would highly suggest you to use similar as shown above or else there is chance containers might not collapse and work properly.



Hope this helps : )





hemant86
11 - Bolide

Thanks @atcodedog05 for your inputs. 🙂 I managed to use "Update Value with formula" option to enable the containers. The containers will be disabled by default and on selection a radio button will only enable the connected container.

atcodedog05
22 - Nova
22 - Nova

Hi @hemant86



If your method was different. Can you share it with us it will be a great learning experience for us ðŸ™‚

hemant86
11 - Bolide

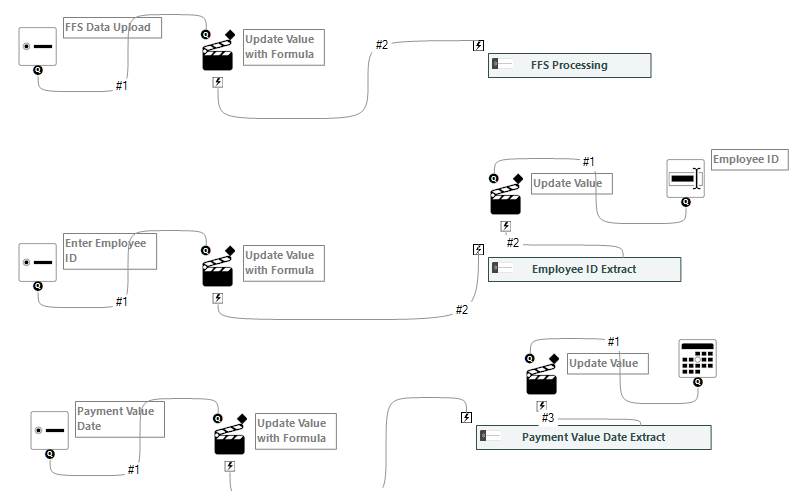

Happy to Help🙂. Please Check below sample workflow.





Hear [#1] is the radio button which is connected to the container I want to enable. Basically its the other way around and you have to keep all the containers pre-disabled

atcodedog05
22 - Nova
22 - Nova

Thanks for sharing @hemant86 ðŸ™‚


Cheers and have a nice day!
