Join / Merge two data sets based on multiple field criteria

[AlexL]

Question-

Is Alteryx able to join / merge two data sets based on multiple field criteria?

With one field criteria being relative/ range of time.

Problem -

Trying to find an automated way to associate Caller Name and Call reason to our telephone records.

Data set 1 is Telephone records

Data set 2 is Agent records

Fields in each data set are absolute in regards to Client, Start Date, Service Rep.

“Start Time” in Agent records can be 0-5min after the telephone record start time; therefore not an exact match

(I.e. – Telephone record has 9:01am and Agent record has 9:03am)

Data set 1 Telephone Records–

Client	Start Date	Start Time	Calling Party	Service Rep
BBF	5/25/2017	9:10:20 AM	9707815688	Smith, John
BBF	5/25/2017	9:10:49 AM	9048991238	Wallace, Andrew
BBF	5/25/2017	9:20:20 AM	3039875688	Tibby, Tim
BBF	5/25/2017	9:20:30 AM	3039851238	Summer, Anne
ABC	5/25/2017	9:25:15 AM	3039851234	Smith, John
BBF	5/26/2017	9:01:49 AM	2126486878	Vasil, George
BBF	5/26/2017	9:05:30 AM	2128514568	Wallace, Andrew
BBF	5/26/2017	9:07:51 AM	2038689638	Summer, Anne
BBF	5/26/2017	9:08:00 AM	2124486448	Smith, John
BBF	5/26/2017	9:10:55 AM	6106488568	Murphy, Jessica
ABC	5/26/2017	9:15:28 AM	2038689846	Smith, John

Data Set 2 Agent Records-

Client	Start Date	Start Time	Service Rep	Caller Name	Call Reason (1)
BBF	5/25/2017	9:10:56	Smith, John	Kramer, Cosmo	Account Balance
BBF	5/25/2017	9:11:48	Wallace, Andrew	Seinfield, Jerry	Policy/Procedure
BBF	5/25/2017	9:21:49	Tibby, Tim	Costanza, George	Redemption
BBF	5/25/2017	9:22:52	Summer, Anne	Benes, Elaine	Redemption
BBF	5/26/2017	9:02:40	Vasil, George	Bing, Chandler	Policy/Procedure
BBF	5/26/2017	9:08:37	Summer, Anne	Tribiani, Joe	Account Balance
BBF	5/26/2017	9:10:49	Smith, John	Gellar, Monica	Transaction Inquiry
BBF	5/26/2017	9:13:08	Murphy, Jessica	Green, Rachel	Beneficiary Inquiry
ABC	5/26/2017	9:16:01	Smith, John	Chan, Jackie	Account Balance

Ideal Outcome-

Client	Start Date	Start Time	Calling Party	Answering Agent	Start Time	Caller Name	Call Reason (1)
BBF	5/25/2017	9:10:20 AM	9707815688	Smith, John	9:10:56 AM	Kramer, Cosmo	Account Balance
BBF	5/25/2017	9:10:49 AM	9048991238	Wallace, Andrew	9:11:48 AM	Seinfield, Jerry	Policy/Procedure
BBF	5/25/2017	9:20:20 AM	3039875688	Tibby, Tim	9:21:49 AM	Costanza, George	Redemption
BBF	5/25/2017	9:20:30 AM	3039851238	Summer, Anne	9:22:52 AM	Benes, Elaine	Redemption
ABC	5/25/2017	9:25:15 AM	3039851234	Smith, John
BBF	5/26/2017	9:01:49 AM	2126486878	Vasil, George	9:02:40 AM	Bing, Chandler	Policy/Procedure
BBF	5/26/2017	9:05:30 AM	2128514568	Wallace, Andrew
BBF	5/26/2017	9:07:51 AM	2038689638	Summer, Anne	9:08:37 AM	Tribiani, Joe	Account Balance
BBF	5/26/2017	9:08:00 AM	2124486448	Smith, John	9:10:49 AM	Gellar, Monica	Transaction Inquiry
BBF	5/26/2017	9:10:55 AM	6106488568	Murphy, Jessica	9:13:08 AM	Green, Rachel	Beneficiary Inquiry
ABC	5/26/2017	9:15:28 AM	2038689846	Smith, John	9:16:01 AM	Chan, Jackie	Account Balance

[AlexL]

To clarify, I'm trying find a automated way to associate Caller name and Call Reason to the phone records.

[gc]

Can you Trim out the seconds from Start Time, and just compare based on Hour and Minutes? Would that be enough precision for matching purposes if you had a new field "StartTimeMatch" to join on, leaving your actual Start Time data with hours:minutes:seconds intact?

[david_fetters]

Alex,

Building on GCs idea, I think rounding time to minutes into new fields in both data sets is your starting point.  Then we just need to deal with the possible variation in time between sets.  You're probably always going to run into problems with close cases (i.e. when an agent completes two phone calls within 5 minutes) so we just need to trap those cases and deal with them manually.  Based on your sample data, that doesn't look like it's common for your agents to speak that quickly with two clients.

My solution would be to take your records in one table (consequence of that choice discussed later) and create five copies of each record, with each copy having its RoundedTime value increased/decreased by 1 minute.  We'll say that you chose to create duplicates of your Table 2, Agent Records.  If there was a record in that table with a Start Time at 9:22:35, you would have RoundedTime fields of 9:22, 9:21, 9:20, 9:19, 9:18.  Do this by feeding the original record set into five formula tools that are set to subtract 0,1,2,3, or 4 minutes, and then union the results back together.  Then you can join on Agent Name and RoundedTime fields in both tables.  Because you have unique records in Data set 1, your join should produce 1:1 matches on the RoundedTime fields.

Based on your ideal outcome, I'd suggest doing the 'multiple copies' on Agent Records, because it's easier to deal with the unjoined records in Telephone Records.  If you want to do it the other way, you may just have to unique unjoined records (and remember to increase your RoundedTime rather than decrease it.)

This is a pretty brutish approach, but I think it's a simple possible solution.  I would be sure to add a unique ID to both tables, and then filter our duplicate records after your join.  Duplicates indicate you've got some overlap between two Agent records and would be worth investigating.  If you need an example of this, I can probably put one together this weekend (at Inspire right now!)

[anthony]

To me this seems like a join/sort. Since you will never have perfect data to join on time and since the time can vary wildly it might be a pain to put blocks of time around each call for a more definitive join.

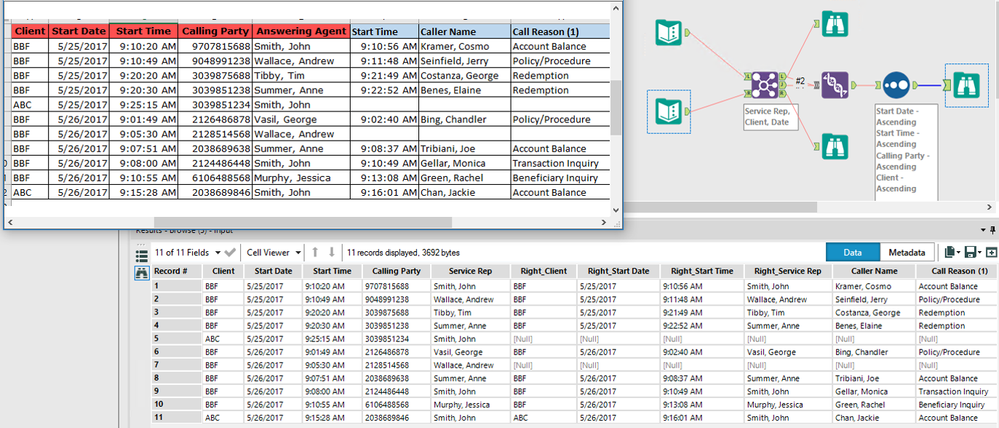

I got your results with this join on rep/client/date and then sorting results by date/time/caller/rep etc. The edge case if a call is at 11:59pm and the report is next day, could be an issue depending on your hours.his:

[AlexL]

Thanks everyone for your responses!

Anthony, this is very close to what I need.

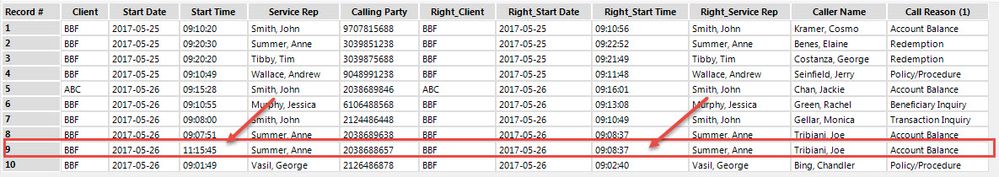

I added another Telephone record to the sample (11:15am) and the join forumula associates it to a 9am agent record.

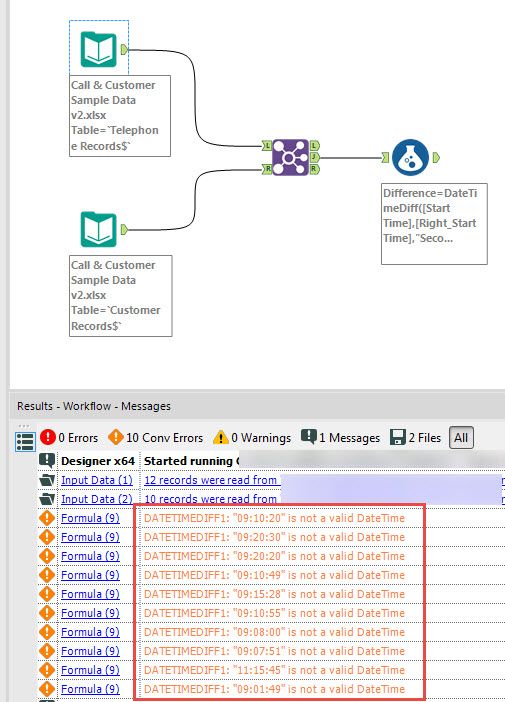

I tried creating new field using the DateTimeDiff formula to create a formula to null out the agent records if the difference is greater than X.

Unfortunately, it does not like the excel time data and provides the errror "DATETIMEDIFF1: "09:10:20" is not a valid DateTime

Any thoughts?



Ideal Outcome (Revised to include 11:15am record)-

Client	Start Date	Start Time	Calling Party	Service Rep	Start Time	Caller Name	Call Reason (1)
BBF	5/25/2017	9:10:20 AM	9707815688	Smith, John	9:10:56 AM	Kramer, Cosmo	Account Balance
BBF	5/25/2017	9:10:49 AM	9048991238	Wallace, Andrew	9:11:48 AM	Seinfield, Jerry	Policy/Procedure
BBF	5/25/2017	9:20:20 AM	3039875688	Tibby, Tim	9:21:49 AM	Costanza, George	Redemption
BBF	5/25/2017	9:20:30 AM	3039851238	Summer, Anne	9:22:52 AM	Benes, Elaine	Redemption
ABC	5/25/2017	9:25:15 AM	3039851234	Smith, John
BBF	5/26/2017	9:01:49 AM	2126486878	Vasil, George	9:02:40 AM	Bing, Chandler	Policy/Procedure
BBF	5/26/2017	9:05:30 AM	2128514568	Wallace, Andrew
BBF	5/26/2017	9:07:51 AM	2038689638	Summer, Anne	9:08:37 AM	Tribiani, Joe	Account Balance
BBF	5/26/2017	9:08:00 AM	2124486448	Smith, John	9:10:49 AM	Gellar, Monica	Transaction Inquiry
BBF	5/26/2017	9:10:55 AM	6106488568	Murphy, Jessica	9:13:08 AM	Green, Rachel	Beneficiary Inquiry
ABC	5/26/2017	9:15:28 AM	2038689846	Smith, John	9:16:01 AM	Chan, Jackie	Account Balance
BBF	5/26/2017	11:15:45 AM	2038688657	Summer, Anne

[anthony]

This is a nice little macro to convert various time formats to iso time format. I used this on a 100M row table and it took a long time so best to clean up large tables with other methods. But for millions of rows it works great.

https://community.alteryx.com/t5/Engine-Works-Blog/Introducing-BB-Date-Date-Parsing-for-the-Rest-of-...

Date formulas only work on iso time so any excel formats will need to be converted first.

[david_fetters]

I learned this when trying to work with your data, but some of the date time functions seem to need a formal DateTime datatype to work (or at least need the underlying data to be properly formatted as a complete Date + Time value).  You can create one from your Date and Time fields by following the instructions here: https://community.alteryx.com/t5/Data-Preparation-Blending/Combining-a-Time-and-Date-Field/td-p/3615...

Just set a new field to DateTime and do [Date] + ' ' + [Time] before running your functions.

[jarrod · Accepted solution]

You can actually do this without a join. Instead, union the data and sort to find the "order" then use a multi-row tool to check that the dates are within a certain time frame and then mark the corresponding "pairs" that fit the criteria.

See the attached workflow for details as it's a little hard to explain in text.

[AlexL]

Hi Jarrod,

This is great!  I will need to study it a few times to fully absorb.

Thanks!
