Add New Column after Existing Column

[fikrizahari]

Hi,

Greetings !

I would like to create another columns after existing table, based on value written by user.
I understand that the value can be input via 'Text Box' tools, but I have difficulties to sort back the column sequence.

For example, user input 'cost centre' : 123001-AB
If its match with any 'cost centre', it require to create another column on the right side ( only require for non-zero column ).

Input data :

Cost Centre	Basic Salary	House Allowance	Car Allowance	Phone Allowance
154001-DE	5000	400	500	100
123001-AB	4000	300		100
123001-ZY	3000		500	100
154001-KU	2000	300	500	100

Desired output :

Cost Centre	Basic Salary	Basic Salary - 123001-AB	House Allowance	House Allowance - 123001-AB	Car Allowance	Phone Allowance	Phone Allowance - 123001-AB
154001-DE	5000		400		500	100
123001-AB		4000		300			100
123001-ZY	3000				500	100
154001-KU	2000		300		500	100

The main issue is the column sequence is not on any sorting order.
Thank you in advance !

[PangHC · Accepted solution]

you can transpose everything first, then crosstab it again.

open via edit or from designer

[Yoshiro_Fujimori]

Hi @fikrizahari ,

It may not be exactly match with your requirement,

but I would do this way as I prefer keeping the original table format.

Please take this as another approach.

Workflow

Output

[Yoshiro_Fujimori]

I converted the Workflow to an APP with Drop Down List. (Just for curiosity😀)

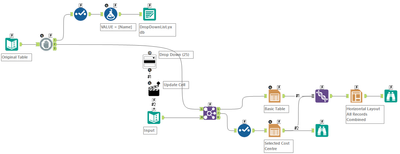

Workflow

Not sure if the Block Until Done tool actually works. It may be necessary to run it twice.

APP Interface

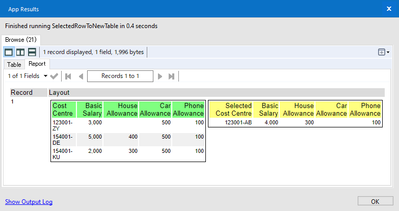

APP Output

[fikrizahari]

Hi @PangHC

It worked !

I would like to ask :

1) May i know the reason to change data type ? Is that mandatory ?

2) How do you set the cost centre '123001-AB' on the text box tool ?
and how do i change if i want to test with other cost centre ?

[PangHC]

1. type is not necessary, but the size yes.

bug for text input, always keep lowest data type.

before only 15, not enough character for adding cost center behind.

2. it an application format, good to implement as users need not have knowledge to alteryx.

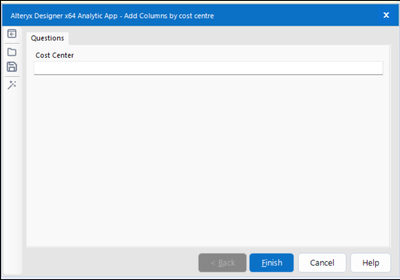

when you double click the file in folder, it will pop out this. (provided alteryx designer)

so users only need to fill-in certain criteria and get their required result (via the output file)

*user cant see the result window, so you need to have output tool to let user check result via the excel file (for example).

you can learn it in interactive lessons

Help Doc link: Analytic Apps | Alteryx Help

[fikrizahari]

Hi @PangHC

Thank you for your answers and suggestions.
It is the solution that I am looking for, appreciate it !


Hi @Yoshiro_Fujimori

Thank you for your answer, its really helpful and gave me another idea.
I also has combined the drop down list that you mentioned, into my workflow. 😆

However, I would like to combine the table instead of make it separate.
It is fine, since Pang Hee Choy already gave me the solution above.
