How to setup a IBM DB2 connection

Kaustubh17
9 - Comet

Hi team,



Please request your help or guidance to setup a IBM DB2 Connection with Alteryx. i am not getting any proper documentation or step by step process to setup the connection. Request your help.



Best Regards,

Kaustubh

4 REPLIES 4
Raj
16 - Nebula

@Kaustubh17
To connect IBM DB2 with Alteryx, you need to download the IBM Data Server Driver for ODBC and CLI. This driver is available for both 32-bit and 64-bit systems

  1. Install the IBM DB2 ODBC Driver:

    • Download the ODBC driver from the IBM website.
    • Install the driver on your machine.
  2. Configure the ODBC Data Source:

    • Open the ODBC Data Source Administrator on your computer.
    • Go to the “System DSN” tab and click “Add”.
    • Select the IBM DB2 ODBC driver and click “Finish”.
    • Fill in the required details such as Data Source Name (DSN), Description, and Database alias.
    • Test the connection to ensure it is working correctly.
  3. Set Up the Connection in Alteryx:

    • Open Alteryx Designer.
    • Drag an Input Data tool onto the canvas.
    • In the configuration window, select “ODBC” from the Data Source drop-down menu.
    • Choose the DSN you created earlier from the list.
    • Enter your DB2 credentials (username and password).
    • Click “OK” to establish the connection.
Kaustubh17
9 - Comet

Hi @Raj



Thanks for sharing the valuable information:



i have few questions:

  • Which driver should i download(version)
  • When i download the driver i get the zip file.
  • Don't understand what to do next because in ODBC it directly shows in the user DSN or system DSN but its not showing.
  • Can you share the exact driver details.

Best Regards,

Kaustubh

Raj
16 - Nebula
ann1
6 - Meteoroid

Hello

I tried to connect DB2 DB and it popped up error as below:

and I installed the DB2 ODBC driver as you mentioned link, but our DB2  version is V7R5.








this error means Unable to locate program input point? GetfuncAddress ......in dynamic link library E: \ Tool \...

 After I click ok button, and another different error message popped up as below:




the error means : Internal error SQLDriveConnect: [Microsoft] [ODBC Driver Manager] Data source name not found and default driver not specified

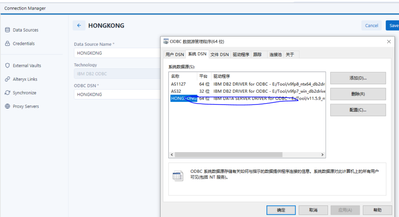

and ODBC config as below:


Could you please help check this issue?



Thanks a lot
