Alteryx formula

SouravKayal
8 - Asteroid

Hi ,



i am trying to achieve the below but its getting too complicated.



i have like a few ids and rag associated with them but i need to chose the highest based on hierarchy.



ex



id. Rag

1.    Red

2.    Amber

3.    Green

3.     Red

3.   Red

1. amber

2 green



so what i need is 1 to show red 2 to show amber and 3 to show red



so if red is there it will be red. If amber then amber if only green then green.



i was trying to do a summarise and then take count and then apply a formula but i think there could be an easier way to do this. Can someone please guide

5 REPLIES 5
BS_THE_ANALYST
14 - Magnetar
14 - Magnetar

@SouravKayal I think this is doing what you want! The unique tool can help with taking the first instance of something appearing in a list:






All the best,
BS

LinkedIN

Bulien
SouravKayal
8 - Asteroid

But unique will give me the forst occurence i want to sort first red then amber then green

BS_THE_ANALYST
14 - Magnetar
14 - Magnetar

@SouravKayal could you provide the Sample Input and Expected Output. This way I can build a logic



All the best,
BS

LinkedIN

Bulien
SouravKayal
8 - Asteroid

As I mentioned so input data could be



Id rag

1 red

1 amber

1 green

1 amber

2 red

2 green

3 amber

3 green

3 green

4 green

5 red

5 green

output expected



1 red

2 red

3 amber

4 green

5 red



so where ever there is red i want red for that id , where there is amber and green i want amber and only green then green

DataNath
17 - Castor
17 - Castor

Hey @SouravKayal, here's one way you could go about this:

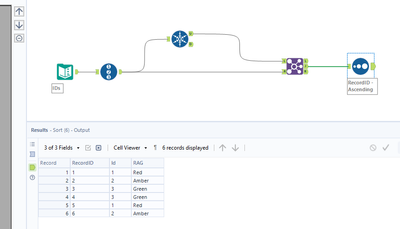

The workflow:

1) Assigns a rank to the [Rag] value - Red = 1, Amber = 2, Green = 3

2) The 2 x Summarize tools a) pull out the [Min_Rank] for each ID and, b) create a form of lookup for the rank in a single row each so we don't explode the data

3) Join the [Min_Rank] to the corresponding [Rag]

4) Sort the IDs into the original order
