Connecting data from Databricks (as input) to Alteryx Desinger

[SachinCariappa]

Hello Together,

I have a scenario in connecting Databricks (as input connection) to Alteryx. In this scenario, please advice if we have the tool under In-Database tool pallet? If Yes, please assist as how we connect to databricks unity catalog (having a generic / service account) and what is the tool name. Thank you!

[apathetichell]

hmm... this seems like a pretty obscure issue. can you confirm you are using token/PAT for your authorization?  This looks like you may be able to connect - but may not be able to retrieve your metadata. This could be a driver setup, a databricks set up, a permission issue with your user/token or other. So there are a ton of potential issues here.

Here's what I'd start with:

1) When you connect via Test from ODBC - can you look at your logs? how are they different (ie do you see that issue)

2) What version of Alteryx/Databricks driver are you using

3) Can you check on your user/token's permission to a) start your cluster b) retrieve/read tables/schema objects metadata

4) catalog should be under database in your odbc64 config main driver screen it should be default

5) can you share a screenshot of your advanced settings in your odbc set up?

[Hpitcockaa]

I am using a token created through my DataBricks account.

1. The logs look fairly different because ODBC64 is just starting and cancelling requests, but I don't see noticeable differences when the connection is initializing or anything.

2. I am using Alteryx Designer 2023.1 and Simba Spark 2.8.2

3. I'm not sure how to check this-- Databricks let me create the token but there's no place to configure or check permissions

4. I am using the default catalogue

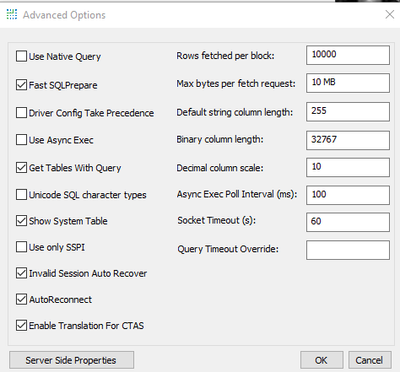

5. Here is a screenshot

 

[apathetichell]

O.k. - let's go for what I have here:

checked:

Use Native Query

Fast SQL Perpare

Driver Config Take Precedence

Unicode SQL Character Types

Show System Table

Auto Reconnect

Unchecked:

Use Async Exec

Get Tables With Query

Use Only SSPI

Invalid Session Auto Receover

Enable Translation for CTAS

I also have:

hive.resultset.use.unique.column.names=false in my server side properties (that's manually configured to allow duplicate columns)

I'm on 2021.4 and Simba Spark ODBC Driver 2.06.23.1039 (so old stuff)

[Hpitcockaa]

That worked! You are WONDERFUL! Thank you for all of the help
