Chained apps: Return to the previous app

Highlighted
5 - Atom

Hi Everyone,



I'm new to alteryx and I'm developing a data extract tool.

I have already built the tool with 5 chained apps, however, I am not able to create an interface or action that will let the user go back to the previous apps in case he needs to revise the filters he selected.

I have 4 levels of filters, see below. These are dynamically pulled from a database.



ZONEREGIONSUBREGIONCOUNTRY
China OperationsChinaChinaCN
China OperationsChinaHong Kong And MacauHK
Europe OperationsCentral And Eastern EuropeAustria And SwitzerlandAT
Europe OperationsCentral And Eastern EuropeAustria And SwitzerlandCH
Europe OperationsCentral And Eastern EuropeBenelux And Israel

BE

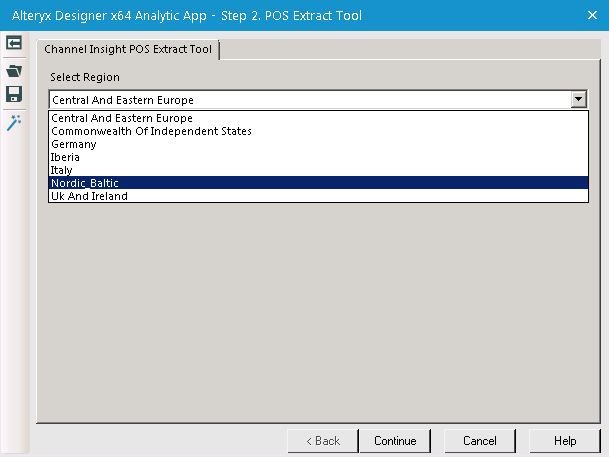

Below is a screen shot which is already at the level 2 filter (region). I want to be able to go back and forth the apps. Please provide solutions or any workaround.


Highlighted
Alteryx Certified Partner
Alteryx Certified Partner

This is theoretical...



At the end of an application, the next chained app is MENU.



MENU will call  NEXT.yxwz as the next application and based upon the selection, you must WRITE the XML for NEXT to basically continue to the next application where you updated the XML



<Wiz_ChainRunWizard>Do this step now.yxwz<Dependencies><Implicit /><Dependencies></Wiz_ChainRunWizard>

...

Maybe it could work...



Cheers,

Mark





Alteryx ACE & Top Community Contributor

Chaos reigns within. Repent, reflect and reboot. Order shall return.
Highlighted
Alteryx Certified Partner

Hi @ccabarle,



Unfortunately, there's not a way (that I've found at least) to tell a chained app to go back a step. You can potentially add some type of option that would ask the same question again within the current chain running, but that just seems like a slippery slope... I wouldn't suggest attempting it.



I'd suggest submitting this as an idea!

Product Ideas



Kind regards,



Jimmy

Highlighted
5 - Atom

Hi Mark,



Can you guide me further on how to do this.

Will this create an interface for returning to the previous app or is this just an event triggered when the next/continue button is clicked?

Not really familiar with modifying the XML codes...

Highlighted
5 - Atom
@jrgo wrote:

Hi @ccabarle,



Unfortunately, there's not a way (that I've found at least) to tell a chained app to go back a step. You can potentially add some type of option that would ask the same question again within the current chain running, but that just seems like a slippery slope... I wouldn't suggest attempting it.



I'd suggest submitting this as an idea!

Product Ideas



Kind regards,



Jimmy


Thanks Jimmy, I was just wondering if there is a tool like a "back" button where the user can just simply navigate through the chains. Seems like there is none. Will submit this as an idea then.

Highlighted
Alteryx Certified Partner

@ccabarle,



It'd be a really nice function to have. I did see your idea and added my vote to it! Hope it gets traction...



Best,



Jimmy

Highlighted
5 - Atom

I know this thread is old but in case someone comes searching for this answer still there is a way to do this (though it is not perfect).



1) Just add a link in the interface design and set the destination to the relative path of the app that you want it to direct the user back to.




2) As a result the current window remains open (not the best user experience) but a new window opens with that app at its starting point.




Highlighted
7 - Meteor

Hi everyone!



I was able to solve the same problem I had within my workflow with the help of this article:

https://community.alteryx.com/t5/Alteryx-Designer-Knowledge-Base/Chained-Alteryx-Analytic-Applicatio...



For example you're at the App#3 and depending on selected Radio button (or whatever) you either want to go App#4 or run Application #3 again.

For example we have two Radio buttons: Option#1 "Run again" and Option#2 "Run further".

Go back in Chained Apps.png



Under the Option#1 Tool container besides all other step you've created, you also need to import (via Input) App#3 as .csv file, concatinate it via Summarize and then export (via Output) to App#4 file in .csv format again.



Option#2 would be just the normal steps you want to do in order to run your chained apps further PLUS the steps to overwrite App#4 back to it's original (in case you choose this option after selecting Option#1).



Basically, this action permanently overwrites the code of saved App#4 with the code of App#3 while your're running your application. So you have to store the original App#4 code (like "App#4 - Template") in addition to it, so you could overwrite it back when you decide to go further after looping inside App#3.



I've created this just to loop my application back to the same one, but I feel like it can be used in a bigger number of options. Like, if Option#1 - overwrite with the code of App#1, if Option#2 - overwrite with the code of App#2, etc. This way, I think, you can create a tree of applications that can only be run if you select the specific option somewhere during your process, or they may be not run at all if this option was never used. Also it can be used to go back to specific Apps in the past - by creating buttons for them or applying some logic within a process and choose to which app to return.
