Breaking-up start & end DateTime based on Start and End times of other rows

MichielRauws
5 - Atom

Hi there!



Unfortunately I have come across a problem I can not solve. Hopefully someone here can help me!



I have one dataset, which includes several tasks that are performed partially parallel.
I would like to get rid of parallel tasks, for which I feel like I need to first break-up all tasks so the end of one task is the start of another (without losing any data).



As an example, task A is from 01:00-02:00 and task B is from 01:30-02:30, I believe I first need to turn these two tasks into four tasks:

A: 01:00-01:30

A: 01:30-02:00

B: 01:30-02:00

B: 02:00-02:30



However, knowing what to do is one thing, I'm not succeeding at doing it.

Any suggestions on how to perform this explosion/break-up of tasks?



This is part of the data I'm using:

Task #StartEndPriority
100:00:0001:00:001
200:45:0001:30:003
302:00:0002:30:002
401:00:0003:30:004
503:00:0004:00:002



Which I hope to turn into:

Task #StartEndPriority
100:00:0000:45:001
100:45:0001:00:001
200:45:0001:00:003
201:00:0001:30:003
401:00:0001:30:003
401:30:0002:00:004
302:00:0002:30:002
402:00:0002:30:004
402:30:0003:00:004
403:00:0003:30:004
503:00:0003:30:002
503:30:0004:00:002



Below I've added a screenshot of how the broken-up tasks could look like.






2 REPLIES 2
ArtApa
Alteryx
Alteryx

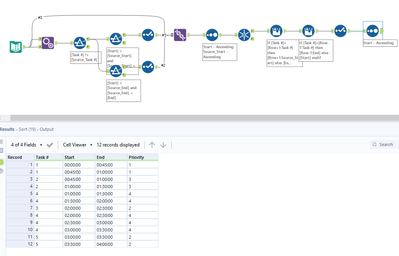

Hi @MichielRauws - Here is a possible solution:




MichielRauws
5 - Atom

Very clever! Thanks a lot!
