Batch Macro with field map

[florijn]

Hi

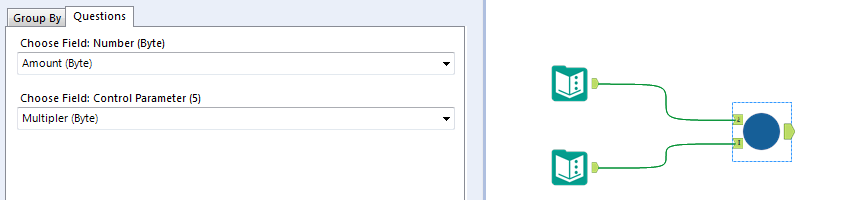

Maybe a very simple question. I tried to duplicate a batch macro (multiplication example in the community). After I checked Show Field Map, I did not find the Field name I can select in the Questions tab. Here is the screenshot.

How should I configure to show a Field Map in the Questions tab, like the following in the example. What did I miss in the configuration?

Thanks

[Qiu]

@florijn
the selection will be done at the workflow sde, not the macro side.

[messi007]

@florijn,

Once you call the macro you map you batch question:

Hope that Helps,

Rgards

[florijn]

@Qiu

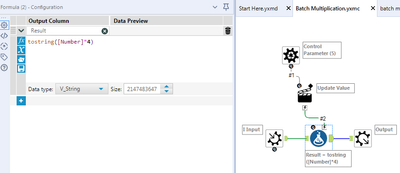

I replicated the workflow, but again I did not see the question for the field map and the workflow gave me a error message. Attached is the workflow and macro files. Can you advise in details how to figure it out?

[florijn]

@messi007

I can see the question for control parameter, but not the question for field map as the error message. The field name was changed in the workflow for numbers to be multiplied, so I checked the box for field map in the macro. How to figure out the error? Attached is the workflow.

[Qiu · Accepted solution]

@florijn

The fomula Tool in your Macro shall be in the format of numeric then you map the field.

[florijn]

That's right. Do you know the reason why Field Result must be numberic, not string?

Thanks

[Qiu]

@florijn

You are doing a numeric calculation in the formula tool.

A ToString Function is required if you want String.
