Unable to access Gallery after switching to SAML

[Neycho-LCL]

Hello,

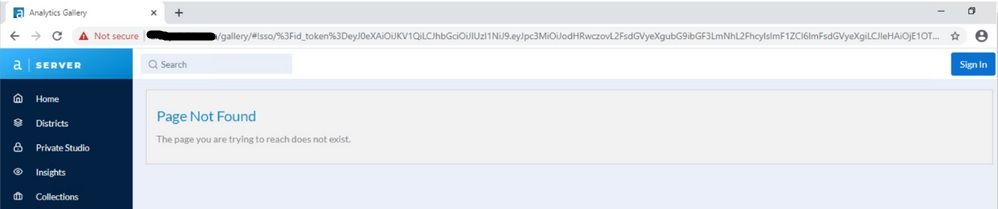

We have changed our authentication type from Windows Authentication to SAML but now we are not able to log in to our Gallery. Azure AD is our IDP and once I click Sign In, I get redirected to Microsoft Azure. After entering my credentials I get "Page Not Found" error:

Does someone have any idea how to fix this issue? What Attributes and Claims should we use for Azure configuration?

Thank you.

[JosephSerpis]

Hi @Neycho-LCL changing authentication type is not recommended as each authentication type structures the mongo database differently if you are using the embedded mongo database option. You would need to raise a support ticket so they can help rebuild your mongo database.

[Neycho-LCL]

Hi, we are using a user-managed MongoDB and I already have rebuilt the database. I think the problem is with our Claims but we are not sure how to configure them.

[PaulNo]

Hi @Neycho-LCL,

Could you please confirm that you have cleared your browsing data after changing the authentication method?

Also, was test successful when you clicked on "Verify IDP" (Alteryx System Settings > Gallery > General) after changing the authentication mode?

Could you provide a screenshot of the "User Attributes & Claims" section of the configuration in Azure?

Best,

PaulN

[Neycho-LCL]

Hi @PaulNo,

Yes, I have cleared the browsing data and the "Verify IDP" was successful.

Here are our Attributes and Claims:

Identifier (Entity ID) = https://OurGalleryUrl/aas/Saml2

Reply URL (Assertion Consumer Service URL) = https://OurGalleryUrl/aas/Saml2/Acs

[PaulNo]

Hi @Neycho-LCL,

Thanks for the details.

From your comments, I assume that you have already checked https://community.alteryx.com/t5/Alteryx-Server/Configuring-SAML-2-0-on-Alteryx-Server-for-Azure-AD/...

I would verify Gallery/AAS logs since error message to confirm the error message.

Also, your screenshot shows a warning with the certificate. This could be worth confirming this too.

With efficiency in mind, it might be easier to go on a call to verify your configuration, so I would suggest you to contact support@alteryx.com -and mention this thread- and share with them:

- your version of Alteryx Server

- your browser (it shouldn't matter but, just in case...)

- your configuration (C:\ProgramData\Alteryx\RuntimeSettings.xml)

- Gallery logs (location could be found in Alteryx System Settings)

- AAS logs (location: C:\ProgramData\Alteryx\Logs\aas-log-xxxx.txt)

- a screenshot of your full Azure configuration

Feel free to update this thread with the answer if possible.

Best,

PaulN

[Neycho-LCL]

Hi @PaulNo, thank you for the advice.

I have contacted the support 2 weeks ago but they are still not able to help me. Their suggestions don't work. So, I'm looking here if anyone had the same issue and found a solution for it.

[erich_shiino]

Hi,

Were you able to solve this issue?
