Danceable Lyrics
In this guide, we use the Alteryx Python SDK and Alteryx Plugin CLI to create a tool that connects directly to a set of data files and determines the most "danceable" songs that contain a set of lyrics. Perhaps we started this journey with this problem statement:
I'm a Spotify Product Analyst who wants to perform a proof of concept (POC) on whether it's possible to determine the most "danceable" songs that contain a set of lyrics. If possible, this POC can help drive the development of a new Recommendation feature on the Spotify app.
We use Polars for data processing. Polars has many benefits over the more common Pandas. Some key benefits include:
- It's extremely fast.
- Polars can optimize queries and perform parallel processing for free.
- It has a very familiar API to expressively manipulate
DataFrames. - Zero-copy support with Apache Arrow, our native SDK format.
ℹ️ For more information on Polars, go to the Polars User Guide and the Python API.
Table of Contents
- Download Input Data
- Basic Plugin Setup
- Write a Plugin
- Packaging into a YXI
- Run the Test Client
- Install in Designer
- Run in Designer
Download Input Data
Download and extract the required dataset files. You will reference them later in this guide. We provide 2 datasets—the full dataset and a smaller, truncated version.
- The full version expands to around 11 GB of data. You can download it here.
- The truncated version expands to around 5.7 GB of data. You can download it here.
Go to the README.md files within the respective archives for source information.

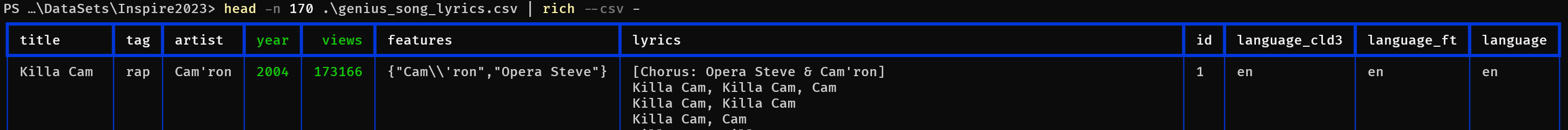

Before we proceed, let's take a quick look at the data set files:
Above, we see genius_song_lyrics.csv is made up of the columns title, tag, artist, year, views, features, lyrics, id, language_cld3, language_ft, and language. Notice that lyrics contains strings with multiple lines. Let's look at this just a bit closer:
We can see the strings are quoted. This is great, Polars supports all of this right out of the box!

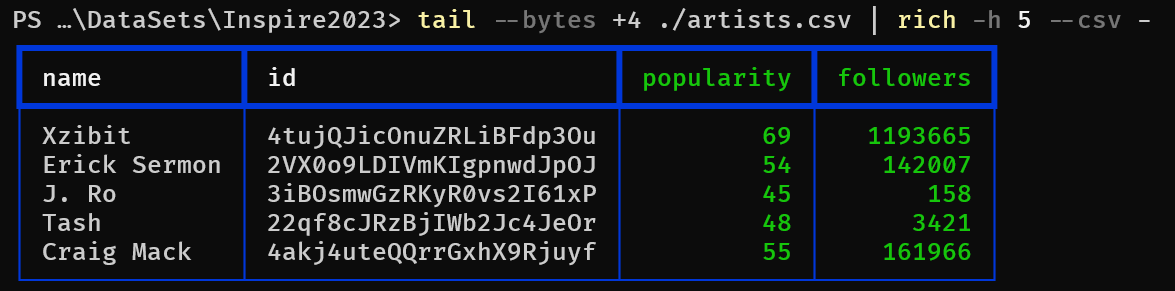

Let's move on to our input files which contain track features:
Above, we pipe commands through tail --bytes +4 in order to skip past the first 4 bytes, which represent a UTF-8 Byte Order Mark (BOM) in our input CSV files. But this is something Polars can handle for us. Let's try another approach using Python and Polars:
>>> import polars as pl
>>> print(pl.scan_csv("audio_features.csv").collect().head(5))
shape: (5, 15)
┌────────────────────────┬──────────────┬───────────────────────────────────┬──────────────┬───┬─────────────┬─────────┬────────────────┬─────────┐
│ id ┆ acousticness ┆ analysis_url ┆ danceability ┆ … ┆ speechiness ┆ tempo ┆ time_signature ┆ valence │
│ --- ┆ --- ┆ --- ┆ --- ┆ ┆ --- ┆ --- ┆ --- ┆ --- │
│ str ┆ f64 ┆ str ┆ f64 ┆ ┆ f64 ┆ f64 ┆ i64 ┆ f64 │
╞════════════════════════╪══════════════╪═══════════════════════════════════╪══════════════╪═══╪═════════════╪═════════╪════════════════╪═════════╡
│ 2jKoVlU7VAmExKJ1Jh3w9P ┆ 0.18 ┆ https://api.spotify.com/v1/audio… ┆ 0.893 ┆ … ┆ 0.283 ┆ 95.848 ┆ 4 ┆ 0.787 │
│ 4JYUDRtPZuVNi7FAnbHyux ┆ 0.272 ┆ https://api.spotify.com/v1/audio… ┆ 0.52 ┆ … ┆ 0.427 ┆ 177.371 ┆ 4 ┆ 0.799 │
│ 6YjKAkDYmlasMqYw73iB0w ┆ 0.0783 ┆ https://api.spotify.com/v1/audio… ┆ 0.918 ┆ … ┆ 0.133 ┆ 95.517 ┆ 4 ┆ 0.779 │
│ 2YlvHjDb4Tyxl4A1IcDhAe ┆ 0.584 ┆ https://api.spotify.com/v1/audio… ┆ 0.877 ┆ … ┆ 0.259 ┆ 94.835 ┆ 4 ┆ 0.839 │
│ 3UOuBNEin5peSRqdzvlnWM ┆ 0.17 ┆ https://api.spotify.com/v1/audio… ┆ 0.814 ┆ … ┆ 0.233 ┆ 93.445 ┆ 4 ┆ 0.536 │
└────────────────────────┴──────────────┴───────────────────────────────────┴──────────────┴───┴─────────────┴─────────┴────────────────┴─────────┘
>>> print(pl.scan_csv("r_track_artist.csv").collect().head(5))
shape: (5, 2)
┌────────────────────────┬────────────────────────┐
│ track_id ┆ artist_id │
│ --- ┆ --- │
│ str ┆ str │
╞════════════════════════╪════════════════════════╡
│ 2jKoVlU7VAmExKJ1Jh3w9P ┆ 4tujQJicOnuZRLiBFdp3Ou │
│ 2jKoVlU7VAmExKJ1Jh3w9P ┆ 2VX0o9LDIVmKIgpnwdJpOJ │
│ 2jKoVlU7VAmExKJ1Jh3w9P ┆ 3iBOsmwGzRKyR0vs2I61xP │
│ 2jKoVlU7VAmExKJ1Jh3w9P ┆ 22qf8cJRzBjIWb2Jc4JeOr │
│ 4JYUDRtPZuVNi7FAnbHyux ┆ 4akj4uteQQrrGxhX9Rjuyf │
└────────────────────────┴────────────────────────┘
>>> print(pl.scan_csv("tracks.csv").collect().head(5))
shape: (5, 10)
┌────────────────────────┬─────────────┬──────────┬──────────┬───┬───────────────────────────────────┬──────────────┬────────────┬─────────────┐
│ id ┆ disc_number ┆ duration ┆ explicit ┆ … ┆ preview_url ┆ track_number ┆ popularity ┆ is_playable │
│ --- ┆ --- ┆ --- ┆ --- ┆ ┆ --- ┆ --- ┆ --- ┆ --- │
│ str ┆ i64 ┆ i64 ┆ i64 ┆ ┆ str ┆ i64 ┆ i64 ┆ i64 │
╞════════════════════════╪═════════════╪══════════╪══════════╪═══╪═══════════════════════════════════╪══════════════╪════════════╪═════════════╡
│ 1dizvxctg9dHEyaYTFufVi ┆ 1 ┆ 275893 ┆ 1 ┆ … ┆ ┆ 12 ┆ 0 ┆ null │
│ 2g8HN35AnVGIk7B8yMucww ┆ 1 ┆ 252746 ┆ 1 ┆ … ┆ https://p.scdn.co/mp3-preview/77… ┆ 13 ┆ 77 ┆ null │
│ 49pnyECzcMGCKAqxfTB4JZ ┆ 3 ┆ 315080 ┆ 0 ┆ … ┆ ┆ 6 ┆ 8 ┆ 1 │
│ 4E5IFAXCob6QqZaJMTw5YN ┆ 1 ┆ 240800 ┆ 1 ┆ … ┆ https://p.scdn.co/mp3-preview/f3… ┆ 2 ┆ 70 ┆ null │
│ 1gSt2UlC7mtRtJIc5zqKWn ┆ 2 ┆ 203666 ┆ 0 ┆ … ┆ ┆ 2 ┆ 50 ┆ null │
└────────────────────────┴─────────────┴──────────┴──────────┴───┴───────────────────────────────────┴──────────────┴────────────┴─────────────┘
Basic Plugin Setup
Before you proceed, please ensure you have this basic setup:
- Create a Workspace to house your plugin.
- Add a new plugin.
- When prompted choose Input as the type.
- To match what is found in this guide, choose DanceableLyrics as the plugin name.
After you run the above setup procedures, you will have a file named danceable_lyrics.py under ./backend/ayx_plugins with a generated boilerplate. When you open the file, you should see something like this:
class DanceableLyrics(PluginV2):
"""Concrete implementation of an AyxPlugin."""
def __init__(self, provider: AMPProviderV2) -> None:
self.provider = provider
# truncated code
def on_incoming_connection_complete(self, anchor: namedtuple) -> None:
# truncated code
def on_record_batch(self, batch: "Table", anchor: namedtuple) -> None:
# truncated code
def on_complete(self) -> None:
import pandas as pd
import pyarrow as pa
df = pd.DataFrame(
{
"x": [1, 2, 3],
"y": ["hello", "world", "from ayx_python_sdk!"],
"z": [self.config_value, self.config_value, self.config_value],
}
)
packet = pa.Table.from_pandas(df)
self.provider.write_to_anchor("Output", packet)
self.provider.io.info("DanceableLyrics tool done.")
Write a Plugin
In this guide, we use multiple data files. We read each directly to illustrate a connector-like plugin. That is, to connect directly to local or remote data sources. While here, we read CSV input files, these could be in any format, including formats that Alteryx Designer does not directly support.
ℹ️ To see an Input tool that connects to a remote API, check out Creating an API Tool!
ℹ️ Since this is an Input tool, we only focus on the
__init__andon_completefunctions. For additional information on the lifecycle of a plugin, refer to the AYX Python SDK documentation.
1. Dependencies
The first step is to update our ./backend/requirements-thirdparty.txt file and tell Python we depend on Polars as a 3rd-party dependency. To do this, add a single line to the file:
polars==0.17.9
2. Imports
The next step is to update our Python module's imports. Imports tell Python what other code we will reference in our plugin. Add the required import statements near the top of your danceable_lyrics.py file. Your code should look like this:
from collections import namedtuple
from pathlib import Path
from ayx_python_sdk.core import PluginV2
from ayx_python_sdk.core.exceptions import WorkflowRuntimeError
from ayx_python_sdk.core.field import FieldType
from ayx_python_sdk.core.utils import create_schema
from ayx_python_sdk.providers.amp_provider.amp_provider_v2 import AMPProviderV2
import polars as pl
import pyarrow as pa
3. Initialization
Now, let's update the plugin's __init__ method and set up some basic variables that we will reference later in the code. To start, modify the start of __init__ to set a base path to where you extracted your data assets. Use self.DATASETS_BASE to do so. The result should look something like this:
def __init__(self, provider: AMPProviderV2) -> None:
"""Construct a plugin."""
self.provider = provider
self.name = "DanceableLyrics"
# Point this variable to your extracted datasets directory:
self.DATASETS_BASE = Path("c:/users/alteryx/DanceableLyricsData/")
It's probably a good idea to validate this path and ensure 1) that it exists, 2) that it is a directory, and 3) that it contains all the files we need. We can do that like so:
@staticmethod
def _validate_datasets_dir(datasets_dir: Path) -> None:
if not datasets_dir.is_dir():
raise WorkflowRuntimeError("Bad path")
filenames = [
"artists.csv",
"tracks.csv",
"r_track_artist.csv",
"genius_song_lyrics.csv",
"audio_features.csv"
]
nonexistent_files = list(
filter(lambda filepath: not filepath.is_file(), map(lambda filename: (datasets_dir / filename), filenames))
)
if len(nonexistent_files) != 0:
raise WorkflowRuntimeError(
f"Expected files not found: {','.join(map(str, nonexistent_files))}")
and then call this method like so:
# Point this variable to your extracted datasets directory:
self.DATASETS_BASE = Path("c:/users/alteryx/DanceableLyricsData/")
self._validate_datasets_dir(self.DATASETS_BASE)
Next, let's tell downstream tools what our plugin's metadata looks like. That is, what fields and their data types the plugin will output:
self.provider.push_outgoing_metadata(
"Output",
create_schema(
{
"artist_name": {"type": FieldType.v_wstring},
"track_name": {"type": FieldType.v_wstring},
"danceability": {"type": FieldType.float},
"energy": {"type": FieldType.float},
"track_id": {"type": FieldType.v_wstring},
}
),
)
Now Designer and downstream tools will know exactly what kind of data to expect from our plugin.
Since we want to find the "most danceable" songs based on particular lyrics, let's provide some terms or phrases. Our tool will then gather songs (or "tracks") that contain lyrics with these terms.
self.LYRICS_TERMS = [
"star wars",
"star trek",
"luke skywalker",
"captain kirk",
"spock",
"yoda",
]
⚠️ Be aware that these datasets are not filtered in any way, and songs or titles might contain explicit content!
Finally, let's add some additional criteria for our analysis and an output message to display when the plugin is initialized. Feel free to play around with these values!
self.DANCEABILITY_RANGE = [0.45, 0.99]
self.ENERGY_RANGE = [0.45, 0.75]
self.TEMPO_RANGE = [110.0, 140.0]
self.MIN_VIEWS = 1000
self.provider.io.info(f"{self.name} initialized.")
When you have completed the above steps, your __init__ should look something like this:
@staticmethod
def _validate_datasets_dir(datasets_dir: Path) -> None:
if not datasets_dir.is_dir():
raise WorkflowRuntimeError("Bad path")
filenames = [
"artists.csv",
"tracks.csv",
"r_track_artist.csv",
"genius_song_lyrics.csv",
"audio_features.csv"
]
nonexistent_files = list(
filter(lambda filepath: not filepath.is_file(), map(lambda filename: (datasets_dir / filename), filenames))
)
if len(nonexistent_files) != 0:
raise WorkflowRuntimeError(
f"Expected files not found: {','.join(map(str, nonexistent_files))}")
def __init__(self, provider: AMPProviderV2) -> None:
"""Construct a plugin."""
self.provider = provider
self.name = "DanceableLyrics"
# Point this variable to your extracted datasets directory:
self.DATASETS_BASE = Path("c:/users/alteryx/DanceableLyricsData/")
self._validate_datasets_dir(self.DATASETS_BASE)
self.provider.push_outgoing_metadata(
"Output",
create_schema(
{
"artist_name": {"type": FieldType.v_wstring},
"track_name": {"type": FieldType.v_wstring},
"danceability": {"type": FieldType.float},
"energy": {"type": FieldType.float},
"track_id": {"type": FieldType.v_wstring},
}
),
)
self.LYRICS_TERMS = [
"star wars",
"star trek",
"luke skywalker",
"captain kirk",
"spock",
"yoda",
]
self.DANCEABILITY_RANGE = [0.45, 0.99]
self.ENERGY_RANGE = [0.45, 0.75]
self.TEMPO_RANGE = [110.0, 140.0]
self.MIN_VIEWS = 1000
self.provider.io.info(f"{self.name} initialized.")
ℹ️ To make your Input plugin more dynamic, you can use the Alteryx UI-SDK and have a user supply many of the variables above.
4. Data Processing
Now it's time to process some data! Since we don't currently attempt incoming data, but rather, provide data as output, we'll do the bulk of our work in on_complete.
Our first data input is from the genius_song_lyrics.csv file, where we will discover songs with lyrics that contain our search terms:
def on_complete(self) -> None:
self.provider.io.info(f"{self.name} gathering sample lyrics...")
sample = (
pl.scan_csv(self.DATASETS_BASE / "genius_song_lyrics.csv")
.select(
pl.col("title").str.to_lowercase().alias("track_name"),
pl.col("artist").str.to_lowercase().alias("artist_name"),
"lyrics",
"language",
"views",
)
.filter(
pl.col("lyrics").str.contains("(?i)" + "|(?i)".join(self.LYRICS_TERMS))
)
.filter(pl.col("language") == "en")
.filter(pl.col("views") > self.MIN_VIEWS)
.collect()
)
Above, we tell Polars to create a DataFrame that contains select columns from rows that match our criteria. We also normalize some column names— we lowercase them and add aliases in our output. In our filter clause, we build a case-insensitive regular expression from our list of terms. Finally, we filter out non-English terms and restrict results to only entries with more than self.MIN_VIEWS. You might want to alter these criteria a bit. For example, you might want to allow other languages.
The next section of code reads from multiple input files and joins them into a single danceable_tracks view of the data that contains columns that match our criteria.
self.provider.io.info(f"{self.name} gathering danceable track information...")
artists = (
pl.scan_csv(self.DATASETS_BASE / "artists.csv")
.select(
pl.col("name").str.to_lowercase().alias("artist_name"),
pl.col("id").alias("artist_id"),
)
.collect()
)
tracks = (
pl.scan_csv(self.DATASETS_BASE / "tracks.csv")
.select(
pl.col("name").str.to_lowercase().alias("track_name"),
pl.col("id").alias("track_id"),
"explicit",
)
.filter(pl.col("explicit") == 0)
.collect()
)
track_artists = (
pl.scan_csv(self.DATASETS_BASE / "r_track_artist.csv")
.select(pl.col("track_id"), pl.col("artist_id"))
.sort("track_id")
.collect()
)
audio_features = (
pl.scan_csv(self.DATASETS_BASE / "audio_features.csv")
.select(pl.col("id").alias("track_id"), "danceability", "energy", "tempo",)
.filter(pl.col("danceability").is_between(*self.DANCEABILITY_RANGE))
.filter(pl.col("energy").is_between(*self.ENERGY_RANGE))
.filter(pl.col("tempo").is_between(*self.TEMPO_RANGE))
.sort("track_id")
.collect()
)
danceability_tracks = (
track_artists.join(artists, on="artist_id")
.join(tracks, on="track_id")
.join(audio_features, on="track_id")
)
If we output danceability_tracks via print(danceability_tracks), we'll see a header similar to this:
track_id | artist_id | artist_name | track_name | explicit | danceability | energy | tempo
As you can see, this combines data from multiple sources.
Now that we have both a sample of songs with lyrics that contain our terms and track information that includes "danceability", let's find our matches! Add this code:
self.provider.io.info(f"{self.name} calculating final results...")
matches = pl.DataFrame()
for row in sample.rows(named=True):
artist = row["artist_name"]
track = row["track_name"]
m = (
danceability_tracks.select(
"artist_name",
"track_name",
"danceability",
"energy",
("https://open.spotify.com/track/" + pl.col("track_id")),
)
.filter(pl.col("artist_name") == artist)
.filter(pl.col("track_name") == track)
.limit(1)
)
if not m.is_empty():
matches = pl.concat([matches, m])
matches = matches.sort("danceability", descending=True)
The above code loops over all the rows in our sample. Since we provide named=True, Polars also includes the column name in each row value. We then look for a single match with a matching artist_name and track_name (via limit(1)) in danceability_tracks. Additionally, we prefix the track_id with a base URL to build a full Spotify open link. We append to the matches DataFrame for any matches. Finally, we sort the results by danceability.
Now that we have our matches, let's output them to Designer!
self.provider.write_to_anchor(
"Output", pa.Table.from_pandas(matches.to_pandas())
)
self.provider.io.info(f"{self.name} finished.")
ℹ️ You might notice something a bit odd here. We are constructing a PyArrow table (
pa.Table) from a Pandas frame converted from Polars. This is because the current version of Polarsto_arrow()produces unexpected results. Perhaps newer versions won't require this workaround.
5. Putting It All Together
ℹ️ See danceable_lyrics.py on Github for the full source.
Let's take a look at our final on_complete. It should look like something like this:
def on_complete(self) -> None:
self.provider.io.info(f"{self.name} gathering sample lyrics...")
sample = (
pl.scan_csv(self.DATASETS_BASE / "genius_song_lyrics.csv")
.select(
pl.col("title").str.to_lowercase().alias("track_name"),
pl.col("artist").str.to_lowercase().alias("artist_name"),
"lyrics",
"language",
"views",
)
.filter(
pl.col("lyrics").str.contains("(?i)" + "|(?i)".join(self.LYRICS_TERMS))
)
.filter(pl.col("language") == "en")
.filter(pl.col("views") > self.MIN_VIEWS)
.collect()
)
self.provider.io.info(f"{self.name} gathering danceable track information...")
artists = (
pl.scan_csv(self.DATASETS_BASE / "artists.csv")
.select(
pl.col("name").str.to_lowercase().alias("artist_name"),
pl.col("id").alias("artist_id"),
)
.collect()
)
tracks = (
pl.scan_csv(self.DATASETS_BASE / "tracks.csv")
.select(
pl.col("name").str.to_lowercase().alias("track_name"),
pl.col("id").alias("track_id"),
"explicit",
)
.filter(pl.col("explicit") == 0)
.collect()
)
track_artists = (
pl.scan_csv(self.DATASETS_BASE / "r_track_artist.csv")
.select(pl.col("track_id"), pl.col("artist_id"))
.sort("track_id")
.collect()
)
audio_features = (
pl.scan_csv(self.DATASETS_BASE / "audio_features.csv")
.select(pl.col("id").alias("track_id"), "danceability", "energy", "tempo",)
.filter(pl.col("danceability").is_between(*self.DANCEABILITY_RANGE))
.filter(pl.col("energy").is_between(*self.ENERGY_RANGE))
.filter(pl.col("tempo").is_between(*self.TEMPO_RANGE))
.sort("track_id")
.collect()
)
danceability_tracks = (
track_artists.join(artists, on="artist_id")
.join(tracks, on="track_id")
.join(audio_features, on="track_id")
)
self.provider.io.info(f"{self.name} calculating final results...")
matches = pl.DataFrame()
for row in sample.rows(named=True):
artist = row["artist_name"]
track = row["track_name"]
m = (
danceability_tracks.select(
"artist_name",
"track_name",
"danceability",
"energy",
("https://open.spotify.com/track/" + pl.col("track_id")),
)
.filter(pl.col("artist_name") == artist)
.filter(pl.col("track_name") == track)
.limit(1)
)
if not m.is_empty():
matches = pl.concat([matches, m])
matches = matches.sort("danceability", descending=True)
self.provider.write_to_anchor(
"Output", pa.Table.from_pandas(matches.to_pandas())
)
self.provider.io.info(f"{self.name} finished.")
Package into a YXI
Now that we have our code, it's time to package it all up into a portable YXI archive. To do this, we use the ayx_plugin_cli create-yxi command. The process looks like this:
~/MyWorkspace$ ayx_plugin_cli create-yxi
[Creating YXI] started
[Creating YXI] -- generate_config_files:generate_config_xml
[Creating YXI] -- generate_config_files:generate_tool_config_xml
[Creating YXI] . generate_config_files:generate_manifest_jsons
[Creating YXI] Generating manifest.json for DanceableLyrics...
[Creating YXI] Done!
...omitted...
~\MyWorkspace\main.pyz -e ayx_python_sdk.providers.amp_provider.__main__:main
[Creating YXI] Created shiv artifact at: ~\MyWorkspace\main.pyz
[Creating YXI] . create_yxi:create_yxi
[Creating YXI] finished
Run the Test Client
Before you run your plugin in Designer, it's good practice to do some basic testing with ayx-sdk-cli's plugin run command to check for any errors. Download and install the test client from here and run this from your workspace:
ayx-sdk-cli plugin run DanceableLyrics -o danceable.csv
NOTE: The test client, ayx-sdk-cli, is NOT the same as ayx-plugin-cli.
The above command runs our plugin and produces danceable.csv. You can run ayx-sdk-cli plugin run --help for additional options.

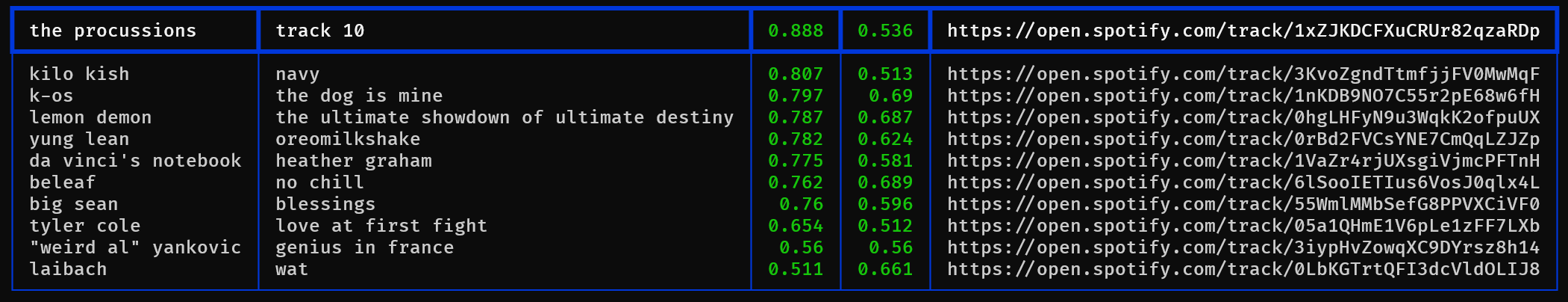

Given the command above, our output should look something like this (we use Rich CLI to preview):
Install in Designer
In this section, we will go over the 2 ways to install the plugin into Designer.
Method 1

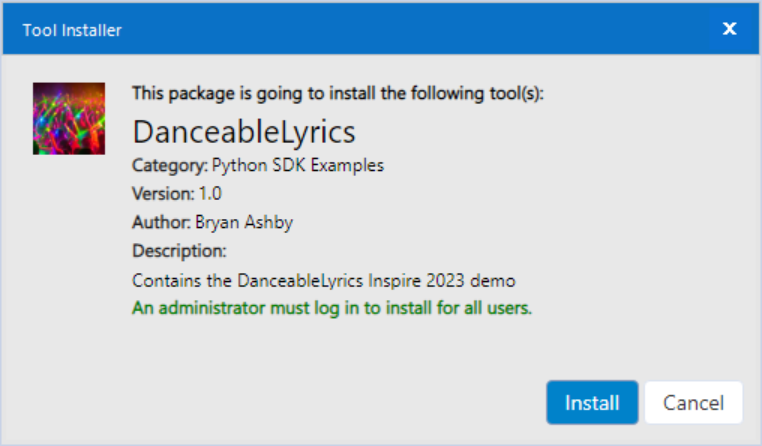

After you create a .yxi, you can double-click the .yxi to install it in Designer. This opens Designer and prompts you to install the package in a new dialog box. It looks something like this:
Once it installs, you can find the plugin under the Python SDK Examples tool category.[^2]
Method 2
You can also create the .yxi and install it all at once via the ayx_plugin_cli designer-install command. Choose the install option that matches your Designer install. Typically, this is the user install option.
~/MyWorkspace$ ayx_plugin_cli designer-install
Install Type (user, admin) [user]: user
[Creating YXI] started
[Creating YXI] -- generate_config_files:generate_config_xml
[Creating YXI] -- generate_config_files:generate_tool_config_xml
[Creating YXI] . generate_config_files:generate_manifest_jsons
[Creating YXI] Generating manifest.json for DanceableLyrics...
[Creating YXI] Done!
...omitted...
[Creating YXI] finished
[Installing yxi ~\MyWorkspace\build\yxi\DanceableLyrics.yxi into designer] started
[Installing yxi ~\MyWorkspace\build\yxi\DanceableLyrics.yxi into designer] . install_yxi
[Installing yxi ~\MyWorkspace\build\yxi\DanceableLyrics.yxi into designer] finished
If this is your first time installing these tools, or you have made modifications to your ayx_workspace.json file, please restart Designer for these changes to take effect. # <-- Done installing into Designer!
Once the command finishes, you can open Designer and find your tool under the Python SDK Examples tool category.1
Run in Designer

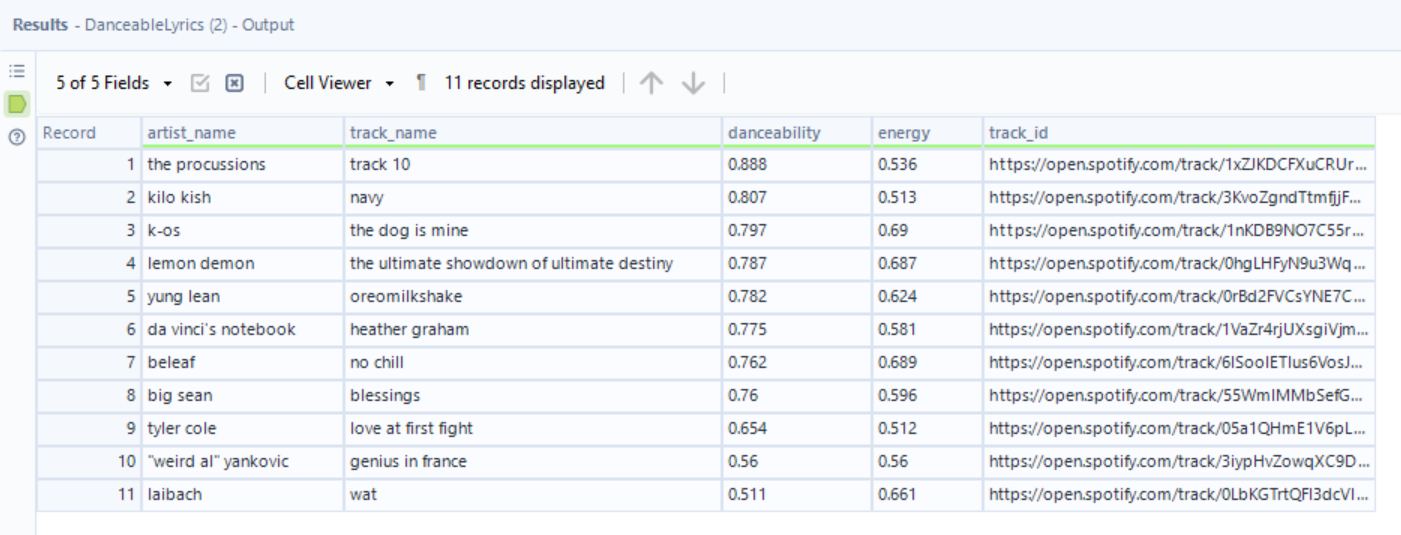

When you run this tool in Designer, it produces this output:
You can see that our top danceable track with the input lyrics provided is "Track 10" by The Procussions!
-
⚠️ If you created the plugin workspace with a non-default
Tool Category(from the Create a Workspace section), then your plugin will appear in the tool category that corresponds to the input that you passed toTool Category. ↩
