Advent of Code 2022 Day 12 (BaseA Style)

AlteryxCommunityTeam
Alteryx Community Team
Alteryx Community Team
Discussion thread for day 12 of the Advent of Code - https://adventofcode.com/2022/day/12
14 REPLIES 14
DataNath
17 - Castor
17 - Castor

Finally caught up on Day 12! Part 1 was incredibly quick to run... The time taken for part 2 to complete shall remain a secret other than to those that were present in the Alteryx friends & AoC virtual happy hour!



Spoiler

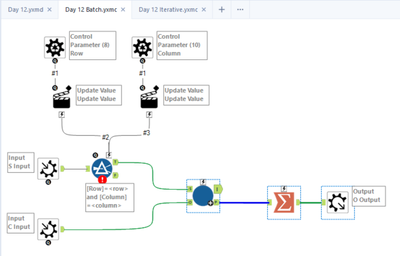

Batch macro to load in all a starts:

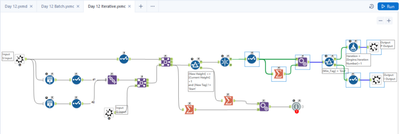

Iterative macro - generates possible next steps for the current tile until an end is met:


Part 1 was the same approach without the batch!



Edit: Upon reversing the logic and starting from the End - as suggested by @DavidP and others - my Part 2 actually ran in 18.6 seconds which is a whopping 1,490 times faster than my first attempt!

DaisukeTsuchiya
14 - Magnetar
14 - Magnetar
Spoiler






SeanAdams
17 - Castor
17 - Castor

OK - so this took 1.5 days but it's done.    Main snag was a silly logical error on part 2 where instead of running the part 1 once for each new starting point, I was running it once per each cell in each starting point.



Solution summary in spoiler below.



Spoiler
So - the key to part 1 is to do a path-finding algo.

Algo
- Start from a specific cell (s) that you want to investigate (and remember the least cost of getting to this cell).
             the first time round, this is only your S cell, and the min cost is 0
- Then figure out which cells you can potentially go to next
- Then look at these cells - if you've never been there before, or if you've now found a cheaper way of getting there than you had previously - then mark these as "good to investigate"
- Repeat from step 1

Eventually you will run out of cells to investigate, and you'll have the minimum cost of getting to every cell from the starting point.

Data Prep:
To do this - I did 2 stages of prep:

Firstly: take the puzzle input into a matrix of cells:





which looks like this:



BTW - using the cell ID instead of Row and Column comes in handy for speed.


Valid moves:
Then I wanted to figure out which were valid moves - so that during the working phase I didn't have to do this every time.



This is pretty simple - it just takes every cell; joins it to each of its neighbours and checks if the move is valid ( based on height).

This gives you a simple list of which transitions from cell X to cell Y are allowed.

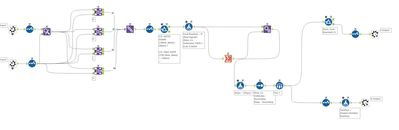

So - now we know the starting point, we know which moves are valid - now we just need to do the algo above:




Although this may look kinda complex - it's actually pretty practical:
- The top input is all the cells on the map - with some of them marked as "Investigate"
- The bottom input doesn't change - it's just a list of the valid moves

- Take these "investigate" cells and go to any neighbours which are valid moves.
      - if you've been there before via a different route, and this way is cheaper - then mark this neighbour for investigation next round
      - if you've never been there before - same
      - if this is more expensive than previous attempts - ignore this
- Join this back to the non-investigate nodes and repeat until you have nothing more to investigate

Part 2:

For part 2 I was SUPER lazy.    I just looked for every cell that had an 'a' in it, and marked this as the start "S" and ran part 1.    So essentially - this was just running part 1 x 1600 times with different starting points.





DawnDuong
13 - Pulsar
13 - Pulsar

I meant to post this earlier, but kept forgetting. Here it is, at last, the "reserve Dijkstra" macro that helps me solve both part 1 and part 2 together in 65 seconds :-) @Mildman

I used this same macro, with some modifications to solve for one or two other AoC too.
Cheers,
Dawn.

caitlynmcintyre
9 - Comet

just submitting my backlog of old challenges

Spoiler

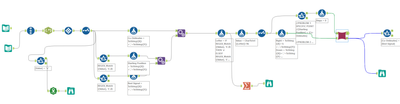

12 macro.png
