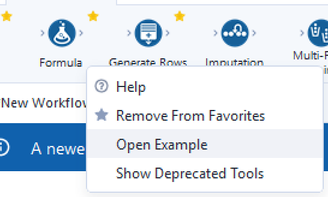

You may have noticed that almost all built-in tools in Alteryx have an example workflow you can open from the right-click menu:






But have you ever wondered why there’s no way to add an example to your own macro? Well… You actually can! Let me show how.



1. Craft a (very serious) macro



I’ve created an incredible macro that doubles any number:






The patent is pending on this one—please don’t steal my groundbreaking design.



Save this macro into your macros folder, so it appears in your Designer tool palette:






2. Create an example workflow




Here’s the important part: this workflow must be saved inside your Alteryx installation’s Learn One Tool at a Time folder:


C:\Program Files\Alteryx\Samples\en\02 Learn_one_tool_at_a_time
💡 If you’re using Designer in a language other than English, replace ‘en’ with your language code (e.g., ‘fr’ for French).

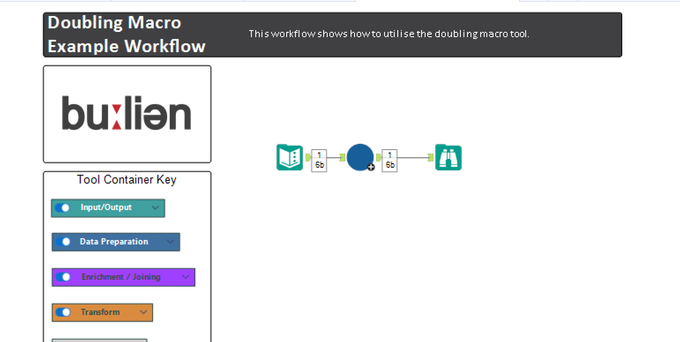

I created a new folder in here and saved my example workflow as:
C:\Program Files\Alteryx\Samples\en\02 Learn_one_tool_at_a_time\OC_Examples\Doubling_Example.yxmd

3. Edit your macro file



Right-click your macro file in File Explorer and choose Edit with Notepad (or Notepad++, if you know, you know)

Inside the <MetaInfo> section, look for these lines:




Replace them with something like this:






The key here is to set the file path to be a relative path from the Learn One Tool at a Time folder.



4. View your example workflow

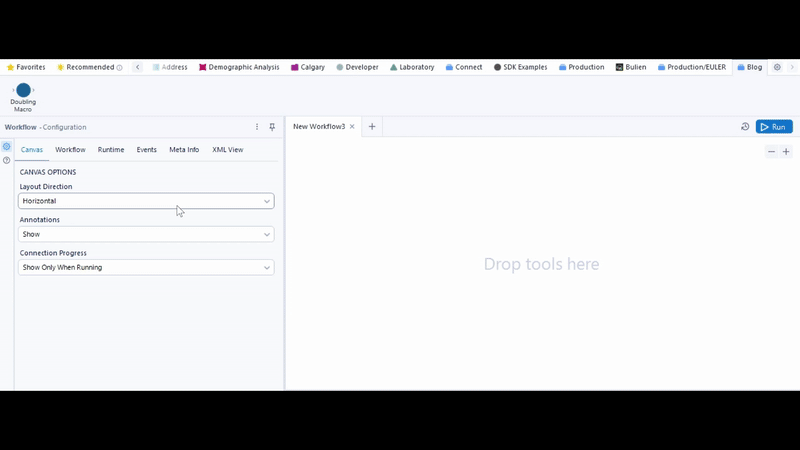

Boom. Now, when you right-click your macro in Designer and choose the Description text above, your custom workflow will open exactly like Alteryx’s built-in tools:






That’s it! You’ve now just unlocked an extra layer on top of your macro building skills. This is fantastic for:

  • Documenting your macros for teammates (We all know a Steve who needs guiding through a macro 3 times)
  • Provided guided demos alongside tools
  • Document edge cases/usages of your macros.



If you do try this, let me know what creative examples you add to your macros. I’m currently 2 days of development into a ‘triple any number’ macro, so that will be my next.
