[SHARING] Inputting CSVs with Truncations

[caltang]

Hi there!

I decided to write this piece here as a community post rather than a blog because I see a lot of input truncation issues with CSVs both in my job and in the community.

To set the scene, imagine you have a CSV file that looks like this:

To the naked eye, it seems normal and sure there's a CTRL + ENTER space in the Department column. Otherwise, the data looks fine-ish to be inputted into Alteryx. So, we just drop the file into the Designer, then run, and build. But, we run into an error:

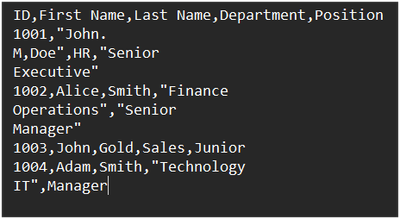

So what gives? The error actually tells us what happened. You see, the data that you are loading in is actually truncated and how Alteryx reads it will force it to be its own row, which is also seen if you open the CSV with Notepad or Notepad++ like so:

So this throws the input tool off, and although data still passes through sometimes for some cases, it is not productive to keep having that error at the start as the memory limit kicks in afterwards. For instance, you see the data still passing through here in this case:



So the question is, how do we solve this? The answer lies in the input configuration itself.

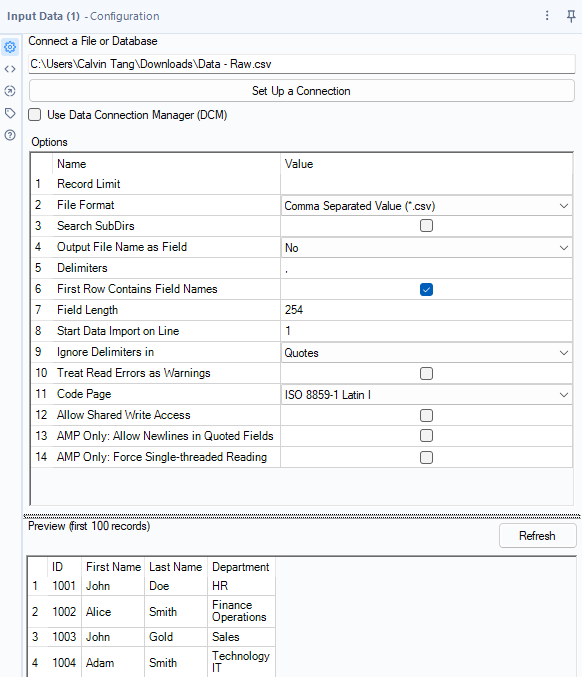

So, we can see that the configuration looks like the above. The preview looks decent as well, but we know from running it... it won't look like the preview in the results pane. To account for this, we need to set the configuration to look something like this:

By fixing the delimiters to "\0" rather than a "," or "|', it calls all the data as is and shows us how it looks like in a Notepad / Notepad++ environment. We also untick the First Row Contains Field Names so we get a fixed "Field_1" column name with our actual column headers as our first row. Then, the field length is also changed - in my case, I am making it to be 9999 just to make it as large as possible, but you can decide how large you want it to be.

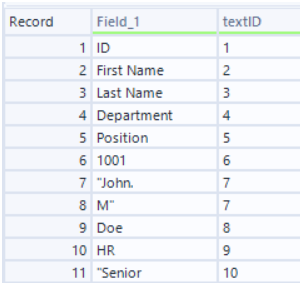

Once you do that, you will be able to run the workflow without an error, and the results pane showcases the result of what you would see in Notepad / Notepad++ environment. Now, how to structure it to be used? Simple, we do the following:

To see the workflow, I've exported a copy here in this post for you all to study. Again, there are many ways to parse it from here and you can simplify / skip some of my steps if you think you want to optimize it, but I designed it this way to show the flow better and how people can do it. Once you do it, you will get this result:

Then you can continue building from there! With a clean input and no errors, it makes your workflow building life much easier and more dyanmic to cater to different scenarios!

If this was helpful, drop a like and comment. Please feel free to share your own way in the discussion below. Also feel free to share this to people to help them solve their input truncations!

[flying008 · Accepted solution]

Hi, @caltang

If have only 2 lines, maybe can do this:

[caltang]

Cool! Yeah if it’s two lines we can do that as well if we know each truncation!

[PangHC · Accepted solution]

@caltang did it possible more than 1 column? i try it and it not working as expected.

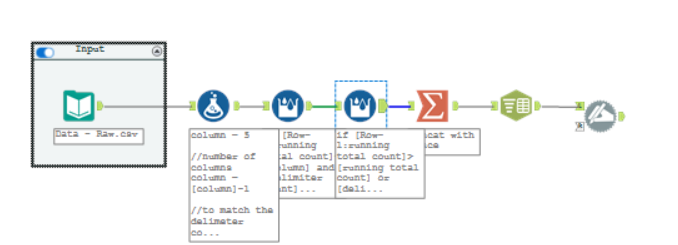

so i create 1 to adapt it. basically is count the delimiter.
if running total is match the total column than it is same record.

[caltang]

My use case is where one column is truncating and having that new row created.

If it’s more than 1, then we need to adjust it because the parent-child rows change - your workflow is also good! Thanks for sharing.

[PangHC]

another method.

just split to columns. then merge the Truncations text. use make column to convert back to table.

[caltang]

I like your first solution more - way better. In fact I’m using what you built in something I’m doing now, thanks @PangHC !

[NeoInfiniTech]

Hi @caltang and @PangHC,

I would like to propose another solution for this use case.

As I previously dealt with this issue many times, I was in search of a workflow that could reliably correct these new line issues, and I was able to find one in Alteryx Community. As much as I would like to credit the author who created the first version of this workflow, I was unable to find the original topic it was shared in as some time passed and I unfortunately didn't bookmark the topic.

The data used in this workflow is very close to @PangHC's version. The only difference is the position of a double quote (M",Doe instead of M,Doe").

There is also another workflow which detects the delimiter count in every row, accepts the one that occurs most frequently as the correct delimiter and provides the list of the rows that need to be corrected as an Excel list, which I might share later.

You will also notice that there is an additional Input Data tool below the original process, which is able to read in the data correctly without having to process the data further. It will also work properly if you enable the AMP Engine and run the workflow again. This is because the option "AMP Only: Allow Newlines in Quoted Fields" is selected, although the main process itself aims to provide a solution for the data where fields with newline character are not surrounded with quotes.

The original engine already supports reading in data with fields having newlines as long as they are surrounded with quotes. The same applies for AMP Engine if the option mentioned above is selected.

I hope this will be of help for the similar cases you might encounter in the future.

[caltang]

Thank you for sharing! I will look at it. I think it’s great you kept a copy - and sharing it here ensure it lives on a bit longer.
