How to bin data?

[mkhtran]

I have some data in the form of

Field1 (string)	Field2 (int)
foo	12
bar	78
baz	62

I'd like to add another Field that depends on Field2, which would work similar to a Formula tool with

Output Column: Category (string)

IF     [Field2] <= 25  THEN "TINY"
ELSEIF [Field2] <= 50  THEN "SMALL"
ELSEIF [Field2] <= 75  THEN "MEDIUM"
ELSEIF [Field2] <= 100 THEN "BIG"
ELSE                        "HUGE"
ENDIF

The problem is that my categories and cutoffs are coming as data from elsewhere in the workflow, like

Category Level	Category Name	Category Cutoff
1	TINY	25
2	SMALL	50
3	MEDIUM	75
4	BIG	100
5	HUGE	999

What's the best way to achieve this?

[Prometheus]

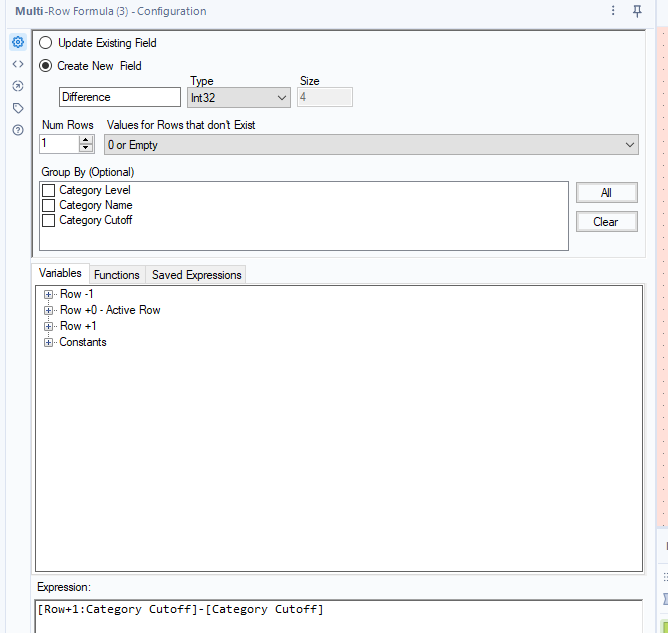

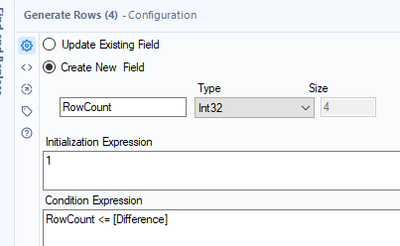

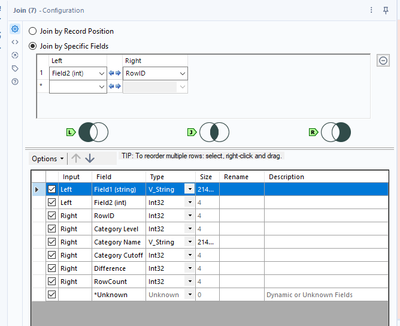

@mkhtran The first thing I did was create a field that showed the difference between a category cutoff and the next category cutoff. Next, I used a Generate Rows tool to create a row for every Category Cutoff until it created as many rows as was the difference. After that, I used a RecordID tool and then joined the original dataset to this data on Field2 (int) to RowID.

 

 

 

 

 

[Qiu]

@mkhtran
I would use the table of your cutoff to generate the range of cutoff for Hi and lo then use appen to generate all the combinations.

Then filter tool should filter out the records matching your criteria.

[OllieClarke · Accepted solution]

@mkhtran

Here's another approach using the Dynamic Replace tool, which doesn't require cross-joining your data

I use the multi-row to generate a boolean expression

Having already created a blank Category field in the original data stream, and written its name as data in the second stream, I can replace that value using the dynamic replace tool:

@Qiu's approach is easier, and requires fewer tools, but if you have a big dataset and lots of category values, you will create a lot of unnecessary data.

Ollie

[Qiu]

@OllieClarke
That is brilliant!

I am always not good at Dynamic replace and you have provide a very good sample.

[mkhtran]

I ended up with a solution similar to @Qiu's which worked ok for my dataset, but the Dynamic Replace is new to me and I definitely want to check it out now.
