Generating normal output and render tool output in same file

Dear Community ,

I have this issue while trying to generate , output tool data and render tool output in same file .

Whenever i generate the output , two sheets are generated :

1. Render tool output : All ok

2. Output tool : Empty .

Can someone help me to fix this .

Thanks.

Reporting

Accepted answers

Are you able to post a copy of the workflow and data?

I suspect one of the configurations is overwritting the file, and thus not taking into consideration the other output.

Hi ,

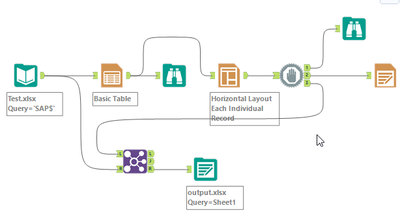

Here it is attached .

Thanks,

Pranesh

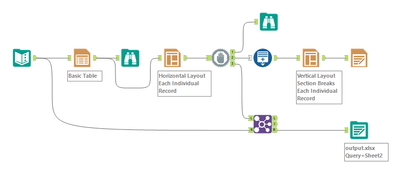

How about this workflow?

I output Sheet1 and Sheet2 by the Render Tool(Sheet2 is dummy) and then overwrite Sheet2 by the Output Tool. It's working fine for me.

The procedure is below.

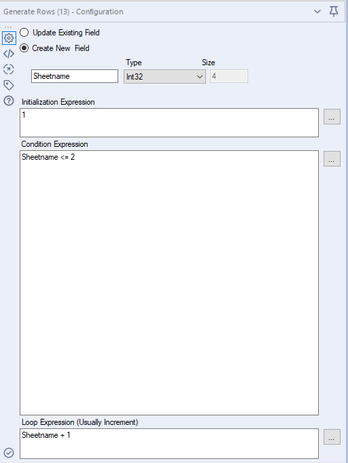

I output sheet1 and sheet2 by Render tool. Render tool output always "sheet1", but copy the record by Generate row as "Sheetname" Field.

And I add Layout tool and set "Vertical with Section Breaks" to Orientation.

Referring URL:
