Data Split by column values

Rashmigangadhara
5 - Atom

Hi ,



I`m looking for the dynamic filtering of the data set by one of the column values present in that data.

Eg : In the below data set I have data by Region, I need to split this data by region dynamically , and need that divided data sets for further analysis.



 Input Data

Unique ID

CoCd

Tower Name

Team Name

Region

100

10

TowerA

Finance

Region1

200

20

TowerA

Finance

Region1

300

30

TowerB

Procurement

Region2

400

40

TowerC

Finance

Region2

500

50

TowerD

HR

Region3

600

60

TowerA

Supplychain

Region3

700

70

TowerB

Supplychain

Region4

800

80

TowerC

Finance

Region4













Expected output :



Unique ID

CoCd

Tower Name

Team Name

Region



Unique ID

CoCd

Tower Name

Team Name

Region

100

10

TowerA

Finance

Region1



500

50

TowerD

HR

Region3

200

20

TowerA

Finance

Region1



600

60

TowerA

Supplychain

Region3




Unique ID

CoCd

Tower Name

Team Name

Region



Unique ID

CoCd

Tower Name

Team Name

Region

300

30

TowerB

Procurement

Region2



700

70

TowerB

Supplychain

Region4

400

40

TowerC

Finance

Region2



800

80

TowerC

Finance

Region4



With the current options, I will have to add the filters manually based on the number of regions , I want solution where I can replace this manual filter addition and even if more regions added in data that should be taken care dynamically.








Thanks







2 REPLIES 2
AndrewDMerrill
13 - Pulsar

It looks like you are just outputting each subset of data to its own file. This can all be done with a single Output Tool. Simply use the Formula Tool to create a new column labeled "File Path", which you can set to:

".\"+[Field1] + "Data.xlsx|||Sheet1" or whatever you want the file path to be.

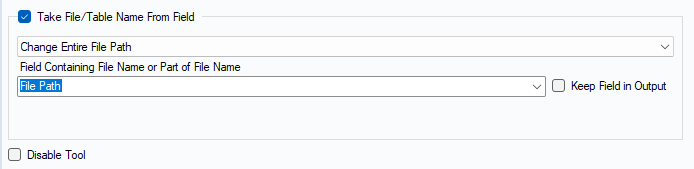

Screenshot 2.png

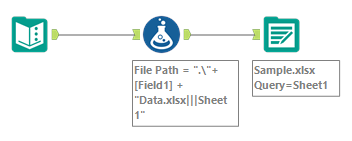

Screenshot 3.png

AndrewDMerrill
13 - Pulsar

I just saw that this same question was already asked and answered here:

https://community.alteryx.com/t5/Alteryx-Designer-Desktop-Discussions/Data-Split-by-Column-Values/td...
