Combine multiple rows into one row

[aaltaffer]

Hello!

I am attempting to combine two date fields so that they can be plotted on the same axis.

My current data set is formatted like this:

Incident	Assigned to	Opened Date	Resolved Date
12345	Joe	1/1/2017	1/6/2017
23456	Linda	2/2/2017	4/1/2017
34567	Bob	3/3/2017	3/7/2017

My hope is to format it like this:

Incident	Assigned to	Date	Date Type
12345	Joe	1/1/2017	Open
12345	Joe	1/6/2017	Resolved
23456	Linda	2/2/2017	Open
23456	Linda	4/1/2017	Resolved
34567	Bob	3/3/2017	Open
34567	Bob	3/7/2017	Resolved

Can anyone help me to do this? I cannot seem to find the right tool.

[Kenda · Accepted solution]

Hey @aaltaffer! I would split the data into two different streams, the left only keeping the open date and the right only keeping the resolved date. I would rename the date fields as just 'Date'. Then, I would add a Formula to each stream that creates a Date Type field with the value "Open" in the one stream and "Resolved" in the other. Adding a Union will result the format you're wanting. Hope this helps!

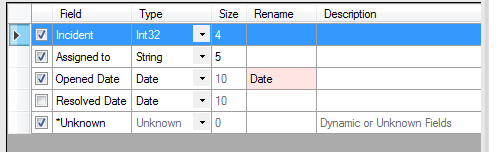

This is the one select tool's configuration.

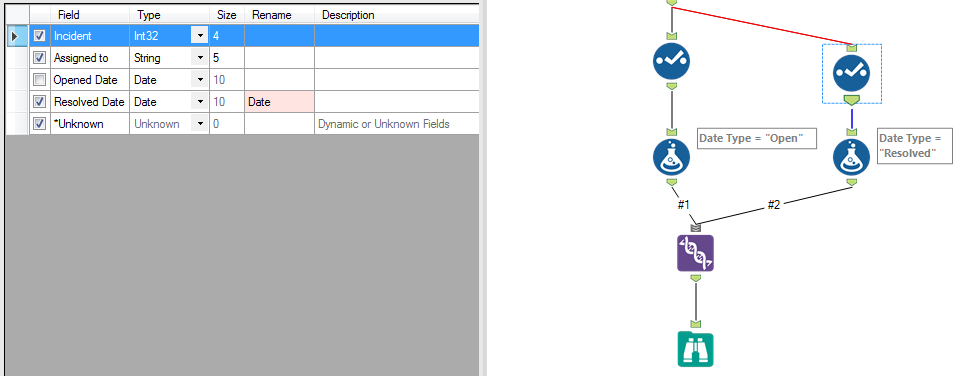

This is the other select tool's configuration along with the rest of the workflow.

[JoshKushner · Accepted solution]

Using the transpose and regex tool you can get the desired result

Flow:

Results:

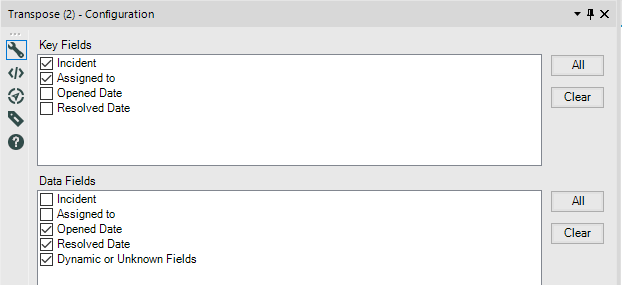

Transpose:

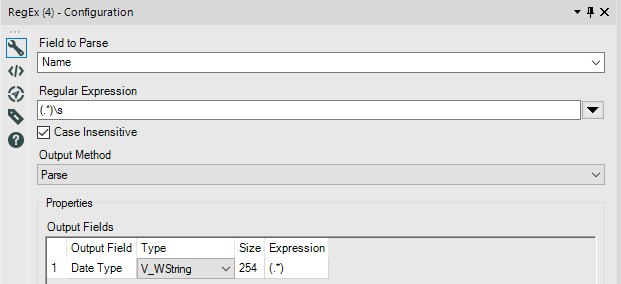

Regex:

[aaltaffer]

This worked! Thank you!

[aaltaffer]

Thank you this is another great solution
