Alteryx Graph with % in the Y axis

joaoferraz
5 - Atom

Hi,

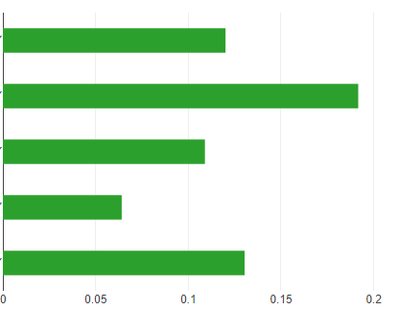

I have this chart in Alteryx and I'd like to add the values (as %) in the axis on the bottom and in the end of each green bar. Is it possible? As an example 0.05 would be 5% as in the first number of the axis.


PS: I Can't show you the other axis.





3 REPLIES 3
OllieClarke
15 - Aurora
15 - Aurora

Hey @joaoferraz here's one way of doing it:






Create 2 new fields, X

([value]*100)


And Label:

Tostring([X])+'%'

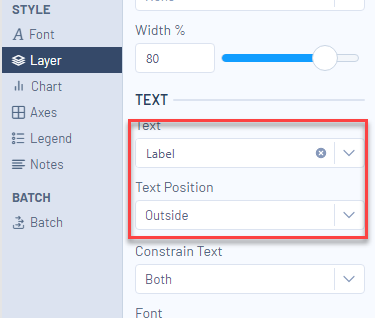

Then in the chart tool, use X as your X axis, and use Label as Text in the Style Layer option




joaoferraz
5 - Atom

Hello @OllieClarke ,

Thank you very much for your quick response.

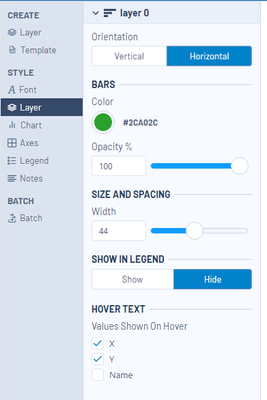

On the second image that you show, I don't see the same options as you.

Maybe you can share the Alteryx document you created for me to spot the diferences.




OllieClarke
15 - Aurora
15 - Aurora

Hey @joaoferraz



It might be a version issue, what version of Alteryx are you using?



I've attached my workflow here
