The Abacus add in is a collection of custom functions that make writing expressions in Alteryx easier or gives completely new functionality (such as variables). Originally created to make my life easier, they have grown into a powerful extension for Alteryx that can speed up creation of complicated formulae. They focus in on a few key themes:
Date and Time
Variables (new in v1.4)
In general, the functions have come either from my own wants for easier ways to do things or more commonly from ideas when answering questions in the community. This document gives an overview of the collection as it stands at version 1.4 (which should be released very soon).
Please always remember when using any SDK tool or custom function in a workflow, that the add in will then need to be installed on any machine you wish to run the workflow on.

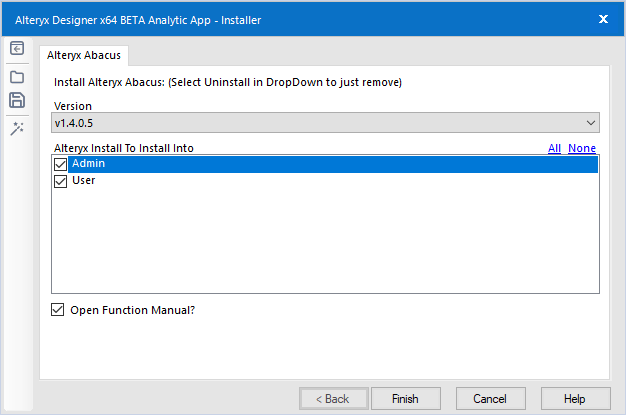

The best way to install the add in is to use the Analytic App Installer. This app should download from GitHub, then extract and install the add in into Alteryx. If it doesn't work, you can get the direct download following the instructions below.

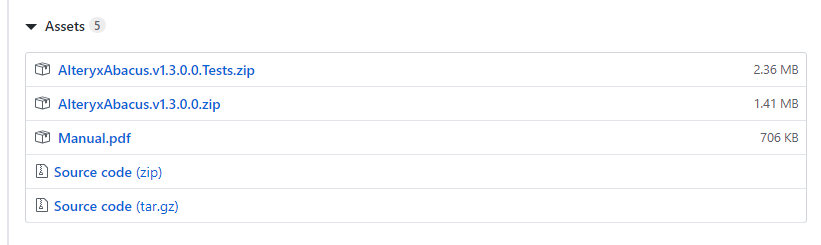

The newest release is always available from GitHub. In each release you will find the following kind of structure:
The two zip files contain the actual add in (AlteryxAbacus.v.184.108.40.206.zip) and the set of test workflows (AlteryxAbacus.v.220.127.116.11.Tests.zip). The Manual.pdf contains a snapshot of the documentation wiki produced when the release was packaged. Finally, the source code is included as both a zip and a tar.gz file.
To install onto Alteryx Designer (or Server), you just need to download the main zip file. You can then extract it and run Install.bat. This should install the functions into Alteryx. To uninstall, run Uninstall.bat. These scripts have been tested on Windows 10 but will need administrator access to run. There is also a couple of Windows 7 compatible scripts (Install Win7.bat, Uninstall Win7.bat) included in the zip file.
Date and Time
These functions make working with and manipulating dates easier. They break into a couple of collections:
DatePart: Gets part of a date or time
These return the specified part as a number. Some of the functions now have built-in equivalents.
DatePart(interval, dt): Replicates the SQL DatePart function, getting a specified part of the datetime input
Century(dt): Gets the century for a date
Year(dt): Gets the four-digit year
Quarter(dt): Gets the quarter of the date [1-4]
Month(dt): Gets the month number for a date or datetime [1-12]
Day(dt): Get the day of the month for a date or datetime [1-31]
OrdinalDay(dt): Gets the day of the year [1-366]
WeekNum(dt): Gets the week number of a Datetime, with Sunday as start of week and January 1st in Week 1 [1-53]
Weekday(dt): Gets the day of the week [Sunday (0) through to Saturday (6)]
Hour(dt): Get the hour part of a DateTime or Time [0-23]
Minute(dt): Gets the minute part of a DateTime or Time [0-59]
Second(dt): Gets the second part of a DateTime or Time [0-59]
Period Start and End: Gets the beginning or end of specified periods
It is often useful to be able to round a date down or up to the period start or end. These functions provide those capabilities:
YearStart(dt): Get First Day of Year
YearEnd(dt): Get Last Day of Year
QuarterStart(dt): Get First Day of Quarter
QuarterEnd(dt): Get Last Day of Quarter
MonthStart(dt): Get First Day of Month
MonthEnd(dt): Get Last Day of Month
WeekStart(dt): Get first Sunday before or equal to date
WeekEnd(dt): Get first Saturday after or equal to date
Parse and Create: Shorthand to make dates from strings or numbers
These are some quick functions for building dates either from strings, numbers, or other datetimes:
DateFromDMY(DMY): Parse a string in Day Month Year format to a Date (copes without leading 0s and different separators)
DateFromMDY(MDY): Parse a string in Month Day Year format to a Date (copes without leading 0s and different separators)
MakeDate(Year, Month, Day): Create a new date from Year, Month, Day
MakeDateTime(Year, Month, Day, Hour, Minute, Second): Create a new DateTime from Year, Month, Day, Hour, Minute, Second
MakeTime(Hour, Minute, Second): Create a new time from Hour, Minute, Second
ToDate(dt): Truncate a DateTime to a Date
ToDateTime(dt): Appends midnight to a Date to create a DateTime
ToTime(dt): Get the time from a DateTime, Date (defaults to 00:00:00) or a Time.
Other Date Functions: Business days and other bits and bobs
Last few functions handle working day calculations and any other miscellaneous date tools I needed:
DateAdd(Date,i,u): Equivalent to DateTimeAdd but returning a Date
BusinessDays(StartDate, EndDate): Number of weekdays between two dates
Workday(dt,days): Add or remove a specified number of weekdays to a date (similar to Excel's Workday function but no support for holidays)
IsLeapYear(Year): Is a year a leap year (takes a year not a date as an input use IsLearYear(Year([Date]))
Based on the Boost library, these functions allow computation of values on various probability curves:
ChiDist(X, DegreesOfFreedom): Compute CDF on Chi Squared distribution
ChiInv(P, DegreesOfFreedom): Compute inverse CDF on Chi Squared distribution
LogNormDist(X, Location, Scale, Cuml): Compute PDF or CDF on Log Normal distribution
LogNormInv(P, Location, Scale): Compute inverse CDF on Log Normal distribution
NormDist(X, Mean, StDev, Cuml): Compute PDF or CDF on Normal distribution
NormInv(X, Mean, StDev): Compute inverse CDF on Normal distribution
TDist(X, DegreesOfFreedom): Compute two tailed Student T distribution
TInv(X, DegreesOfFreedom): Compute inverse two tailed Student T distribution
RandTriangular(Prob, Min, Mode, Max): Produces a random number from a triangular distribution
These functions help with the generation of fake data.
RandomIPAddress(CIDR): Generates a random IP address, can be restricted to be within a CIDR block
RandomItem(Item1, Item2, Item3): Picks a random item from the input list (can be list of numbers or list of strings but must be one type)
RandomString(Pattern, CharSet1, ...): Generates a random string using a template to control format
These functions don't really fit in any other category.
Functions to handle dealing with NULL easier.
Coalesce(Val1, Val, ... 😞 Given list of values return first non null value (C++)
IfNull(Val1, Val2): If first value is null return second
Deg(Radians): Convert radians to degrees
Rad(Degrees): Convert degrees to radians
HexBinX(X, Y, R): Given an X,Y point and optional radius, get X co-ordinate of hexagonal bin's centre
HexBinY(X, Y, R): Given an X,Y point and optional radius get Y co-ordinate of hexagonal bin's centre
Aggregration Across Columns
Avg(Value1, Value2, ...): Average of a list of values ignoring NULL
Count(Value1, Value2, ...): Count of a list of values ignoring NULL
Sum(Val1, Val, ... 😞 Sum of a list of values ignoring NULL
A couple of functions to convert to and from Roman numerals (based on an idea from Ken Black)
ToRoman(Value): Given a number between 0 and 5000, convert to Roman numerals
FromRoman(Value): Given Roman numeral convert to a number
This is a specialist function to allow for a simple VLookup style join. If you take a list of values in ascending order and join together into a comma separated string, then this function will return first value equal to or above the input value.
RangeJoin(Value, RangeCSV): Finds the first value in the RangeCSV parameter which is greater than or equal to the Value argument.
General Mathematical Functions
Int(Value): Rounds a number to nearest integer either equal to the number or closer to 0.
Modulo(Dividend, Divisor): General Double Based Modulo function
Quotient(Dividend, Divisor): Returns the integer part of a division
Sign(Value): Determines the sign of a number (-1 if less than 0, 1 if greater than, 0 otherwise)
Phi(): Returns the golden ratio constant.
General String Functions
FindStringLast(String, Target): Gets the position from the left of the last instance of a term in a string
LeftPart(String, Separator): Gets the text before the first instance of a separator
RightPart(String, Separator): Gets the text after the first instance of a separator
Split(String, Delimeter, Index): Splits a string into tokens and then returns the specified instance
These are quite specialised but make development of new functions or advanced formulae easier.
Version(): Gets the major and minor version of the Alteryx Engine as a number
LogToFile(ReturnValue, FileName, Message): Write a message to a log file
ReportError(Condition, Message, ReturnValue): Raise an error from a formula if a condition is met, otherwise return a specified value
Variables are brand new in version 1.4 and add a whole new dimension of capabilities within formula tool. You can do things like implement a Newton Raphson solver using the generate rows tool or create a grouped running total in a formula tool without resorting the data. They are very experimental so please use with caution. Documentation on these new functions is also not yet complete.
Variables come in 3 types:
Number (stored as a double but can be read from any numeric type)
String (stored as a Unicode value but any text or datetime field as input)
List (a resizable array of values allowing addition, removal and random access)
Variables exist for the execution of a workflow and can be passed between tools. I have not done sufficient experimentation with macros to know how they play with these. The list of functions for working with variables is:
VarPrint(): Lists all current variable names and values to a string table.
VarReset(): Clears the internal caches of all variables. Can take a Key parameter to delete just that variable.
VarNum(Key[, Value]): Retrieves (if no Value argument passed) or stores a number value in the Key variable.
VarNumExists(Key): Returns true if a number variable exists, false otherwise.
VarText(Key[, Value]): Retrieves (if no Value argument passed) or stores a string value in the Key variable.
VarTextExists(Key): Returns true if a string variable exists, false otherwise.
Interacting with a list of values requires some more functions. You need the ability to check the list exists, get the length, access a value, set a value, and delete a value. Indexes start from 0.
VarListExists(Key): Returns true if a list variable exists, false otherwise.
VarListLength(Key): Returns the current length of a list if it exists, or NULL if the list does not exist.
VarListAdd(Key, Value): Adds an item to a list variable (creating a new list if needed) at the end of the list.
VarListInsert(Key, Index, Value): Inserts an item into a list (creating a new list if needed) at specified index. If Index is negative accesses from the end of the array backwards.
VarListSet(Key, Index, Value): Sets an item in an existing list at specified index. If Index is negative accesses from the end of the array backwards.
VarListRemove(Key, Index): Removes an item from a list variable at specified index. If Index is negative accesses from the end of the array backwards.
VarListGet(Key, Index): Gets a value from a list variable at the specified index. If Index is negative accesses from the end of the array backwards.
An Overview of the Code Behind
This whole project is open source and if you would like to contribute, I would value the submission. All of the code is open source and available on GitHub, below is a quick overview of the code and set up I use to develop the functions.
These functions are built on top the Custom Function SDK. There are two ways to create a new function - either in XML or in C++. The code is structured as follows:
The XML files contain the function definitions (both for the macro functions and the C++ based ones). They are separated by category. The C++ code is all contained in a single Visual Studio project. In general, I again keep each set of functionalities in its own cpp file making them easier to handle.
In terms of tooling to work on these, you will need a reasonable text editor (I would recommend Visual Studio Code) and a copy of Visual Studio to work on the C++ code (Community edition is fine). In addition, I use the boost library (currently I use v1.67) which you will need to download and reference for the C++ code.

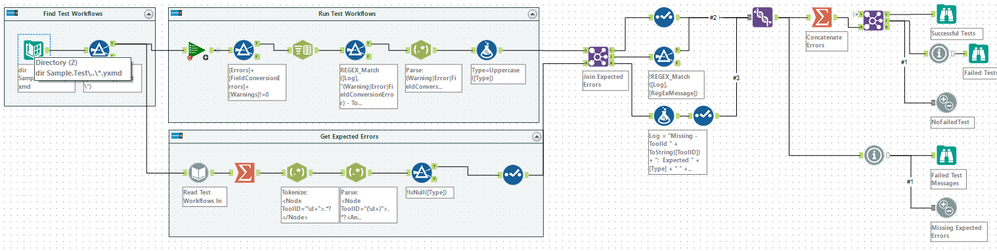

Testing is crucial when creating functions. I use the CReW macros to provide the List Runner macro. The following scripts and macros are in the repository to allow local testing:
The Install - Debug.bat, Install - Release.bat and LinkDebug.ps1 will either install the output of a debug or release build into Alteryx. The LinkDebug script establishes a symbolic link allowing quick modification while developing. The RunUnitTests.ps1 script will run the RunUnitTests.yxmd workflow in all installed instances using the AlteryxEngineCmd.exe. This workflow seeks all workflows in folders ending with .Test in the folder name. In general, I keep a test workflow for each function in a folder named after the XML file containing the functions. For example, to test the StringUtils:
A documentation entry has been created in the wiki

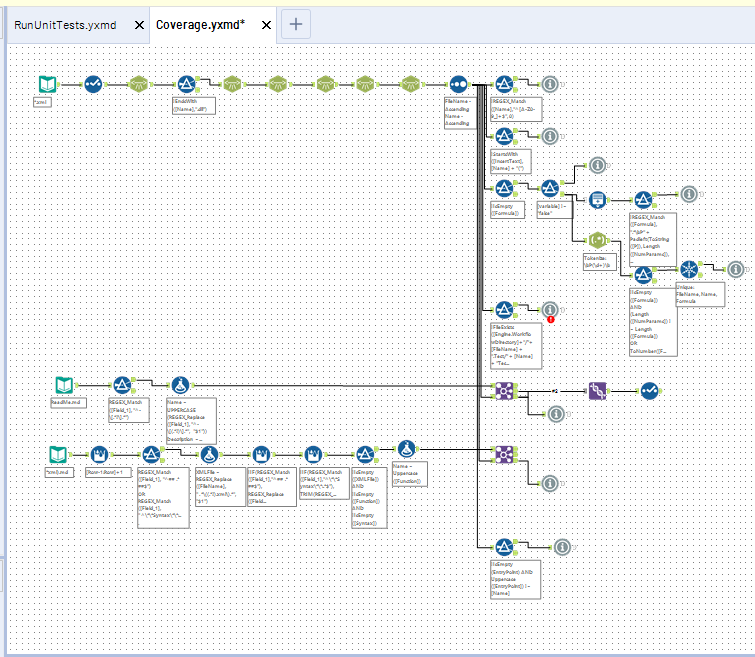

This workflow uses a lot of convention to ensure that the add in is well-tested and documented. By using this technique, I have found various issues that I had missed in previous versions. While I expect some work would be needed, the Coverage.yxmd workflow could easily be adjusted to check any custom function add in.
The last of the project consists of tools for packaging and releasing:
These scripts are responsible for creating a new release package. This will locate Visual Studio and run a build of the C++ code in Release mode, before using the local testing set up to install and run the unit tests. Assuming this is successful, it will then create a zip file containing all the XML files and the compiled DLL file and the following installation scripts:
These scripts allow for manual installation if the analytic app fails. The final steps of creating a release is to package up the test workflows into their own zip file and to create a PDF document based on the wiki pages (this is done using Pandoc).
Hopefully these functions are helpful, and the notes here give you some details on how to use them and how they have been built and tested. If you have any issues or questions, reach out to me on the community (@jdunkerley79) or raise an issue on GitHub.
Likewise, if you would like to contribute with new functions or code corrections, I will welcome the Pull Requests!
