Writing to a table based on Lookup Values

[jay_viz]

I have a table where I am trying to update its values based on a lookup table. I have tried some join logic and does not seem to work.. How will I be able to achieve this ?

Base Table:

State	City	Revenue	Profit
NY	East	100
NY	West	200
CA	Central	400
CA	Mid	200

Lookup Table

State	City	Profit_Lkp
NY	East	200
NY	West	50
CA	Central	75

Desired Output

State	City	Revenue	Profit
NY	East	100	200
NY	West	200	50
CA	Central	400	75
CA	Mid	200

I have attached base workflow as well.

[PangHC]

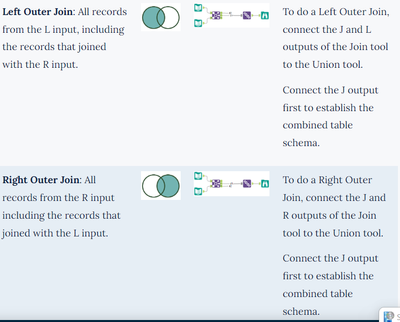

Join Tool | Alteryx Help

when handle any failed to vlookup (or N/A). you can add a union afterward.

[jay_viz]

I was looking for how will I overwrite/update base table's column with value from lookup table.

[PangHC · Accepted solution]

as you already 7-meteor rank. I hope you can learn/explore first and only ask when you have no clue.

so, it was vlookup profit. to table 1. hence simple join will do, which you have did. but it left one. which not in table2.

hence, union tool is used to add back the data. (the CA mid).

now, you should have "profit" and "Profit_Lkp", just use select tool to remove "profit" and rename "Profit_Lkp" to "Profit".

if original have data in table 1 (i.e. CA - Mid's profit is 100), move the select tool earlier. (i left this to you, you can do it.)

hope you can learn something here.

[jay_viz]

Yes I was planning for that, but was curious if there are better methods.. Sometimes we have to ask and learn from the best.
