Sort Columns of Cross Tab Output

[jdallen75]

Maybe I missed this in the configuration somewhere, but is there a way to sort the column headers (alphabetically) resulting from the Cross Tab tool?

Upstream of the Cross Tab, I tried sorting the rows that would become the Cross Tab column headers (ie: Item Type), but this didn't help.

Thanks!

[MilindG]

@jdallen75 Perhaps you can use Select tool to reorder your columns?

[jdallen75]

I thought of that, but the list of columns is not available at design time - only dynamically at run-time due to how the Cross Tab functions.

[alexnajm · Accepted solution]

The Cross-Tab tool will automatically reorder columns in alphabetical order!

[PangHC]

@jdallen75

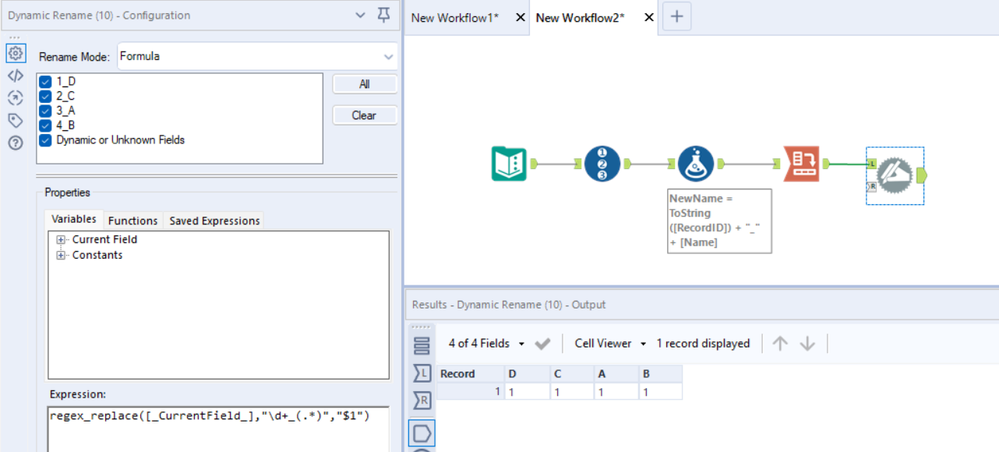

you can create an order column and add them to the font of column name.

then use rename tool to remove the prefix name.

 

[flying008]

@PangHC

Just so so ! 👍

[PangHC]

@flying008 @alexnajm

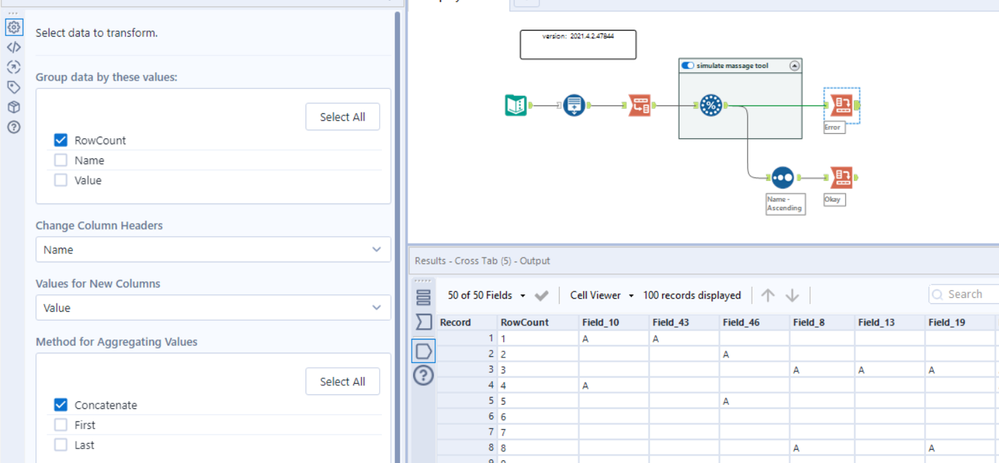

i just have a similar situation. can you try on the workflow i attached?

@jdallen75can you try the sort for only item type? it works for me.

[flying008]

Hi, @PangHC

What are you want output ?  The random input only get random output , cross-tab tool can't order it.

[PangHC]

@flying008 it an example that crosstab is not automatically reorder columns in alphabetical order.

I wonder why this happen

beside, it still not sort accordingly even i turn off AMP.

[flying008]

Hi, @PangHC

1- In fact , the Cross-Tab tool will automatically reorder columns in alphabetical order, whatever use AMP.

2- In your case, because the 'Random % Sample' macro use a rand() function to process data, then output  uncertain result at each run. unless you use a fix tool to sort it .

3- I repeat your work in v2021.2.x, get same result like disarray fields between output-1 and output-2. so maybe this is a bug of version?
