Hello,

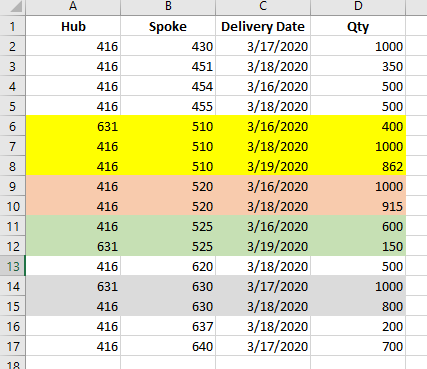

I would like to use the Report tool to format rows when the same value appears in another row. In my specific example, I want to highlight those warehouses that have multiple deliveries coming up. Ideally I want the tool highlight in different colors. Thoughts?
Solved! Go to Solution.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
@kheuer - A simple solution would be to
- To identify records with similar deliveries upstream to the table tool
- Using this identifier write a logic in the Table tool to color records.
- Unselect this identifier in the Table tool.
I dont think you can automatically assign different colors to different buckets. You might have to manually assign colors to these buckets.
Attached is a sample solution for your reference. Hope this helps.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @kheuer
In the attached example, you'll see how I identified duplicate records, then generate a random color to be assign to each unique value. This process randomizes the RGB values, so there is a possibility for duplication, so I included an alternative where you could set a list of RGB values to use.
Like @AbhilashR suggested, these color assignments need to be determined ahead of time and placed in a field that will not be displayed by the Table output. Here's an example expression to specify a specific background colors to be used in the Formula options of Row Rules in the Table tool:
"background-color:rgb(255,255,255);"
Where the RGB values are integers between 0-255. A list of available formatting expressions can be found here in the documentation:
https://help.alteryx.com/current/TableStyleRules.htm
With this knowledge, we now know how to prepare RGB values for the Table tool to use.To randomly assign the 0-255 RGB values, I used the following expression:
"rgb("
+ToString(Round(Rand()*255,1))+","
+ToString(Round(Rand()*255,1))+","
+ToString(Round(Rand()*255,1))+")"
If you want less intense colors (to avoid overwhelming the visual appearance of the table), you could limit the randomized values to only 155-255 with the following alternative:
"rgb("
+ToString(Round(155+Rand()*100,1))+","
+ToString(Round(155+Rand()*100,1))+","
+ToString(Round(155+Rand()*100,1))+")"
Check out the attached workflow for an example of all this in action.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
@CharlieS - Learnt something new today - "background-color:"+[Color]+";"
I have been using Alteryx for a few years now, but spending dedicated time and answering question has in-turn taught me so much more than I had imagined. Thank you very much for posting this solution!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Thank you for the solution!
