Dynamic profiling tool

[Eivind]

Just arrived in the Alteryx community - Happy to be here!

I am attempting to build a data profiling tool for an SQL database, that can read a variable amount of tables with an uneven number of columns in each table. The workflow should then be able to run a set of operations on each column (count blanks, count distinct, etc...) and output the results for each column into an Excel spreadsheet or similar.

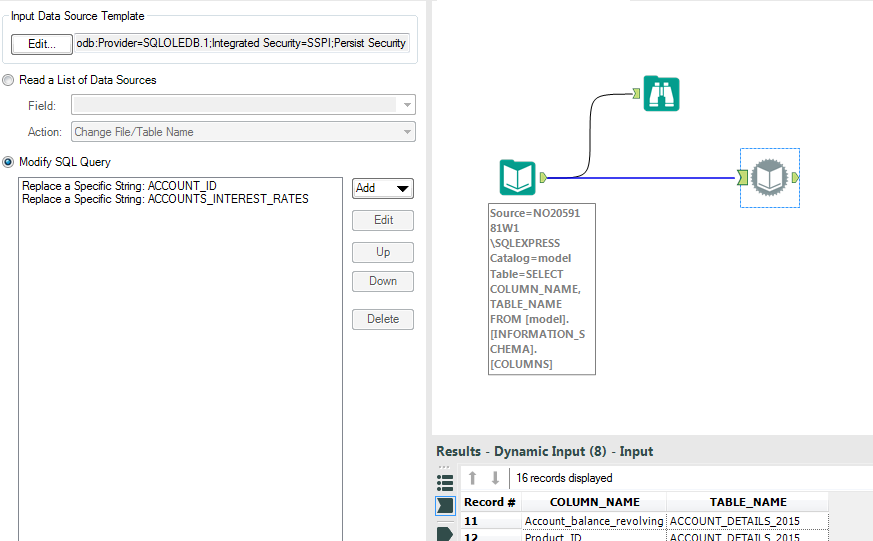

I have done some testing with the input and dynamic input tools, and arrived at the workflow underneath. As you can see, there is an input node that retrieves the user-defined field and table-names in the database, and feeds them into a dynamic input node that loops through all fields and tablenames. However, when I try to link this up to anything else, I get trouble with several error messages, as well as the fact that I cannot find a way to dynamically feed the output from my dynamic input node into a formula node.

Is there anything I have overlooked in how to do this, or any alternatives that would be more sensible to make my dynamic profiling tool?

Hi,

[jdunkerley79]

Interesting idea - will play with at Lunch

Think you might need to be careful around different field types. I think you might need a couple of different paths for each of the type.

[jdunkerley79]

Attached my lunchtime playing.

You need to cast everything a fixed type then you are ok.

I cast both TableName and ColumnName in SQL to a nvarchar(256).

The value I cast to a 2048 block string. One optimsation would be to read max length needed from the input columns and set that.

The template query I used was:

Select
CONVERT(NVARCHAR(256), '[GLOBAL_Matter]') TableName,
CONVERT(NVARCHAR(256), '[CaseCategory_ID]') ColumnName,
CONVERT(NVARCHAR(2048), [GLOBAL_Matter].[CaseCategory_ID],120 ) Value
From [GLOBAL_Matter]

I adjusted the SQL table column query to:

select '[' + TABLE_SCHEMA + '].[' + TABLE_NAME +']' TableName,
       '[' + COLUMN_NAME + ']' ColumnName,
	   DATA_TYPE,
	   CHARACTER_MAXIMUM_LENGTH,
	   NUMERIC_PRECISION
from INFORMATION_SCHEMA.COLUMNS

By surrounding with [] I think safer for this one.

Hope this helps!

[Eivind]

Thanks for your advice! This seems a good step closer to a solution. However, I keep getting an error message in relation to the [Global_Matter]. Any thoughts?

[jdunkerley79 · Accepted solution]

Was just the sample table I used.

Have amended to:

select CONVERT(NVARCHAR(256), 'INFORMATION_SCHEMA.COLUMNS') TableName,
 CONVERT(NVARCHAR(256), 'COLUMN_NAME') ColumnName,
 CONVERT(NVARCHAR(256), COLUMN_NAME, 120) Value
from INFORMATION_SCHEMA.COLUMNS

You will need to change connection strings in both input and dynamic input (as points to my laptops local SQL Server)

Otherwise should work out of the box now I hope
