Python script not populating all of SQL query using Alteryx, ok in Visual Studio

Question

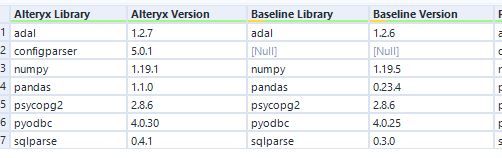

An odd outcome of a query into MS's APS SQL Server, where one column returns as nulled values on my machine where Alteryx is running, and from a peers machine where the result of Visual Studios run happened is complete. Thinking a likely culprit was a difference in libraries, I pulled that from both, shown here:

I was "hoping" that on the my local machine I had outdated libraries, but just the opposite is the case. The second area I covered was ODBC drivers, using both "SQL Server Native Client 11.0" and "ODBC Driver 17 for SQL Server" - that offered no difference.

The top snip shows the data that is not being returned, the bottom the result from VS -

Before delving super in-depth on the query itself being run, I just wanted to see if this has been encountered by anyone else.

I can certainly install deprecated versions of these libraries and import them to show a true like-for-like, it just seems a bit counter intuitive that a subsequent version would have less functionality from a driver pov.

This is the necessary Alteryx info, running it elevated makes no difference either -

Thanks,

Sean

salbol1 · Answer

This is the python script that is being run. The purpose of this module is to identify all the sources and sub-sources that feed Tableau PDS creation, or custom SQL that is performed against these base views and tables. The intent is to be able to see in near real time the status' of the datasources feeding workbooks, and hence, dashboards so we may provide a comprehensive view of the health of the data we are providing to our end users. These outputs feed timestamping we include as standard on our dashboard ribbons, and can alert the respective dashboard owners (as well as support teams) when a system based source is not refreshing as it should be.

import psycopg2
import pyodbc
import configparser
import os
import os.path
import sys
import subprocess
import smtplib
from psycopg2 import Error
import datetime as dt
import smtplib
import shutil
import adal
import pandas as pd
import numpy as np
import re
import sqlparse

# APS Database connection information left out

Server = 'xxx.xxx.xxx.xxx,yyyyy'

database = 'NOVO_DW_PROD'

username = 'XXXXXXXXXXX'

password = 'xxxxxxx'

driver = '{SQL Server Native Client 11.0}

try:

# Connect to an existing database
connection = pyodbc.connect('DRIVER='+driver+';SERVER='+server+';PORT=1433;DATABASE='+database+';UID='+username+';PWD='+ password)

# Create a cursor to perform database operations
cursor = connection.cursor()

# Executing a SQL query to get the View definitions
cursor.execute(""" SELECT REPLACE(REPLACE(DB_Schema, '[',''),']','.') + REPLACE(REPLACE(Name, '[',''),']','') AS ViewName
, Definition
FROM(
select 'novo_dw_prod.' + lower(SUBSTRING(definition, CHARINDEX('[',definition), (CHARINDEX(']',definition) - CHARINDEX('[',definition)+1))) AS DB_Schema
, lower(SUBSTRING(definition, CHARINDEX('[',definition,CHARINDEX('[',definition)+1), 1+ CHARINDEX(']',definition,CHARINDEX(']',definition)+1) - CHARINDEX('[',definition,CHARINDEX('[',definition)+1))) AS Name
, lower(replace(replace(definition,'[','' ),']','')) as definition
from NOVO_DW_PROD.sys.sql_modules
UNION ALL
select 'eris_hana_prod.' + lower(SUBSTRING(definition, CHARINDEX('[',definition), (CHARINDEX(']',definition) - CHARINDEX('[',definition)+1))) AS DB_Schema
, lower(SUBSTRING(definition, CHARINDEX('[',definition,CHARINDEX('[',definition)+1), 1+ CHARINDEX(']',definition,CHARINDEX(']',definition)+1) - CHARINDEX('[',definition,CHARINDEX('[',definition)+1))) AS Name
, lower(replace(replace(definition,'[','' ),']','')) as definition
from ERIS_HANA_PROD.sys.sql_modules
)T
where REPLACE(REPLACE(DB_Schema, '[',''),']','.') + REPLACE(REPLACE(Name, '[',''),']','') is not null
""")
# Fetch result
record = cursor.fetchall()

# Executing a SQL Query to get the Last Field from the Information Schema
cursor.execute(""" SELECT lower(TABLE_CATALOG+ '.' +TABLE_SCHEMA + '.' + TABLE_NAME) AS ColumnName
, Column_Name
FROM NOVO_DW_PROD.INFORMATION_SCHEMA.COLUMNS
INNER JOIN (SELECT lower(TABLE_CATALOG+ '.' +TABLE_SCHEMA + '.' + TABLE_NAME) AS CName
, max(ordinal_position) AS Pos
FROM NOVO_DW_PROD.INFORMATION_SCHEMA.COLUMNS
WHERE TABLE_SCHEMA = 'DWH'
GROUP BY lower(TABLE_CATALOG+ '.' +TABLE_SCHEMA + '.' + TABLE_NAME))P ON P.CName = lower(TABLE_CATALOG+ '.' +TABLE_SCHEMA + '.' + TABLE_NAME)
and P.Pos = ordinal_position
UNION ALL
SELECT lower(TABLE_CATALOG+ '.' +TABLE_SCHEMA + '.' + TABLE_NAME) AS ColumnName
, Column_Name
FROM ERIS_HANA_PROD.INFORMATION_SCHEMA.COLUMNS
INNER JOIN (SELECT lower(TABLE_CATALOG+ '.' +TABLE_SCHEMA + '.' + TABLE_NAME) AS CName
, max(ordinal_position) AS Pos
FROM ERIS_HANA_PROD.INFORMATION_SCHEMA.COLUMNS
WHERE TABLE_SCHEMA = 'DWH'
GROUP BY lower(TABLE_CATALOG+ '.' +TABLE_SCHEMA + '.' + TABLE_NAME))P ON P.CName = lower(TABLE_CATALOG+ '.' +TABLE_SCHEMA + '.' + TABLE_NAME)
and P.Pos = ordinal_position
""")
# Fetch result
LastField = cursor.fetchall()

# Executing a SQL Query to get the views to run the crawler on
cursor.execute(""" SELECT DISTINCT [Workbook Id], [APS Views], [Workbook Name], [Project Name]
FROM DWH.VW_MNBO_Rept_Tableau_WB_Datasource
""")

apsViews = cursor.fetchall()

# Creating a dictionary to map the last field name for the views
lastfieldDf = pd.DataFrame.from_records(LastField, columns = ['View Name', 'Last Field'])
lfdict = lastfieldDf.set_index('View Name')['Last Field'].to_dict()

# Creating a lookup for View definitions and cleaning up the comments from the Definition using sqlparse
df = pd.DataFrame.from_records(record, columns = ['View Name', 'Definition'])
df.set_index('View Name', inplace = True)
df['Definition'] = df['Definition'].map(lambda x: sqlparse.format(x, strip_comments = True))

# Create an output file of all the datasources the crawler needs to run on
apsViewsDfAll = pd.DataFrame.from_records(apsViews, columns=['WB Name','Main', 'WB', 'Project Name'])
apsViewsDf = apsViewsDfAll[['WB Name', 'Main']]
apsViewsDf.to_csv('C:\Users\******\Desktop\APSCrawler\datasources.csv')

# Read in the datasources as a df
df = pd.read_csv('C:\Users\*********\Desktop\APSCrawler\datasources.csv')
##df.head()

Alteryx.write(apsViewsDf,1)

# Perform some data cleansing
df['DS'] = df["Main"].str.split(" ", 1, expand=True)[0]
df = df[['WB Name', 'DS']]
df['DS'] = df['DS'].str.replace('novo_dw_prod.vw', 'novo_dw_prod.dwh.vw')
df['DS'] = df['DS'].str.replace('+', '')
df = df[df['DS'].str.startswith('novo') | df['DS'].str.startswith('eris') ]

# Main execution of looping to get the fundamental views
reviewd_list = []

limit = 10
cnt = -1

dfmain = pd.DataFrame(columns = ['Views', 'WBDS', 'Parent', 'WB'])

while cnt < limit:
cnt +=1
if cnt == 0:
for j in df['WB Name']:
for i in df[df['WB Name']==j]['DS']:
dict_test = {}
reviewd_list.append(j+' '+i)
try:
stri = df.loc[i,'Definition']
# stri = sqlparse.format(stri, strip_comments = True)
except:
continue
lst = []
lst.append(re.findall('novo_dw_prod.dwh.\w+', stri))
lst.append(re.findall('eris_hana_prod.dwh.\w+', stri))
lst.append(re.findall(' dwh.\w+', stri))
lst = [item.replace(' ','novo_dw_prod.') for sublist in lst for item in sublist]
dict_test[j+';'+i] = list(set(lst))
dfcat = pd.DataFrame.from_dict(dict_test)
dfcat['WBDS'] = j+';'+i
dfcat.columns = ['Views', 'WBDS']
dfcat['Parent'] = i
dfcat['WB'] = j
dfmain = pd.concat([dfmain, dfcat])
dfmain = dfmain[dfmain['WBDS'] != dfmain['WB']+';'+dfmain['Views']]

else:
for j in dfmain['WB']:
for i in dfmain[dfmain['WB']==j]['Views']:
dict_test = {}
lst = []
if j+' '+i in reviewd_list:
continue
else:
reviewd_list.append(j+' '+i)
try:
stri = df.loc[i,'Definition']
# stri = sqlparse.format(stri, strip_comments = True)
lst = []
lst.append(re.findall('novo_dw_prod.dwh.\w+', stri))
lst.append(re.findall('eris_hana_prod.dwh.\w+', stri))
lst.append(re.findall(' dwh.\w+', stri))
lst = [item.replace(' ','novo_dw_prod.') for sublist in lst for item in sublist]
dict_test[j+';'+i] = list(set(lst))
dfcat = pd.DataFrame.from_dict(dict_test)
dfcat['WBDS'] = j+';'+i
dfcat.columns = ['Views', 'WBDS']
dfcat['Parent'] = i
dfcat['WB'] = j
dfmain = pd.concat([dfmain, dfcat])
dfmain = dfmain.drop_duplicates()
except KeyError:
continue
dfmain = dfmain[dfmain['WBDS'] != dfmain['WB']+';'+dfmain['Views']]

dfmain = dfmain[['WB', 'Views', 'Parent']]
dfm_orig = df
dfm_orig.columns = ['WB', 'Views']
dfm_orig['Parent'] = ''
dfmain = pd.concat([dfmain, dfm_orig])
dfmain['Last Field'] = dfmain['Views'].map(lfdict)
dfmain = dfmain[dfmain['Last Field'].notna()]

wbnameIDdict = apsViewsDfAll.set_index('WB Name')['WB'].to_dict()
wbprojectIDdict = apsViewsDfAll.set_index('WB Name')['Project Name'].to_dict()
dfmain['Workbook Name'] = dfmain['WB'].map(wbnameIDdict)
dfmain['Project Name'] = dfmain['WB'].map(wbprojectIDdict)
dfmain.columns = ['WB ID', 'Views', 'Parent', 'Last Field', 'Workbook Name', 'Project Name']

dfmain.to_csv('C:\Users\*********\Desktop\APSCrawler\Script3_output.csv')

except (Exception, Error) as error:
logFile = 'C:\Users\*********\Desktop\APSCrawler\Log'+'Error_Log_' + strftime("%a %d/%m/%Y") + '.txt'
if os.path.exists(logFile):
append_write = 'a' # append if already exists
else:
append_write = 'w' # make a new file if not
f = open(logFile,append_write)
f.write(filename + "-" + error + '
')
f.close()
finally:
if (connection):
cursor.close()
connection.close()

TrevorS · Answer

Hello @salbol1
Thanks for posting to the Community!
It's hard to judge what's going on since we don't see your python script or your workflow.
While our support team cannot assist you with your python, they may be able to help troubleshoot why the tool isn't working correctly for you.
I would recommend opening a case with Support to see if they can help troubleshoot the Alteryx side of this issue.
Thanks!
TrevorS
