Standard Macro Issue?

Question

I was attempting to clean up an Alteryx workflow by injecting some standard macros where the workflow tends to sprawl. While converting a series of tools in Alteryx in to a standard macro, I noticed that a typical tool approach is yielding a completely different number of records than the standard macro equivalency.

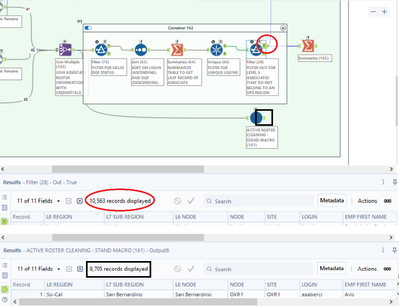

Discrepancy in record quantity being pushed from identical processes

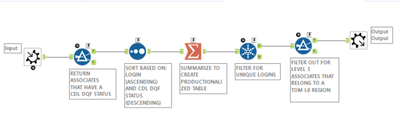

Standard macro setup:

Thank you for the help in advance!

Tonya_Smith · Answer

If you are using a Unique tool with AMP and expecting same records to be output, you should be sure to use the "Engine Compatibility Mode" underneath the "Use AMP Engine" checkbox in the Workflow-Configuration Runtime settings. That will trigger the AMP Engine to use the same sorting method as the original Engine. You may see a slight performance decrease, but it should still be faster than not using AMP.

Here are more links to content about AMP Engine:

•Help Documentation

https://help.alteryx.com/current/designer/alteryx-amp-engine

https://help.alteryx.com/current/designer/Alteryx-Engine-and-AMP-Main-Differences

https://help.alteryx.com/current/designer/AMP-Memory-Use

https://help.alteryx.com/current/designer/tool-use-amp

https://help.alteryx.com/20221/designer/engine-compatibility-mode

https://help.alteryx.com/20221/designer/performance-profiling-amp-engine

https://help.alteryx.com/20223/designer/engines-parity-utility

Server:

https://help.alteryx.com/current/server/controller#configuration

https://help.alteryx.com/current/server/worker

https://help.alteryx.com/current/server/engine

https://help.alteryx.com/20223/server/amp-engine-best-practices

•AMP Engine Webinar (32 minutes)

https://community.alteryx.com/t5/Analytics/AMP-Engine-Discover-the-Untapped-Performance-of-Your-Analytic/ba-p/727785

•AlterEverything Podcast

https://community.alteryx.com/t5/Alter-Everything-Podcast/66-The-Alteryx-AMP-Engine-Explained/ba-p/599058

•Community Blog posts

https://community.alteryx.com/t5/Analytics/Accelerate-Your-Analytic-Processes-with-the-New-AMP-Engine/ba-p/574809

https://community.alteryx.com/t5/Engine-Works/AMPlify-your-Workflows/ba-p/617590

https://community.alteryx.com/t5/Alteryx-Designer-Discussions/Best-practice-with-the-new-Multi-threaded-processing-AMP/m-p/603329#M134951

https://community.alteryx.com/t5/Engine-Works/AMP-Engine-Technical-Deep-Dive-Part-1-Why-AMP/ba-p/570964

https://community.alteryx.com/t5/Engine-Works/AMP-Engine-Technical-Deep-Dive-Part-2-Key-concepts-of-the-AMP/ba-p/611500

RogerS · Answer

Please add a browse after the macro in the workflow.  Sometime you need to have it connected to a tool to show all records for macros.

ridodson · Answer

@KSowers:  Unfortunately, the macro returns the same number of records in the macro's canvas environment as it does in the workflow itself.

@fmvizcaino: I'll compare each tool again. When I initially designed the standard macro for the workflow, I had copied and pasted the white containerized section (see above) directly in to the standard macro immediately following its macro input tool. The Macro Input tool was created after I inserted an Output Data tool after the J anchor from the Join. I then converted it to an Input Tool, then converted that in to a Macro Input tool so the workflow and the macro were dealing with identical data sets.
