Challenge #251: Lunacy

A solution to last week's challenge can be found here.

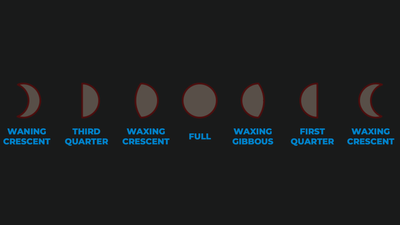

The word lunacy has its origins in the latin term for the moon (luna). For this week's challenge, we will embark on a little lunacy of our own and try to approximate the phases of the moon in Designer. Transform the 7 circles in the Input data file into polygons that resemble the assigned lunar phase in that row.

challenge_251_start_file.yxzp

challenge_251_solution.yxzp

Join

Spatial Analysis

Preparation

Advanced

Spatial

Difficult

Accepted answers

All comments

Kenda

Spoiler

Messy, but here it is...

251ks.yxzp

Struck

🙂

Spoiler

challenge_251_Struck.yxmd

patrick_digan

My crescents look better than my gibbous but I couldn't get it to look any better.

Spoiler

challenge_251_start_file.yxmd

phottovy

My gibbous moons could use some work but not terrible:

Spoiler

challenge_251_ph_solution.yxzp

ponraj

Here is my solution

Spoiler

challenge_251_solution.yxmd

DeanWest

I tried too hard to copy the output exactly which resulted in a massive workflow... Although, I did create a cool batch macro that will create the points of a circle to make it more dynamic.

Spoiler

challenge_251_solution_DeanWest.yxzp

RolandSchubert

Spoiler

challenge_251_solution_rsc.yxzp

atcodedog05

Here is my take on it. Definitely a fun challenge 😁

Spoiler

Cheers and Happy Analyzing 🙂

challenge_251_atcodedog05_Solution.yxzp

AkimasaKajitani

My solution.

Spoiler

challenge_251_start_file_AK.yxzp

Sashikumar

I to created my moon.

challenge_251_start_file_sk.yxmd

phoebe_kelley

I love spatial 🙂 This was really fun.

Spoiler

RichoBsJ

Hi! I ❤️ this challenge 🙂

Workflow:

Spoiler

Alpha angles:

Spoiler

Some notes:

Spoiler

challenge_251_richobsj.yxzp

DaisukeTsuchiya

It is interesting challenge!

Spoiler

challenge_251_start_file_DT.yxzp

jasperlch

Spoiler

challenge_251_JL.yxmd

jgv27

My first try to a weekly challenge. My crescents look better than the gibbous, but a good try nonetheless.

Spoiler

challenge_251.yxmd

mustel

Ended up taking me ages, got there in the end and really enjoyable task

Spoiler

challenge_251.yxzp

Declanh94

A great challenge!

Spoiler

challenge_251_DH_Attempt.yxmd

TonyA

I'm sure there is a simpler way to do this. Looking forward to checking out other solutions.

Spoiler

I really wanted to get the curves right so I did a bit of math to figure out the proper shape for the mask for the crescent and gibbous. I was a bit lazy and didn't put the calcs in the workflow, just used the mask offset and radius ratios that I calculated manually.

challenge_251_TonyA.yxmd

JonMcMillin

Spoiler

This challenge really stretched me, I don't often work with spatial data.

challenge_251_start_file.yxmd

OllieClarke

Tricky Challenge 🙂 not sure I have a particularly elegant approach - and it involved a bit of trial and error

Spoiler

challenge_251_OC_solution.yxzp

ggruccio

Very fun spatial challenge!

Spoiler

I had problems with some of the shapes until I realized it was the Earth's shadow I was cutting from the moon which may be larger. So experimented with radius and here is what I came up with. Also a bit messy workflow as I did each spatial process one at a time.

challenge_251_ggfinish.yxzp

BeginnerMindset

Spoiler

challenge_251_start_file JS.yxmd

glenperes

My solution:

Spoiler

Challenge 251 Lunacy Result.JPG

GP_challenge_251_start_file.yxmd

dsmdavid

This was fun, thanks for the challenge.
Not particularly happy with the long formula, but...

Spoiler

Quite a long formula

david_251.yxzp

mbogusz

Colorful moons here-- I think they came out good with the exception being the gibbous ones, which I will need to see the official solution for a better approach

Spoiler

Challenge #251 in the can

challenge_251_solution_mbogusz.yxzp

LHolmes

These challenges seem to be coming in the week after I do something very similar. Love utilizing the spatial tools! See spoiler for details.

Spoiler

The week before this came out I was having a go at modifying state polygons, particularly Alaska because it uses both sides of the world map and I needed to isolate the state to overlay it elsewhere. I used a similar method for the half moons in this challenge by splitting the polygon to points, using a browse to identify the points I wanted to keep and then sampling or filtering before rebuilding the sequence polygon.

The other four phases were done by translation and for the gibbous, additionally dilation, then using the spatial process tool to cut or intersect.

251 - Solution.PNG

challenge_251_solution_lmh.yxzp

JasonHu

Spoiler

Here is my solution for challenge 251, there must be a better way to solve it!

challenge_251_my_solution.yxmd

bmarx112

Spoiler

Tried two approaches... one using a sine function to model the 'altered' portion of each moon phase, and a second using the spatial process tool to 'cut out' the proper shape for each phase. approach 2 was closer to the provided output for the challenge.

challenge_251_Bmarx.yxmd

JennyMartin

Spoiler

Tricky but fun! Find my video solution here: https://www.youtube.com/watch?v=BEyYaFqrsww&list=PL18SpOXDj-KMUD4YwWC5vZaUsIa7drxNZ&index=55

AWC251.yxzp

balajilolla

Spoiler

Solution Attached

challenge_251_start_file.yxmd

JBevan89

Great Challenge. I followed others in this challenge to be honest

challenge_251_JB.yxmd
