hierarchy automation by Iterative macro

[Meghnagupta]

I have uploaded 1 file Hierarchy_Template which is Input file in this.

1st we have to put filter on Type = Profit center

Then we have the data which will pick ID.

Afterwards we need to pick "ID" column value say "74226" then we will pick it's Parent ID "43420" this will be hierarchy 1

and then we will search 43420 in "ID" column again and pick parent ID "43388" this will be hierarchy 2

again we will search "43388 in "ID" column and pick parent ID till we get P001

which searching till P001 we will remove filter of Profit Center

and then it will pick next "ID" after putting filter of Profit center

Is this possible in Alteryx?

Can someone help me creating this workflow?

[Kottapally_Ramesh · Accepted solution]

Attached is the workflow as per your requirements.

[Meghnagupta]

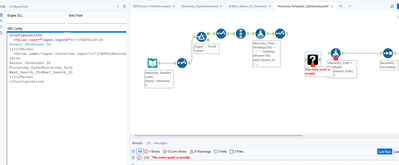

@binu_acs : could be very silly question, but when I try to individually place these files in my share drive and change base input file macro shows an error

How do configure this?

[binu_acs]

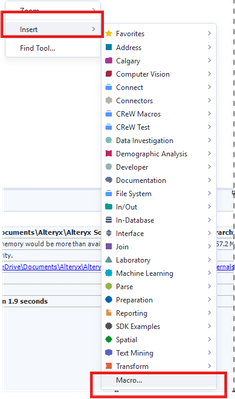

@Meghnagupta Save the macro in the shared drive, then in the Alteryx Designer canvas right-click and insert -> macro from the saved location

[Meghnagupta]

Thank you @binu_acs  @Kottapally_Ramesh  for your help!
accepted as solution for both. This has been a great help to me.

[Meghnagupta]

@binu_acs  : I again have a question question here

Say in Input file we add 1 more column naming "Description" in front of all the values.

How do we get that? Do we need 1 more macro for that? or changes in current macro will also work?

[binu_acs]

@Meghnagupta You don’t need a new macro, you can update the existing  macro to include the new field
