email tool error when trying to attach an excel file

Hi all,

I'm trying to send an email with an attachment but get the below error from the Email tool. I have made sure that the output Data tool is configured properly with my formula tool creating an 'xslx' file and have confirmed that the files are indeed in the folder. I've read a few discussions on this before but I'm not finding a solution just yet.

current set up in designer.

Developer Tools

Error Message

Accepted answers

All comments

DataNath

@sammyb84 can you show more of your configuration? Perhaps more screenshots or share your workflow? From the error message it looks like the file you're outputting and the one you're referencing as the email attachment are different - is this intentional?

sammyb84

Hi @DataNath ,

Below is the formula tool

the Output data tool

Below is the email configuration

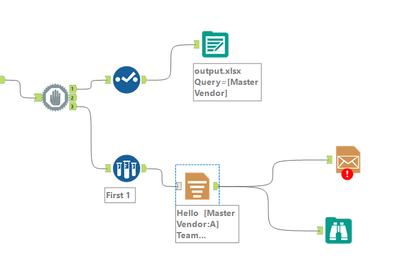

expanded view of workflow

Does this answer your question? I'm thinking your right here, with something in output is not syncing with email attachment

DataNath

Thanks a lot for that @sammyb84. So, from your Output Data tool it looks like you're creating an Excel file called 'Output', with the sheet name as '[Master Vendor]' (if you're wanting to reference the master vendor field, you'll need to generate this path in the formula tool as you are for your other path - you can't make it in the Output Data path configuration).

Then, in your email tool, you're referencing the path being created in your formula tool, which I can see is creating an excel for each [Master Vendor], with the sheet name as 'Sheet1' and so what you're outputting vs what you're referencing are totally different.

As you want to use the same file & location for your output/attachment, I'd just make a formula tool for each stream with the exact same expression and reference them both in the Output Data tool/Email attachment respectively.

sammyb84

That makes total sense @DataNath . Thank you.

Seems I am still getting error so I'm thinking still missing a step here. I've tried to eliminate nuances with spacing etc that might trigger errors.

Here is revised Output Data

Results pane from Output data

Error in Email tool

DataNath

Hmm, if the 2 paths are exactly the same then it might just be an issue with the file not being created by the time the email tool looks to attach it, even with the Block Until Done in place. If you move the email stream to anchor #2 instead of #3, does this help? If not, then it may be worth Rendering the Excel output to a temp location and referencing it as shown here: https://community.alteryx.com/t5/Alteryx-Designer-Discussions/Email-Output-Error-Need-Help-Please/td-p/515889

Christine_Assaad

Hi @sammyb84

Try to remove the sheet name from the path that will be used in the email tool, for attachment.

EX: Path to update output: c:\user\MasterVendor.xlsx|||sheet1

Path for Email to be used as attachment: c:\user\MasterVendor.xlsx

You can simply use a formula tool to create a second field for the attachment that replaces "|||sheet1" with nothing.

Hope that helps. Cheers!

gautiergodard

As an alternative, instead of outputting the data via output tool, you could create a temporary output which gets picked up by the email tool. Sharing the link below to give a detailed step by step as to how this can be done. Solved: How to send an email with a csv attached - Alteryx Community

With the Formula Tool, create a Filename with [Egine.TempFilePath] in front of it.

In Email Tool, Click on Attachments, and then the “Add” button.

And for the "Specifiy File" enter: %Engine.TempFilePath%YourFile.csv

The Temporary Directory is %Engine.TempFilePath% when used in a Tool’s Configuration for a File but when it’s in a Formula it’s [Egine.TempFilePath] . And since it's the Temporary Directory Alteryx will automatically delete it after your workflow has finished running.

sammyb84

@gautiergodard this would be handy if I didn't want to keep the files but in this case for now I believe we want to keep them. But good to know that this is an option.

Thank you for taking the time!
