Weird Excel Headers using Reporting

Hi Guys (and Girls)

Today, I was presented with this case:

Using the Reporting tools (a Table & Render), when I select Excel as the destination for the report, the Header names (Field names) are chopped or renamed (in HTML for example, they came out right).

In this case is something like this:

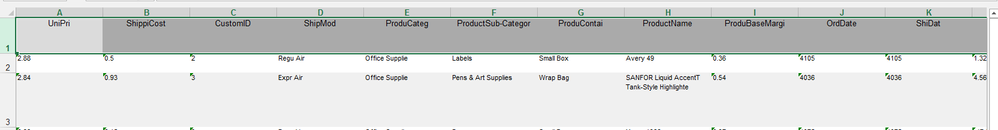

Excel Headers

I'm attaching the basic workflow.

Any help would be appreciated.

Thanks in advance

Excel with Reporting.yxmd

Reporting

Accepted answers

kane_glendenning

Hi Alberto,

This is a little strange behaviour. It seems that the render does not like the A4 page layout size (or Letter) when outputting to Excel. The quick fix that I got to work was to change the Paper Size to A3 or B3, however this would then fail if the data was larger than a normal A3/B3 sheet....

It looks like a bug, so would be worth sending to Client Services to be logged. I've attached a version that has data and can be run by anyone to test.

Kane

Excel with Reporting.yxmd

Joe_Lipski

Hi @Aguisande

I remember having this issue a few months back which my colleague @oliver_sayers and I investigated. I'm out of the office atm so hopefully he can advise you of the solution that we found.

Thanks,

Joe

oliver_sayers

Hi,

In the Render, under 'Report Style' select 'Custom Size' and then edit the size manually until all of the column headings fit.

Thanks,

Oli

oliver_sayers

Hi @aguisande,

Please see the attached photo for further guidance.

Thanks @joe_lipski

Oli

Doc1.docx

MargaritaW

Hola Alberto,

The reason is that your data has too many columns to be fit into the page width requested in the Render tool. The Render is meant to produce document for printing purposes (reports and such). As I would expect, your workflow is throwing a warning message "the current page layout will cause some data to be incorrectly truncated. You may consider modifying how the data is laid out"

If you want to output a larger amount of data with the Render tool, then you would have to change, as suggested, the paper size to custom and increase the page width (the first value), don't be shy increasing that number, it seems that 20 did the trick for your sample data, it depends on the number of columns, I've seen it increased over 140. I think it is working as designed so no cucaracha

Let me know if you want to discuss further.

All comments

kane_glendenning

Hi Alberto,

It looks like a bug, so would be worth sending to Client Services to be logged. I've attached a version that has data and can be run by anyone to test.

Kane

Excel with Reporting.yxmd

Aguisande

Thanks Kane,

I'll send this to Client Services / PRoduct team to be checked.

Thanks a lot for reviewing and putting the data into it (I really forgot).

Best,

_AG_

PS: I'll try with B3/A3 sizes to see what happens.

Joe_Lipski

Hi @Aguisande

I remember having this issue a few months back which my colleague @oliver_sayers and I investigated. I'm out of the office atm so hopefully he can advise you of the solution that we found.

Thanks,

Joe

oliver_sayers

Hi,

In the Render, under 'Report Style' select 'Custom Size' and then edit the size manually until all of the column headings fit.

Thanks,

Oli

oliver_sayers

Hi @aguisande,

Please see the attached photo for further guidance.

Thanks @joe_lipski

Oli

Doc1.docx

Aguisande

Thank you to all...

Even when we can workaround (thanks to your suggestions), is still a bug, right?

MargaritaW

Hola Alberto,

Let me know if you want to discuss further.

phoebe_kelley

I am also able to "fix" the truncated headers and data by making the paper size wider. But, I would like to not have the columns so wide and just have the smaller columns in excel with the headers and data wrapped. It still seems like a bug that the headers and data are truncated, is there a plan to fix this? I also do not get a warning when running the workflow that there is truncation happening, so if I hadn't looked at my output first there is no indication of lost data.

Ylin0615

I am experiencing same issue but, in my case, adjust file size didn't help, I already increase to 100...
