Tableau Output v1.3.1 Error "This Credential was created using a schema that's not curr...

Question

When using Tableau Output v1.3.1 and attempting to use a credential from DCM using the "Setup Connection" button, I get the error "This Credential was created using a schema that's not currently present on your system" error.  I have tried creating the credential on Alteryx Gallery and in Alteryx Designer then syncing.  Both methods throw an error.

Has anybody else had this error?  Most important, how do you fix this?

Tableau Output v1.3.1

Alteryx Designer v2022.3.508

Alteryx Server v2022.3.508

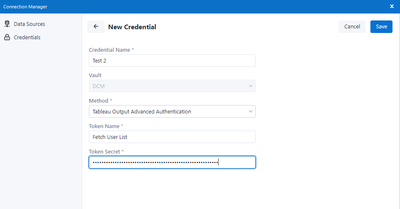

Step 1 - Create credential in Alteryx Designer

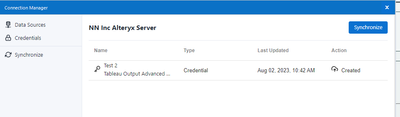

Step 2 - Sync credential with Alteryx Server/Gallery DCM

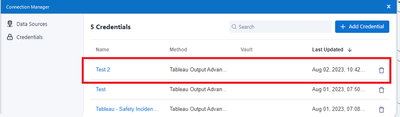

Step 3 - Select synced credential in Tableau Output v1.3.1 to "Setup Connection"

Step 4 - Get error which flashes so quickly, that I had to take a video of it and go frame by frame to see the error (and grab this screenshot).

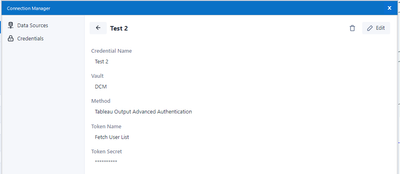

Step 5 - After the error flashes, the credential information is displayed, but no connection made

steven-barsalou-nninc · Accepted Answer

The issue here is that I had not defined the "data source" or linked the credentials to the data source.  When connecting with the Tableau Output tool, you should always select a data source first then a credential associated with that data source.  Alteryx could help avoid these errors with better UI design.  Force the user to pick a data source, then display any credentials to that data source.
