Storing number as text in the table (using the reporting tool)

SH_94
11 - Bolide

Hi Community,



I would like to ask if anyone encounter issue before when using the table tools instead of output data tools to present the final result.

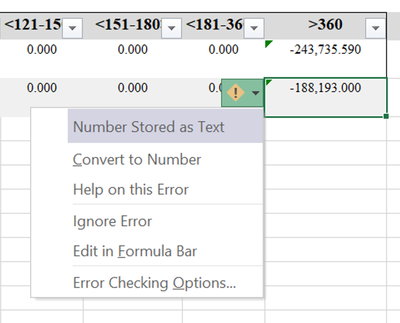

Currently, i had made the workflow and present the final result using the table tools as per screenshot below .However, it appear to be green triangle at the column >360. It is quite weird that it is stored as text for this particular two column only instead of storing it as number. Hence, i would need to manually convert it to number so that excel able to total the figures.





I also try to run the result using the output data tools and the problem does not exist. It seem like something wrong with the table . Among all the lines in the table, i have two cell column which have this issues ( storing the number as text).



May i know if anyone know how to fix this since it only have the issue at column >360.





Let me know if anyone need the workflow as the workflow built is quite complex.





3 REPLIES 3
danilang
19 - Altair
19 - Altair

Hi @SH_94



Can you post any column rules that you might have defined in your table tool?  Do any of these require a string column type?



Dan

SH_94
11 - Bolide

Hi @danilang ,

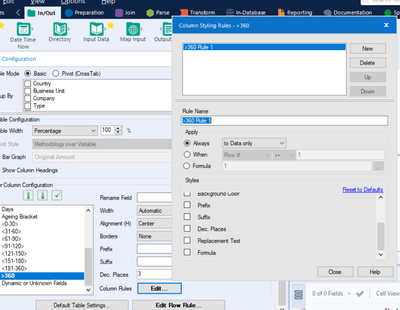

As requested, kindly find the screenshot below for your reference. As far as i know i didn't have any column rules and not sure if i accidentally edit some of the table rules or not.











Is the above screenshot is sufficient or what kind of information i would need to provide?



Thank you.

echuong1
Alteryx Alumni (Retired)

Can you add a Select right before the table? The fields are most likely set to a string format (vstring, string, etc.). Change them to a numeric field type such as Double.
