Splitting Excel File to multiple Outputs

jsilavong
8 - Asteroid

Hi,



I am looking to have an excel file with multiple sheets to be split into separate files for each sheet. If someone could provide a test workflow that I could adjust would be awesome.



Thanks,

Jon

12 REPLIES 12
JarekSkudrzyk
11 - Bolide

@jsilavong hi, you can create the path for file to write (in separate column of your dataset) and then use it in output tool:




Sebastiaandb
12 - Quasar

Hi @jsilavong



Here you go, this should work for you :-):



You basically feed the sheetnames to the batch macro that batches these sheets and outputs them to separate files :-).






Just make sure to change the paths and you're set to go :-)!



Greetings,



Seb



jsilavong
8 - Asteroid

Thanks @Sebastiaandb



When I download your workflow I only get the below... am I missing something?






alisonpitt
11 - Bolide

@jsilavong you can do this by using dynamic input, creating new filepaths and then outputting. Please see attached.



Essentially:

  • Use input tool to get a list of sheet names
  • Feed that into Dynamic Input using Field: Sheet Names
  • Parse out the tab name and build a filepath
  • Clean up :)
  • Output to multiple files using the filepath you built
Sebastiaandb
12 - Quasar

Hi @jsilavong



I added a new version that has relative paths so as long as you keep the TEST file in the same directory as the workflow/macro, you'll be fine (see attached)!













If you want to alter the old version, this is the way to do that:



You have to do a couple of steps to make it work in your environment :-):

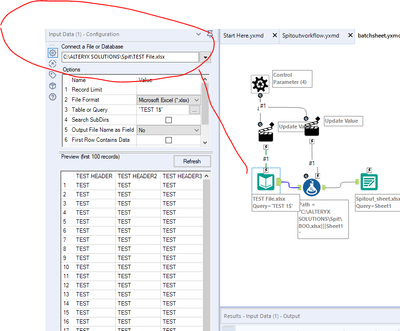

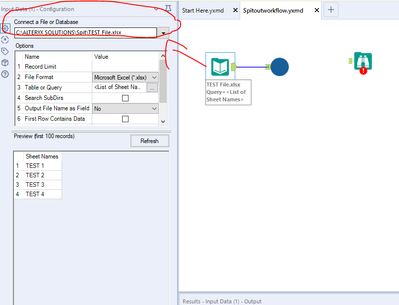

1) Change the path of the input tool to your local/network path:




2) Right click the  macro and click open macro, then change the path for the input tool again:

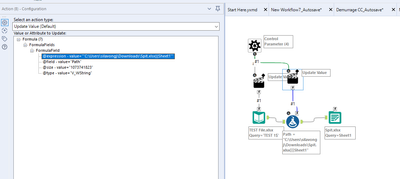

3) In the macro change the path in the formula tool to your own local drive/network drive:




4) Just to make sure, do the same for the output data tool:

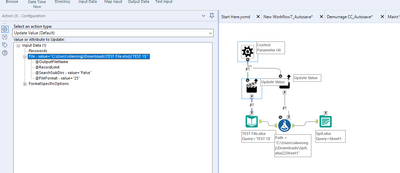

5) Just to make sure, check both action tools to see if the path is updated and still does the right thing:









Then press ctrl+s to save the macro and run the workflow again. It should work, the errors it dropped at your machine were purely because of the workflow/macro referring to my machine instead of yours.





jsilavong
8 - Asteroid

@Sebastiaandb



Thank you for clarifying. I was able to use the workflow successfully after adjusting the paths. My output from the test file though is not what I expected. Its combining all the sheet data from my input into one output file. I wanted to divide the input excel file by sheet into multiple files with only the sheet data on each.


















Sebastiaandb
12 - Quasar

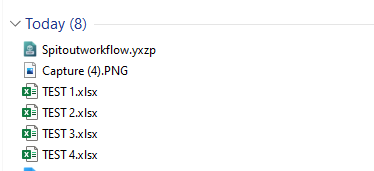

mmm @jsilavong, that's weird. For me it's spitting out multiple Excel's based on every sheet you have in your source like:









jsilavong
8 - Asteroid

@Sebastiaandb

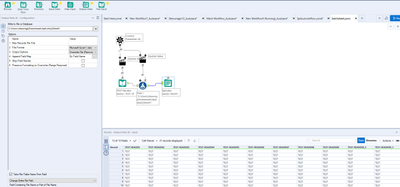

Do you see anything wrong with my attached?

Sebastiaandb
12 - Quasar

Hi @jsilavong ,



Yeah i found it!

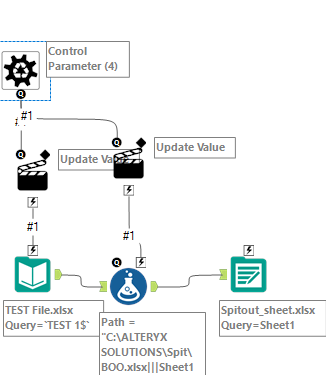

Open the macro and see:




It wants to replace "BOO" in the formula tool, that was the dummy i gave to the name of the Exceloutput to be replaced by a different name.

To work you need "BOO" in the formula tool as well like:




I'm sure it will work afterwards :-).



Greetings,



Seb
