Several file outputs with several sheets, with pre-assigned template

AlteryxPrime666
7 - Meteor

Hello Alteryx Community,



I have following dataset (the set could have N rows) which I should get outputted to Excel files, for which I have a pre-assigned template. I also need to get each department for their individual Excel file with pre-assigned with sheet for each team. So the outcome here would be two Excel files (HR and Marketing) with pre-assigned template and sheet for each team ( In HR file, there would be two sheets, in Marketing file one sheet and so on). Is this kind of trick possible with Excel output?



Thank's a lot in advance for answers!






2 REPLIES 2
binuacs
21 - Polaris

@AlteryxPrime666 This can be done in Alteryx.



1. For creating separate excel output file you need to create a path variable using a formula tool

2. To write into the pre-formatted template , check out the "Preserve formatting on overwriting options" in the output tool

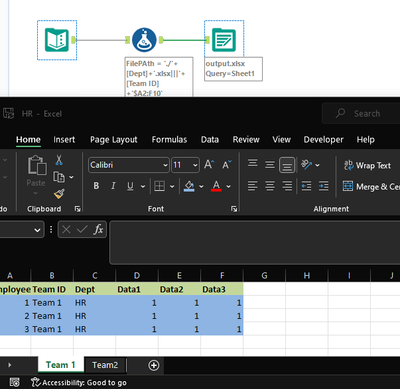

Attaching a sample workflow for your reference




AlteryxPrime666
7 - Meteor

Hello,



Thanks a lot for the answer. I understood the logic, but I keep getting this error:



Error: Output Data (3): Unable to Open archive for zipping: C:\Users\jacksmith\OneDrive\Desktop\Personel Data\Output Excels\output.xlsx'.\'HR.xlsx Can't open file: C:\Users\jacksmith\OneDrive\Desktop\Personel Data\Output Excels\output.xlsx'.\'HR.xlsx: The system cannot find the path specified. (3)

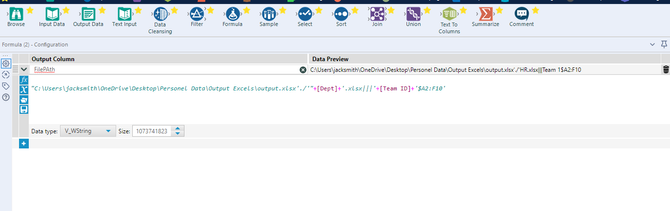

Here is my formula:




Do you know what could be the problem? Thanks a lot in advance!



EDIT: I have the workflow in the same folder as empty Excel file to which I want to write into.
