Regex Line Extraction

Hi there,

Can you help...I am trying to use RegEx in Alteryx useing key words to identify data i need to extract from a column.

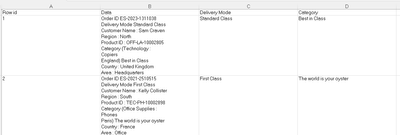

The picture below shows what i want......I want to.....

Extract the Delivery Mode in Column B to produce Column C
Extract the Category in Column B to produce Column D

...I have used things like reg101 and it does look to work online but when i try regex in Alteryx column C extracts the Delivery Mode but also includes all text after delivery mode which i do not want.

...Column D is a more complicated since Category has additional line spaces and I only want the line after its ")"

Can anyone help me on this....attached workflow to update 😀

Line Extraction Wanted.png

Regex Line Extraction.yxzp

RegEx Line Extraction.xlsx

Line Extraction Wanted.png

Regex

Data Investigation

Accepted answers

OllieClarke

Hi @DelData

I see you've already got some answers, but if you want a one tool/function solution then this RegEx in parse mode should do it:

Delivery Mode (.+?)\n.*\) (.+?)\n

this will capture whatever is on the line after Delivery Mode, and then whatever follows the final closing bracket (on the same line)

Hope that helps,

Ollie

RegEx.yxmd

All comments

Luke_C

Hi @DelData

Give these a shot:

Delivery Mode:

REGEX_Replace([Data], ".*Delivery Mode\s+([^\r\n]+).*", "$1")

.* → Matches everything before "Delivery Mode".
Delivery Mode\s+ → Finds "Delivery Mode" followed by one or more spaces.
([^\r\n]+) → Captures everything on that same line (i.e., the delivery mode, like "Standard Class").
.* → Matches everything after the captured value (but doesn't include it in the result).
"$1" → Returns only the captured part (i.e., "Standard Class").

Category:

REGEX_Replace([Data], ".*Category\s*\(.*\)\s*([^\r\n]+).*", "$1")

.*Category\s* → Looks for "Category" and allows optional spaces after it.
$.*$ → Matches everything inside the parentheses (we don’t need this part).
\s*([^\r\n]+) → Captures everything after the parentheses (i.e., the category name, like "Best in Class").
.* → Matches everything after the captured value (but doesn't include it in the result).
"$1" → Returns only the captured part (i.e., "Best in Class").

regex.yxmd

Pilsner

Hello @DelData

I have used the following two regex statements to extract the information you're after.

Delivery Mode: 'Delivery Mode (.*?)\n' This looks for everything after the words delivery mode, before the next new line.
Category: 'Category $.*?$\s(.*?)\n' This looks for the word 'Category', then finds the set of brackets, and extracts the text, after the')' bracket, before a new line.

Screenshot 2025-04-03 133036.png

As I used two separate regex tools (both set with the parse output method) I had to join the data back together.

I have attached the workflow I used below. Please let me know if you have any questions.

Regards - Pilsner

Regex.yxmd

DelData

Perfect....this works exactly as i wanted......I need to practice RegEX more.......thank yuu for taking time out to help 👍

DelData

Perfect....another great solutions and works exactly as i wanted......I need to practice RegEX more.......thank you for taking time out to help 👍

Luke_C

Great to hear! Regex looks like an alien language at first, but definitely an invaluable skill to invest time to learning.

OllieClarke

Hi @DelData

I see you've already got some answers, but if you want a one tool/function solution then this RegEx in parse mode should do it:

Delivery Mode (.+?)\n.*\) (.+?)\n

this will capture whatever is on the line after Delivery Mode, and then whatever follows the final closing bracket (on the same line)

Hope that helps,

Ollie

RegEx.yxmd

DelData

Thanks Ollie......this is another great example.....i can see benefits of knowing more on RegEx 😀
