Parse XML question

Hi, I'm trying to parse XML that I'm getting as a response to an API call. The structure of the XML is the following for each row of data:

<Results>
	<Properties>
		<Property>
			<Name>First_Name</Name>
			<Value>Phil</Value>
		</Property>
		<Property>
			<Name>Date_of_Application</Name>
			<Value>01/01/2000</Value>
		</Property>
	</Properties>
</Results>
<Results>
	<Properties>
		<Property>
			<Name>First_Name</Name>
			<Value>Joe</Value>
		</Property>
		<Property>
			<Name>Date_of_Application</Name>
			<Value>01/01/2000</Value>
		</Property>
	</Properties>
</Results>

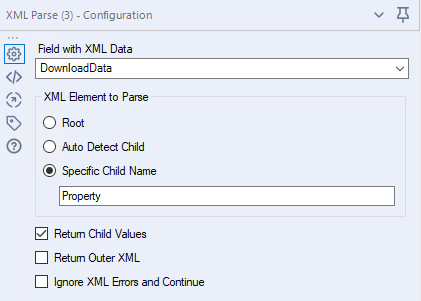

Using the XML parse tool with the following settings ...

I'm getting back data that in this format ...

Name	Value
First_Name	Phil
Date_Of_Application	01/01/2000
First_Name	Joe
Date_Of_Application	01/01/2000

However what I'm after is data in this format ...

First_Name	Date_Of_Application
Phil	01/01/2000
Joe	01/01/2000

I've tried stringing together multiple parse XML tools with just about every combination of Child name/values but I'm not able to figure it out. Any suggestions?

Parse

Transformation

API

Accepted answers

T_Willins

Hi @DSnyder1,

Sometimes it is difficult to get the XML to parse exactly as you want it. Utilizing other Alteryx tools as below will give you the result you are looking for.

Cleanse XML parse.png

Cleanse XML parse.yxmd

All comments

T_Willins

Hi @DSnyder1,

Sometimes it is difficult to get the XML to parse exactly as you want it. Utilizing other Alteryx tools as below will give you the result you are looking for.

Cleanse XML parse.png

Cleanse XML parse.yxmd

fmvizcaino

Hi @DSnyder1 ,

Would you be able to share a small sample of you file in xml format?

Then I can check it out and try to solve it 🙂

Best,

Fernando Vizcaino

DSnyder1

Thanks @T_Willins, this worked perfectly.
