PCXML not an option in Render tool

I have found instructions here in the community for rendering report data to the application completion screen in Gallery. Instructions say to choose PCXML as the Output. I am running 2019.1 and I do not see that as an option. Did that get replaced by something that has the same capability?

Reporting

Accepted answers

Hi @eliberatore

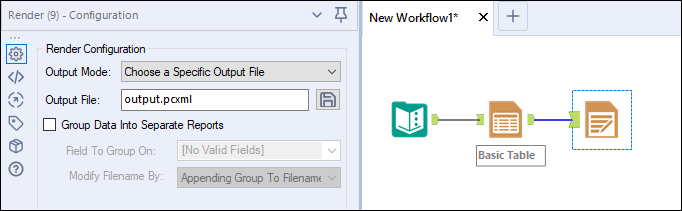

In your Render tool, set the "Output Mode" to "Choose a Specific Output File". This will enable the "Output File" field. Type in whatever you want to name the file followed by ".pcxml". Be sure to NOT include any path reference or else it will not display (".\filename.pcxml" is OK too).

And for reference, "Composer" = "pcxml", but don't choose "Temporary Composer File" as that won't render in the results on Gallery.

Hope this helps!

Jimmy
Teknion Data Solutions

All comments

Hi @eliberatore

In your Render tool, set the "Output Mode" to "Choose a Specific Output File". This will enable the "Output File" field. Type in whatever you want to name the file followed by ".pcxml". Be sure to NOT include any path reference or else it will not display (".\filename.pcxml" is OK too).

And for reference, "Composer" = "pcxml", but don't choose "Temporary Composer File" as that won't render in the results on Gallery.

Hope this helps!

Jimmy
Teknion Data Solutions

@eliberatore You can write it out as a Temporary Composer file aka pcxml. 🙂

That option is not displaying it in server

Thank you for this legendary solution. It worked for me on my company's server.
