Non overlapping Trade Areas of different sizes
- Subscribe to RSS Feed
- Mark Topic as New
- Mark Topic as Read
- Float this Topic for Current User
- Bookmark
- Subscribe
- Mute
- Printer Friendly Page
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
I have built a workflow that dynamically sets trade area radii based on an average of how far people drive to a given store. I know there is an option to "eliminate overlap" in the TA tool, but that only works if the radii are the same.

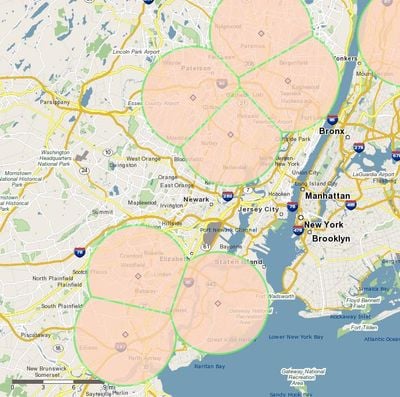

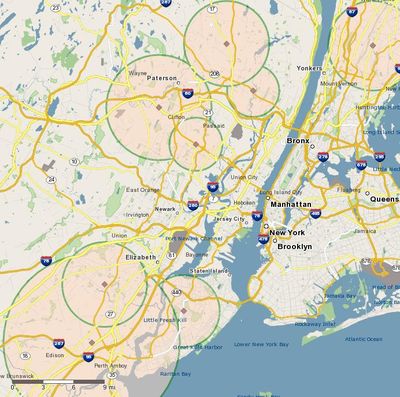

Below are 2 images demonstrating my issue. The image on the left is an example of what I'm trying to accomplish (but with my dynamic TA radii). On the right you can see what my TA's look like.

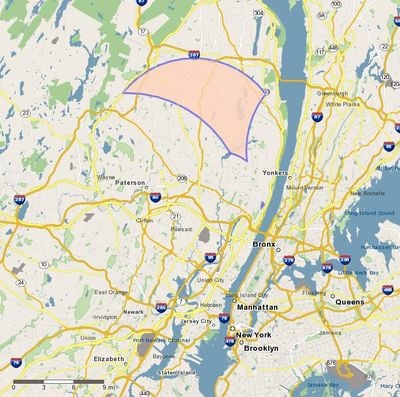

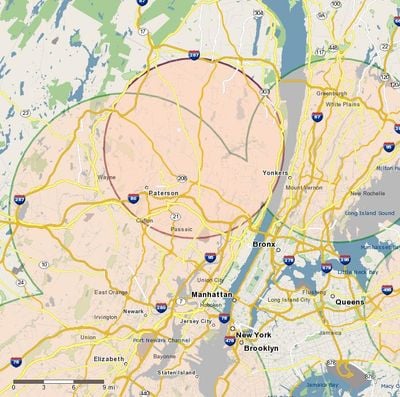

As one work around I thought about summarizing all TA objects (excluding the TA for that specific record) into a separate single object so I can do a Spacial Process to separate them, but that didn't work because it created an area of intersection that drops off. See example below.
Any other creative ideas or hacks for achieving this? Maybe there is a tool that does this already that I'm not aware of. Unfortunately the non overlapping drive time won't work for me, but that type of functionality is what I'm hoping to achieve.
Thanks,
Mike
Solved! Go to Solution.
- Labels:
- Spatial Analysis
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Wow, this is a great idea. Thank you Phillip. I will review your workflow and see if I can apply it to mine.
Thank you for the reply and for taking time to dig into this!!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
I see. Three overlapping areas are throwing it off. Let me think how to overcome this problem.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
This may require the brilliance of @Ned to solve.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
@mstern I'm no spatial guru, but the attached seems to work on your sample data. I used a spatial match, filtered the data down, and then used a spatial process tool to cut out the intersections that need to go.
Hope that helps!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
@patrick_digan, Thanks for your effort on this as well. Unfortunately I'm not sure I'm getting the result I expected, but I'm not sure if that's an error on my end, or a misunderstanding of what I'm trying to achieve. Can you include a screenshot of what you got as a result of your workflow?
I really appreciate you taking some time to look into this too!
Thanks,
Mike
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
@mstern No worries. From the incoming data, I have the SpatialObj points and I also used the SpatialObject_TradeArea circles. You can see that the circles are overlapping originally:
Now at the end of my workflow, I still have my SpatialObj points, and then I have my Non-Overlap Trade Area circles that I created so that there is no overlap of the circles:
In the configuration panel on the top left, I'm only selecting certain spatial objects to show/map since I was lazy and didn't get rid of unused objects. The way I know to visually identify that they're not overlapping is by clicking on them on seeing that nothing is opaque.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
@patrick_digan Thanks Patrick. Your response makes sense, but I'm trying to do something slightly different. The screen shot I posted this morning is more what I'm trying to accomplish. Yes, I don't want the overlap, but I also want the areas between the stores to be split in a straight line based on the TA intersections.
Here is another example using the workflow Philip provided... On the left you can see what the current result is. One the right I quickly (and poorly) photoshop'd something closer to what I'm hoping to achieve. Philip's workflow is very close, it just has trouble when more than 2 stores are intersecting in the same area.
