Need Help in creating Chart

mohit9garg
8 - Asteroid

Hi,



Need help in creating a chart. Example is attached herewith.



Regards

Mohit

2 REPLIES 2
mohit9garg
8 - Asteroid

@grossal



Hi Alex, could you please help me.



thanks

grossal
15 - Aurora
15 - Aurora

Hi @mohit9garg,



thanks for the tag and the trust 😃😃



The key here is to transpose the data into the right shape before pumping them into the Interactive Chart:




The data might look odd at the first moment ...

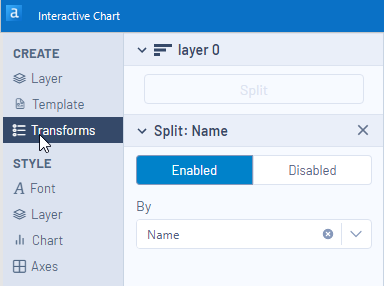

But this helps us a lot, because we have only one value column and can split the data with the Transform Option.




The Charts look like this now:







I am struggling to get the labels inside the bars. I can display one at a time, but as soon as I enable another one, the first one disappears. I think this might be a bug in my current version. I'll grab a different computer later on and test if I have the same behavior there.



I'll attach the workflow for you, feel free to take a look. Maybe the labeling isn't buggy in your version and you could give it a try.





Best

Alex









Labels
