Hi Alteryx Community!
I am getting a database (csv format) where all information is stored on 4 columns:
Tag# | Time-Stamp | Value | Data Quality |
Tag#1 | 09:00 | 10 | OK |
Tag#1 | 10:00 | 11 | OK |
Tag#1 | 11:00 | 10,5 | OK |
Tag#1 | 12:00 | 0 | NOK |
… | | | |
Tag#2 | 09:00 | 9 | OK |
Tag#2 | 10:00 | 9,5 | OK |
Tag#2 | 11:00 | 0 | NOK |
Tag#2 | 12:00 | 9,1 | OK |
… | | | |
Tag#3 | 09:00 | 100 | OK |
Tag#3 | 10:00 | 105 | OK |
Tag#3 | 11:00 | 102 | OK |
Tag#3 | 12:00 | 103 | OK |
.. | | | |
I would like to break the file so that I can get:
Time-Stamp | Tag#1_Value | Tag#1_Data_Quality | Tag#2_Value | Tag#2_Data_Quality | … | … |
09:00 | 10 | OK | 9 | OK | 100 | OK |
10:00 | 11 | OK | 9,5 | OK | 105 | OK |
11:00 | 10,5 | OK | 0 | NOK | 102 | OK |
12:00 | 0 | NOK | 9,1 | OK | 103 | OK |
I have more than 500 tags listed in the 1st column of the original file and approx. individual 3000 values for each of them so automating the whole process would be nice ^^

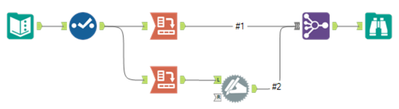

I have designed a simple workflow which is giving me:
Time-Stamp | Tag#1_Value | Tag#2_Value | Tag#3_Value | Tag#1_Data_Quality | Tag#2_Data_Quality | … |
09:00 | 10 | 9 | 100 | OK | OK | OK |
10:00 | 11 | 9,5 | 105 | OK | OK | OK |
11:00 | 10,5 | 0 | 102 | OK | NOK | OK |
12:00 | 0 | 9,1 | 103 | NOK | OK | OK |
But…
1) I believe there might be a simplest way to do it?
2) I need to have Tag#_Value and Tag#_Data_Quality close from eachother for a later process
I am attaching the sample workflow, maybe some of you will have an idea :-)
Thanks,
Pierre-Loui
