'Merge' the common parts of Spatial Objects

Question

Hi,

I have the spatial objects for an area near the coast and the coastline near the shape.  I wanted to 'combine' the 2 to produce an area that follows the coastline for the appropriate section as shown in the output image attached.  I have attached the files needed with the raw data and also a workflow showing not only how not to do it but also how it is possible with manual intervention but this is not the ideal solution.

Can the workflow be rewritten so that the amount of coastline is automatically trimmed to fit the other shape?

I am not too precious how this is done - formula or tools - but it would be interesting to prove that it could be.

Many thanks for any solutions, help or pointer.

Kind regards,
Peter

20230405 - PV - Area.xlsx

20230405 - PV - Coast.xlsx

20230405 - PV - Spatial Combine Problem.yxmd

20230405 - PV - Output Pic.png

20230405 - PV - Close Up Pic.png

PVousden121 · Answer

Ben,

Files per my DM.

Kind regards,

Peter

20230412 - PV - Polygon Creation Ordering.xlsx

20230412 - PV - Polygon Creation Ordering2.xlsx

20230413 - PV - Poly Build Ordering Issue.yxmd

Ben_H · Answer

Hi @PVousden121,

This should suit your purpose I think.

You could stick this in a macro and have it apply to each set of inputs you send in.

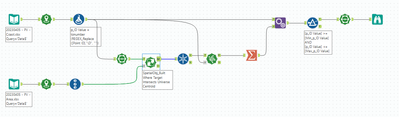

I've just intersected the coast line with your area points, made them unique based on long lats. Then found the nearest individual coastline point to get Point ID for min/max values. Then you just append on to the original set of points and say point Id >= to min, <= to max.

This should work fine if your area points always intersect with the coast line, if not you might have to do a bit more with it but the broad method should still work.

Regards,

Ben

20230406 - PV - Spatial Combine Problem - Solution.yxmd

PVousden121 · Answer

Hi,

That's an amazing approach so thanks for taking the time to look into it for me.

The only issue with the proposed solution is that you have 'selected' and hard coded in some points which I need the process to identify on its own - your point 1 and 8.  Is it possible to make it truly dynamic so if I change the area's point order the solution just "adjusts"?

Many thanks again,

Peter
