Matching Items Across Input Files with Duplicate Items

hannah1818
6 - Meteoroid

Hello,



I was looking around the community here for a solution to see if someone encountered something similar. I see it in bits and parts and I was hoping someone could help on the below ask:



The goal is to try to match items across 2 reports using the description, currency and amount. I think we can use the join tool but am struggling with how to link them together since we want to match the amounts based on Description, Currency & Amount. Also if there are extra items in either report after the netting off process, with the same description/currency/Amount how can I set up the workflow to indicate these items as extra items via output?



I've indicated below an example and expected result of what I'm trying to achieve.



Really appreciate any guidance



Example Data
Report One Report Two
Description CurrencyAmount Description CurrencyAmount
Meal ExpenseCAD5.57 Meal ExpenseCAD5.57
Transportation ExpenseUSD10 Transportation ExpenseUSD10
Transportation ExpenseCAD10 Transportation ExpenseCAD10
Transportation ExpenseUSD10 Travel ExpenseCAD15.34
Miscellaneous CostCAD9.22





Expected Result - 3 Outputs

1. Matched Items

Report One Report Two
Description CurrencyAmount Description CurrencyAmount
Meal ExpenseCAD5.57 Meal ExpenseCAD5.57
Transportation ExpenseUSD10 Transportation ExpenseUSD10
Transportation ExpenseCAD10 Transportation ExpenseCAD10

2. Unmatched Items Report One
Report One
Description CurrencyAmount
Transportation ExpenseUSD10
Miscellaneous CostCAD9.22

3. Unmatched Items Report Two
Report Two
Description CurrencyAmount
Travel ExpenseCAD15.34



5 REPLIES 5
OTrieger
14 - Magnetar

@hannah1818
Hello Hannah,
You wrote what is the answer using Join Tool. You can set several criteria for the join. You an add as many as you want, in your case you will need 3. L Currency R Currency, L Amount R Amount and L Description R Description
L you have the unmatched from L side
J you will get the Matched items
R you will have the unmatched from R Side

OTrieger
14 - Magnetar

So now you will have 3 outputs, 1 from L, one from R and one from J.

hannah1818
6 - Meteoroid

Thank you! That really helps with setting the multiple criteria. The only thing is that for instance with the "Transportation expense"  I want the extra item from report 1 that is not matched with report 2 to be indicated as not matching as well. Currently its showing as matched since it has the same Description/ Currency/ Amount with another items in the same report. Is there a way to indicate that the amount is still unreconciled?

lwolfie
11 - Bolide

Did you figure this out?  I would suggest a record ID based on the combination of the 3 columns.  Then when you match on RecID, and the first 2 columns, the extra row will fall out.

PangHC
13 - Pulsar

agreed, add 1 more criteria to differentiate the duplicate item. tile tool is good to use here.

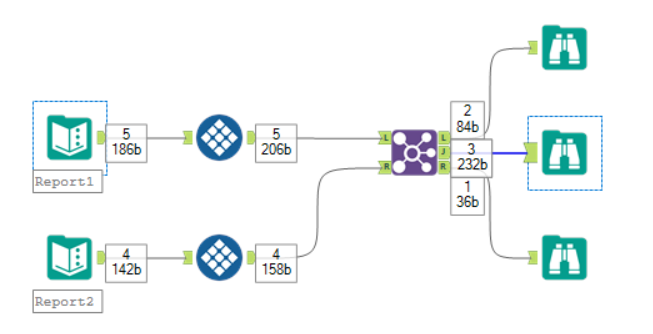

Screenshot 2025-09-09 100323.png
