Hi, I have an issue with with macro, where I have attached an input file going in and a browse tool coming out and I run the workflow and everything is great. However, when I try to attach another tool such as a select or union, they can't seem to find the fields. I have a couple more macros on other workflows and they seem to work fine. I have spent a few hours trying to figure this out and can't pinpoint it. If I go into the macro and run the workflow then I do get one warning, but only for a column with a duplicate name, which I remove with the next tool anyway.
Anybody have any idea what could be causing this. Apologies, I can't share the workflow as it contains sensative data

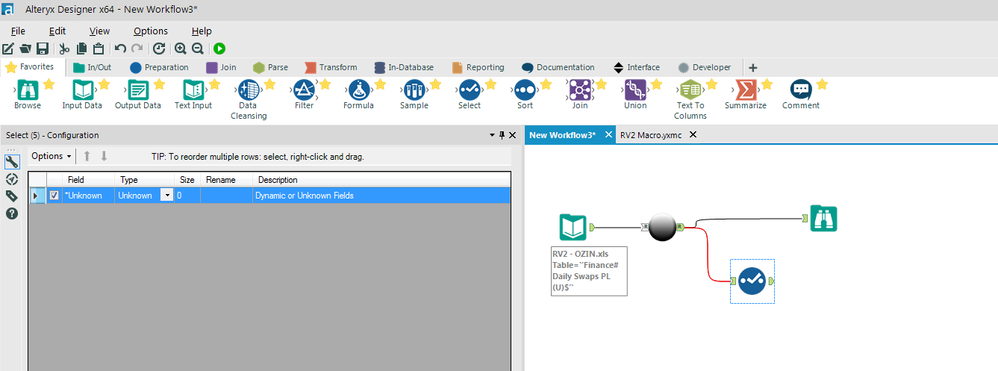

The tool doesn't recognise the fields
Works fine - Display's fields

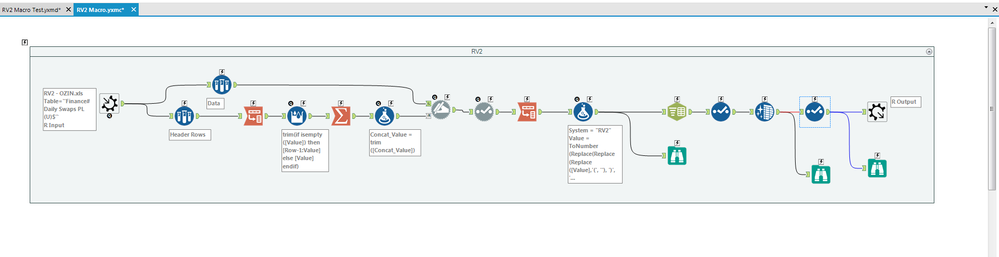

Macro workflow
Solved! Go to Solution.
- Labels:
- Help
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
I think may have resolved this. It looks like the issue is with the data cleansing tool being the last thing in the macro workflow. I have added another select tool and it appears to work fine now.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Thanks for this. I've just experienced the exact same issue with the Data Cleansing tool as the last element before the Macro Output in Alteryx Designer 2018.1.3.42973 - must be a bug...
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Alteryx is aware of this issue. You are exactly correct that you can add a Select tool just before your Macro Output. That will restore transfer of the metadata and error-free operation.
Principal Support Engineer -- Knowledge Management Coach
Alteryx, Inc.
