Larger Number below smaller number on bar chart

Hi,

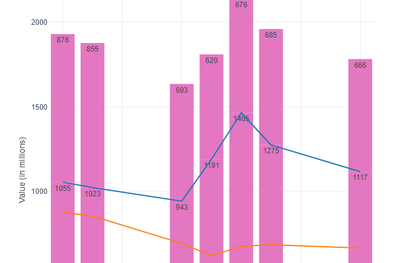

My bar chart shows the lower value higher,,,i want to make the bars transparent cause i want to place values close to my lines

How do i seq it in correct way?

Date	Vehicle	Name	Value
23-06-22	Bus	EUR	1055
23-06-22	Bus	USD	876
24-06-22	Bus	EUR	1023
24-06-22	Bus	USD	855
27-06-22	Bus	EUR	943
27-06-22	Bus	USD	693
28-06-22	Bus	EUR	1191
28-06-22	Bus	USD	620
29-06-22	Bus	EUR	1465
29-06-22	Bus	USD	676
30-06-22	Bus	EUR	1275
30-06-22	Bus	USD	685
03-07-22	Bus	EUR	1117
03-07-22	Bus	USD	666

Workflow

Help

Accepted answers

DataNath

Sorry for the late response @clarrock - haven't been on my laptop until now. How does this look? May just need some tweaking to get the sizing etc right.

Labelled dual line chart.yxmd

All comments

DataNath

@clarrock at the moment it’s showing the right order because your data set is in date order and you haven’t split it on the currency and so for each day it’s showing the total or both currencies. If you want to split these out you can go to batch > on > columns to group by > group by currency. If you want the graph to purely be in order of value rather than date, you can just add a sort tool before your interactive chart tool and sort on value (ascending if you want smallest to largest, descending for largest to smallest). Off the top of my head I can’t remember if it is there/where, but transparency would likely be in the ‘layer’ tab for your bar chart.

clarrock

@DataNath thanks for your response, i have tried the sort option but i want to keep the dates since with the sort it actually messes up the line graph. Is there a way to have a line graph for currencies (both) with the x axis being the "Date" and the y axis being the "Value" but the values being placed on the lines without creating a bar chart and making it transparent?

DataNath

I think I remember seeing that only bar and pie charts constantly show the values so I think you do need to keep this for the work around. In the bar chart layer though you should be able to change the opacity to 0% which will hide it. May be worth suggesting it as an idea for the devs to add - if nobody has already - and if enough people show support they may look to add it as a feature.

clarrock

@DataNath So i guess theres no solution cause if i keep opacity to 0% it will still show the order incorrectly. and if i sort it my line graph would be incorrect.

Is there a way i can have the bar chart for both the currencies say eur sep and usd separate like a dual bar chart and then a line graph for the mid points of the bars? Would that be possible in Alteryx? Or is there an alternative way that you suggest i shd present this data graphically?

DataNath

@clarrock you could use a Summarize tool to group on date and get the average for each day, then join it back to the original dataset and then set up multiple layers to have the average as a line chart. To split the labels you’d need to batch the bar chart layer and group it on currency and before the interactive chart tool you’d need to sort by date ascending and then by value either ascending or descending depending on what you want. I personally use Tableau for reporting/BI and so I’d always just prep my data in Alteryx and then use a separate tool for building charts etc but I think if you’re stuck with just Alteryx then using the above and maybe playing around with various settings to fine tune it may be the best.

clarrock

@DataNath I'm not able to get the output, new to the interactive chart tool..could you share a workflow perhaps?

DataNath

Sorry for the late response @clarrock - haven't been on my laptop until now. How does this look? May just need some tweaking to get the sizing etc right.

Labelled dual line chart.yxmd
