In Alteryx 2018, how do you create a Stacked Bar Chart with the Insight Tool?

Hi All:

In Alteryx 2018, how do you create a Stacked Bar Chart with the Insight Tool?

Thanks,

ksmith1395

Reporting

Accepted answers

Hi Charlie:

Thanks so much for the confirmation. I am using the 2018 version which apparently does not support creating stacked bar charts. I will keep your 2019 instructions to use when we move to the 2019 version.

Regards,

ksmith1395

All comments

What version of Alteryx Designer are you using? Stacked bar chart functionality was added in 2019.1.

https://help.alteryx.com/ReleaseNotes/Designer/Designer_2019.1.htm

Here's the instructions from the Insight tool documentation:

https://help.alteryx.com/current/Insight.htm

To create a stacked bar chart:

1. Run the workflow.
2. Click Configure Chart in the tool configuration window.
3. Under Create > Layer, click Add Layer.
4. Select the chart Type of Bar.
5. Select columns to use as the values for the X and Y axes.
6. Under Create > Transforms, click Split.
7. Select the column to split the data on.

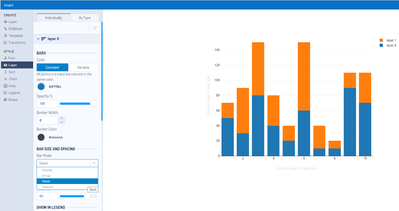

8. Under Style > Layer, select Stack from Bar Mode.

Hi Charlie:

Thanks so much for the confirmation. I am using the 2018 version which apparently does not support creating stacked bar charts. I will keep your 2019 instructions to use when we move to the 2019 version.

Regards,

ksmith1395
